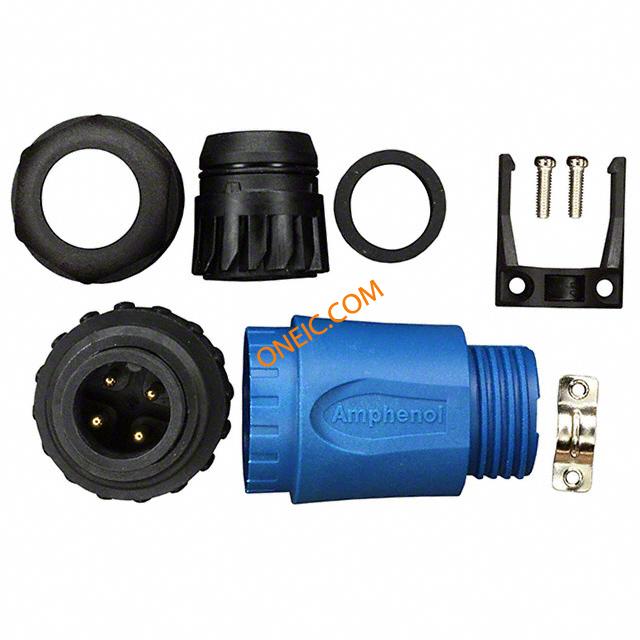

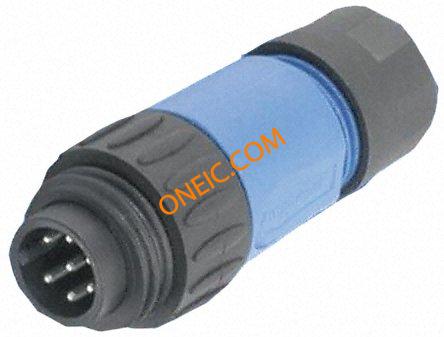

C016 20H003 210 10
| Manufacturer | |
| Description | Circular DIN Connectors 3+PE MALE STRT BLUE SCW GLD INT ST RELF CONN MALE PLUG 3+PE GOLD BLUE 4 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts PLUG, FREE, SCREW, AU, 3P+E WAY connector, plastic circ, str male cable conn, 3+gnd gold plt cont, screw term, blue Amphenol Eco-Mate 系列 3 + PE路 电缆安装 直向 连接器 插头 |
| Category |
Business
| Product Category | Circular DIN Connectors | Standard Package | 250 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85389099 | Approval Agency | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE |
| Approval Agency Marking | UL Recognized/CSA/VDE | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 400 V | Contact Resistance | :5mohm |
| Voltage - Breakdown | :6000V | Current Rating (Max) | 16 A |
| Insulation Resistance | :10Mohm | ||
Mechanical
| Color | Blue | Weight | 0.041 |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | :14AWG | Orientation | Keyed |
| Shell Style | Plug | Termination | Screw |
| Weight (g): | 42.58000 | Contact Type | Pin |
| Mounting Type | Free Hanging (In-Line) | Release Force | :30N |
| Angle of Throw | Straight | Cable Diameter | 6-12.5 mm |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Package / Case | :Straight | Connector Usage | Threaded |
| Insertion Angle | :- | Insertion Force | :15N |
| Material - Body | :Nylon (Polyamide) | Contact Material | :- |
| Housing Material | Polyamide | Primary Material | DIN |
| Termination Style | Screw | 1st Contact Gender | Male |
| Color - Connectors | :Blue / Black | Number of Contacts | 4 |
| Contact Termination | :Screw | Dielectric Material | Polyamide |
| Number of Positions | 4 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide | Contact Layout, Typical | 3 + 1 Ground (PE) |
| Exterior Housing Material | :Polyamide 6.6/PA6 | Wire Gauge or Range - mm2 | :2.5mm² |
| 1st Connector Mounting Type | :Cable | Diameter - Outside, Non-Expanded | :12.5mm |
Product Info
| Type | Cable Plug | Gender | Male |
| Series | :ECOMATE | Features | Cable Clamp, Strain Relief |
| Manufacturer | C016 Series | Product Type | Connectors |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Mating Cycles | :500 |
| NEMA Frame Size | :IP67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
