C016 20H003 800 17
| Manufacturer | |

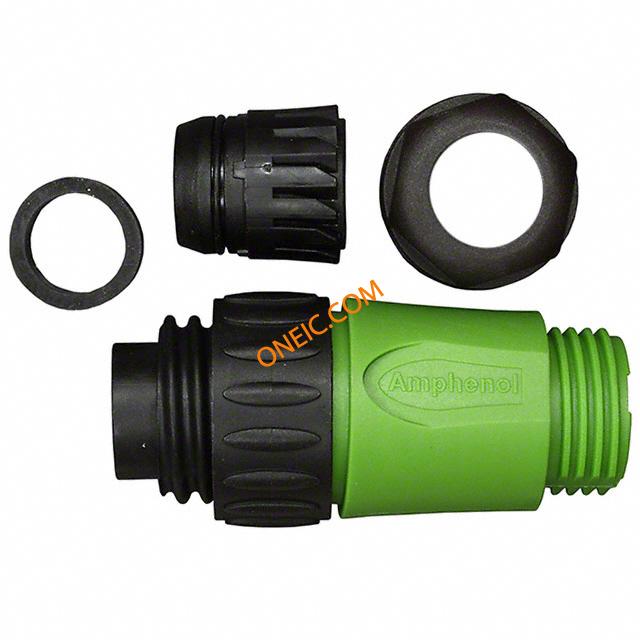

| Description | CONN BACKSHELL FOR ECOMATE GREEN |
| Category |
Business
| Standard Package | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 400V | Current Rating (Max) | 16A |
Mechanical
| Packaging | Bulk | Orientation | Keyed |
| Termination | Screw | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins | Fastening Type | Threaded |
| Number of Positions | 4 | Shell Material, Finish | Polyamide |
Product Info
| Features | Cable Clamp | ||
Environmental
| Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof | Operating Temperature | -40°C ~ 100°C |
