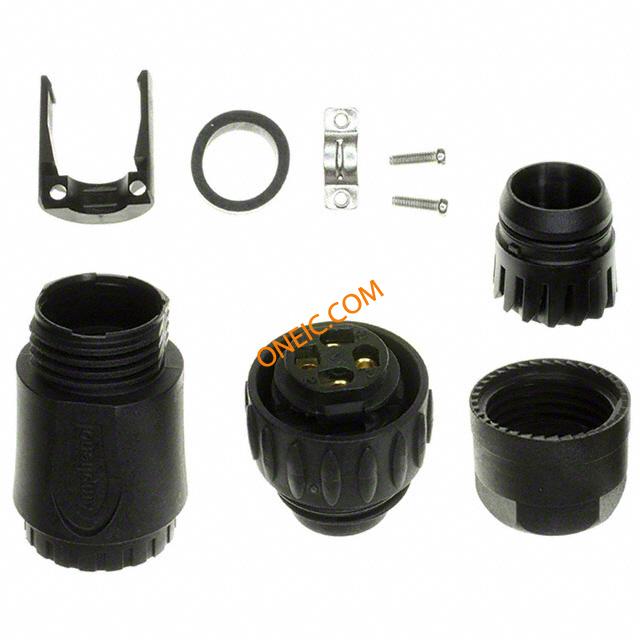

C016 20H003 210 12
| Manufacturer | |
| Description | Circular DIN Connectors 3+PE MALE STRT BLK SCW GLD INT ST RELF CONN MALE PLUG 3+PE GOLD BLACK connector;plastic circ;str male cable conn;3+gnd gold plt cont;screw term;black CONNECTOR, CIRCULAR, PLUG, 3+PE, CABLE connector, plastic circ, str male cable conn, 3+gnd gold plt cont, screw term, black |
| Category |
Business
| Product Category | Circular DIN Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency Marking | UL Recognized/CSA/VDE | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 400V | Voltage - Supply | DIN |
| Current Rating (Max) | 16A | ||
Mechanical
| Color | Black | Weight | 0 |
| Packaging | Bulk | Cable Exit | Internal |
| Wire Gauge | 20-14 | Orientation | Keyed |
| Shell Style | Plug | Termination | Screw |
| Weight (g): | 41.66000 | Contact Type | Pin |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Cable Diameter | 6-12.5 mm | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Package / Case | Plastic |
| Connector Usage | Threaded | Insertion Angle | :- |
| Material - Body | :Nylon 6.6 (Polyamide 6.6) | Housing Material | Polyamide |
| Primary Material | DIN | Termination Style | Screw |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 3 |
| Dielectric Material | Polyamide | Number of Positions | 4 |
| Shell Material, Finish | Polyamide | Contact Layout, Typical | 3 + 1 Ground (PE) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Cable Plug | Gender | :Plug |
| Series | :Ecomate | Features | Cable Clamp, Strain Relief |
| Manufacturer | C016 Series | Product Type | Connectors |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
