点击放大查看

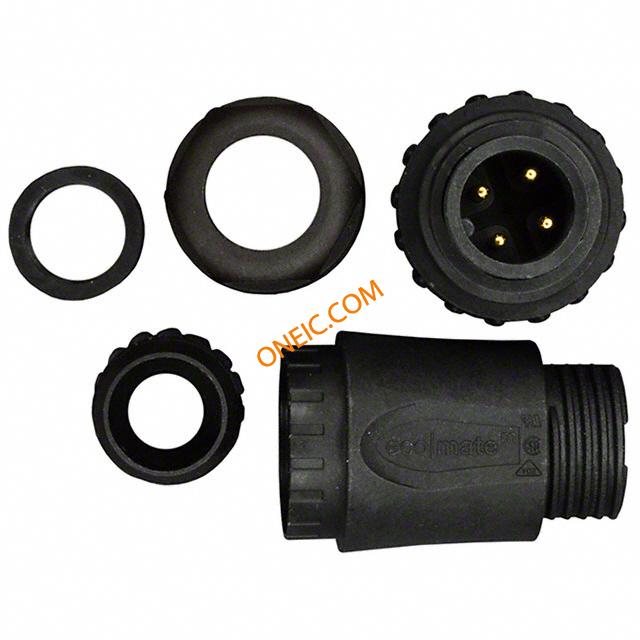

C016 20H003 200 12
| Manufacturer | |
| Description | Circular DIN Connectors 3+PE MALE STRT BLK SCREW GLD CONTACT CONN MALE PLUG 3+PE GOLD BLACK CONNECTOR, CIRCULAR, PLUG, 3+PE, CABLE connector, plastic circ, str male cable conn, 3+gnd gold plt cont, screw term, black |
| Category |
Business
| Product Category | Circular DIN Connectors | Standard Package | 250 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Approval Agency Marking | UL Recognized/CSA/VDE | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 400V | Voltage - Supply | DIN |
| Current Rating (Max) | 16A | ||
Mechanical
| Color | Black | Weight | 0 |
| Packaging | Bulk | Wire Gauge | 20-14 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Screw | Weight (g): | 40.40000 |
| Contact Type | Pin | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Cable Diameter | 6 mm to 10 mm |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Package / Case | Plastic | Connector Usage | Threaded |
| Insertion Angle | :- | Material - Body | :Nylon 6.6 (Polyamide 6.6) |
| Housing Material | Polyamide | Primary Material | DIN |
| Termination Style | Screw | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 3 | Dielectric Material | Polyamide |
| Number of Positions | 4 | Shell Material, Finish | Polyamide |
| Contact Layout, Typical | 3 + 1 Ground (PE) | 1st Connector Mounting Type | :Cable |
Product Info
| Type | Cable Plug | Gender | :Plug |
| Series | eco mate | Features | Cable Clamp |
| Manufacturer | C016 Series | Product Type | Connectors |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 100°C | ||
