C016 10C006 000 12
| Manufacturer | |
| Description | Circular DIN Connectors 6+PE MALE RECEPT BLACK CRIMP Conn Circular M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CONN MALE RCPT 6+PE BLACK PLUG, PANEL, CRIMP, 6P+E WAY connector, plastic circ, male panel recept housing, for 6+gnd crimp pin cont, black Connector: circular; socket; w/o terminals; male; PIN:7; IP65,IP67 Appliance plug 6+PE, C016 10C006 000 12, Amphenol |
| Category |
Business
| Part # Aliases | 81K1425 | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85389099 |
| Approval Agency | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE | Approval Agency Marking | UL Recognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | DIN |
| Contact Resistance | :5mohm | Voltage - Breakdown | :4000V |
| Current Rating (Max) | 13 A | Insulation Resistance | :10Mohm |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Black | Depth | 38 |
| Height | 29 | Weight | 0.021 |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | :20AWG | Orientation | Keyed |
| Shell Style | Plug | Termination | Crimp |
| Weight (g): | 14.00000 | Contact Size | 1.6mm |
| Contact Type | 6Signal/1Ground | Mounting Type | Panel Mount |
| Release Force | :30N | Angle of Throw | Straight |
| Connector Type | Receptacle for Male Contacts | Contact Finish | Silver/Gold |
| Fastening Type | Threaded | Mounting Style | flange (2 holes), for panel mounting |
| Package / Case | :Panel Plug | Connector Usage | Threaded |
| Insertion Angle | :- | Insertion Force | :15N |
| Locking Feature | threaded joint, external thread | Material - Body | :Nylon (Polyamide) |
| Housing Material | Polyamide | Length - Overall | 32 |
| Package Quantity | 5 | Primary Material | DIN |
| Connector - Cable | socket | Termination Style | Crimp |
| 1st Contact Gender | M | Color - Connectors | :Black |
| Number of Contacts | 7 | Dielectric Material | Polyamide |
| Number of Positions | 7 | Shell Size - Insert | :- |
| Mounting Hole Diameter | 0.866 " | Shell Material, Finish | Polyamide |
| Contact Layout, Typical | 6 + 1 Ground (PE) | Wire Gauge or Range - mm2 | :0.75mm² |
| 1st Connector Mounting Type | :Panel | 1st Connector Mounting Feature | 6+PE |
| Diameter - Outside, Non-Expanded | :12.5mm | ||
Product Info
| Spg | 5 | Note | Contacts Not Provided |
| Type | Circular | Gender | RCP |
| Series | eco mate | Features | Screw Locking |
| Manufacturer | C016 Series | Product Type | Connectors |
| Adapter Series | ECOMATE (C016) | Number of Units | 1 |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Mating Cycles | :500 |
| NEMA Frame Size | :IP67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | :+125°C | ||
Documents & Media
Similar Parts
C016 30F006 100 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLK SODR SILVR CONTACT CONN FMLE PLUG 6+PE R/A SLD SLVR 7 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Female Contacts Conn Circular F 7 POS Solder RA Cable Mount 7 Terminal 1 Port connector, plastic circ, rt angle fem cable conn, 6+gnd silver plt, solder term, blk Connector: circular; plug; female; Series: ECOMATE (C016); PIN:7 Cable socket, 90° 6+PE, C016 30F006 100 12, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直角 连接器 插座
TA 0500
amphenol
Crimping Tools For Stamped Contacts Hand Tools Hand crimp for single contacts TOOL CRIMP SHORT HANDLE crimp tool C16-3& ECOmate less dies/loc CRIMP TOOL, TA, 2.5MMSQ. tool, hand crimp, less crimp die set and contact locators, for eco/mate, c16-3 cont Crimping pliers without dies, TA 0500, Amphenol Amphenol 压接工具
C016 30D006 100 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLUE SODR SILVR CONTACT CONN FEMALE PLUG 6+PE SILVER BLU Conn Circular F 7 POS Solder ST Cable Mount 7 Terminal 1 Port SOCKET, FREE, SOLDER, 6P+E WAY CONNECTOR, CIRCULAR, RCPT, 6+PE, CABLE connector, plastic circ, str fem cable conn, 6+gnd silver plt cont, solder term, blue
C016 10F006 000 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLUE CRIMP CONN PLUG 6+PE CBL SKT RA CRIMP SOCKET, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle fem cable housing, for 6+gnd crimp contact, blue
TA 0002 016 0001
Amphenol Tuchel
Crimpers Contact locator for TA 0000 and TA 0500 TOOL LOCATOR VN0101600041/0011 1 tool comp;contact locator for 26-20awg contacts;goes w/ta-0000-202;ta-0000-163 tool comp, contact locator for 26-20awg contacts, goes w/ta-0000-202, ta-0000-163
C016 30D006 200 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLK SODR GLD CONTACT CONN FEMALE PLUG 6+PE GOLD BLACK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR, PLUG, 6+PE WAY, CABLE connector, plastic circ, str fem cable conn, 6+gnd gold plt cont, solder term, black cableconnfemalesold6+PE,goldpltcts Amphenol Eco-Mate 系列 7路 电缆安装 直向 连接器 插座 , 母触点
C016 10C006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE RECEPT BLACK CRIMP Conn Circular M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CONN MALE RCPT 6+PE BLACK PLUG, PANEL, CRIMP, 6P+E WAY connector, plastic circ, male panel recept housing, for 6+gnd crimp pin cont, black Connector: circular; socket; w/o terminals; male; PIN:7; IP65,IP67 Appliance plug 6+PE, C016 10C006 000 12, Amphenol

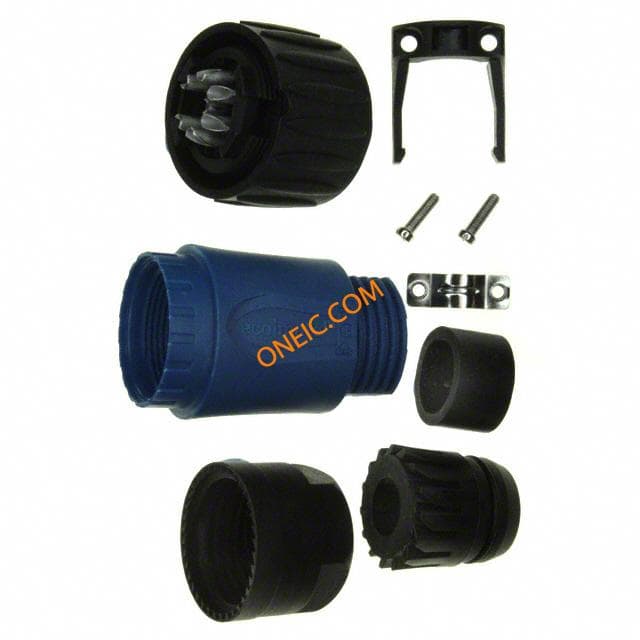

C016 30D006 210 10
