10136-3000PE
| Manufacturer | |
| Description | D-Sub Micro-D Connectors WIREMT/MDR/PLUG/36PO Wiremount Plug, Solder, Shielded CONN MDR PLUG 36POS SLD CUP 36 way shielded I/O solder plug,1A PLUG, MDR, SOLDER, 36WAY Conn;D-Sub;Mini-D-Ribbon;CablePlug;36Pos;STR;101Series;Solder;30-24AWG;).050In. Connector: MDR; plug; male; shielded; PIN:36; 1.27mm; 24÷30AWG; 1A MDR plug 36P, 10136-3000PE, 3M 3M 101 系列 电缆安装 36 路 焊接 D-sub 连接器 插头 , 1A |
| Category |
Business
| Part # Aliases | 54745239794 JE150332839 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Standards | UL94V-0 |
| Tariff No | 85369010 | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage - Test | 0.5kV | Number of Poles | :36 |
| Voltage - Breakdown | :500V | Current Rating (Max) | 1 A |
| Insulation Resistance | :500Mohm | Contact Rating (Current) | 1A |
| Connector - Voltage Input | shielded | ||
Mechanical
| Depth | 19.3mm | Pitch | 2.54mm |
| Width | 9.1mm | Length | 32.2mm |
| Weight | 0.01 | Material | :Steel |
| Wire Gauge | 30-24 | Termination | Solder Cup |
| Pitch - Post | 1.27mm | Body Material | polyester |
| Mounting Type | Straight | Shell Plating | :Gold |
| Angle of Throw | Straight | Connector Type | Plug |
| Contact Finish | Gold | Mounting Style | Wire |
| Number of Rows | 2 | Connector Style | Center Strip Contacts |
| Insert Material | Polyester | Contact Material | Copper Alloy |
| Housing Material | Steel | Package Quantity | 100 |
| Primary Material | Mini-D-Ribbon | Connector - Cable | plug |
| Termination Style | Solder | Number of Contacts | 36 |
| Contact Termination | :Solder | Number of Positions | 36 |
| Contact Finish Thickness | 20µin (0.51µm) | Contact Material - Plating | nickel plated, gold plated |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Spg | 100 | Type | CablePlug |
| Gender | Male | Features | Shielded |
| CAD Drawing | 3D CAD Model | Manufacturer | 101 |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
10236-6212PL
3M Electronic Solutions Division
D-Sub Micro-D Connectors MDR/RECEP/36POS/PB FREE/30MIN MINI D RIBBON 36 CONTACT 3M Female 36 Way Straight Through Hole SCSI Connector 2.54mm Pitch, Solder RECEPTACLE, MDR, STRAIGHT, 36WAY MDRPCBSKT36W MDR socket 36P, 10236-6212PL, 3M 3M 36 路 2.54mm节距 直 通孔 母 SCSI 连接器, 焊接 36P MDR RECEPTACLE SHIELDED
10336-52F0-008
3M Electronic Solutions Division
D-Sub Backshells 36P JUNCTION SHELL SLDR PLUG NON-SHIELD Shell for Solder, Plastic, Round Cable, Straight Exit, Latches, Non-Shielded CONN JUNCTION SHELL 36POS STRGT 36 way finger release plastic backshell Connector Accessories Solder Plug Junction Shell 36 POS Polyester Black BACKSHELL, MDR, 36WAY, Q/REL Hood;D-Sub;36Pos;StraightExit;103Series;Plastic;0.050In.CblDia;MDR Plug housing; PIN:36; Locking: lock 3M 103 系列 36 路 直 黑色 聚碳酸酯 (PBT) D-sub 连接器底壳 , 带应力消除
10236-55G3PC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 36P R/A SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 36POS R/A M2.5 Receptacle MDR PCB shielded 90deg 36 pin 3M MDR 102 系列 1.27mm 节距 36 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
10236-0210EC
3M Electronic Solutions Division

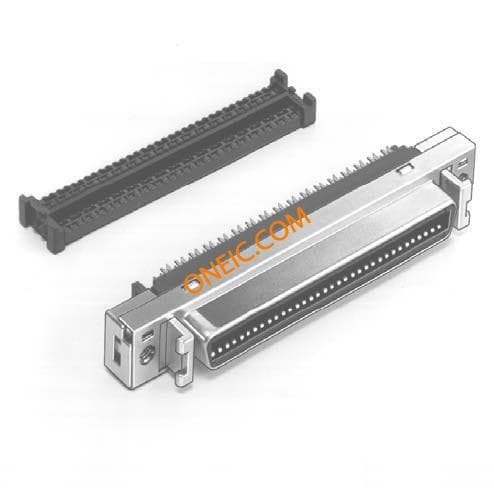

D-Sub Micro-D Connectors 36P RECEPT SHIELDED IDC WIREMNT PANELMNT Wiremount/Panelmount Receptacle, IDC, Shielded CONN MDR RECPT 36POS IDC GOLD Plug IDC Panel Mount MDR Series 36 way SOCKET, MDR, IDC, 36WAY PlugIDCPanelMountMDRSeries36way 3M 102 系列 1.27mm 节距 36 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳
10336-52A0-008
3M Electronic Solutions Division
D-Sub Backshells 36P JUNCTION SHELL JUNCTION SHELL 36POS 36 way screw release plastic backshell PLASTICBACKSHELL,36W Plug housing; PIN:36; Locking: screws 3M 103 系列 36 路 直 黑色 聚合物 D-sub 连接器底壳 , 带应力消除
10336-3210-000
3M Electronic Solutions Division
D-Sub Backshells 36P JUNCTION SHELL IDC WIREMOUNT SHIELD Shell for IDC, Plastic, Round Cable, Straight Exit, Latches, Shielded CONN JUNCTION SHELL 36POS STRGT 36 way finger release plastic hood Connector Accessories Shielded Junction Shell 36 POS Acrylonitrile Butadiene-Styrene Beige BACKSHELL, MDR, 36WAY, SHIELDED Hood;D-Sub;36Pos;StraightExit;103Series;Plastic;0.050In.CblDia;MDR,Shielded 3M 103 系列 36 路 直 米色 ABS D-sub 连接器底壳 , 带应力消除
10236-R21TS
3M Electronic Solutions Division

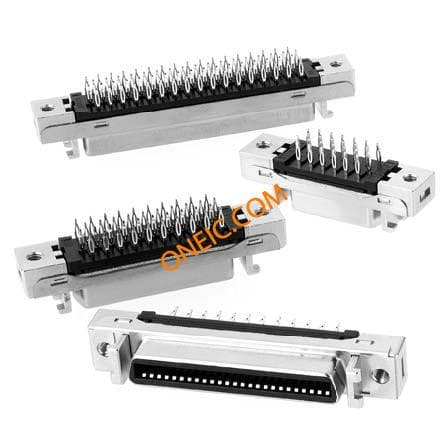

D-Sub Micro-D Connectors 36P VERT SHLD RECEP BRDMNT COMPLIANT PIN Boardmount Receptacle, Compliant Pin, Vertical, Shielded CONN MDR RCPT 36POS VERT T/H 0.050 Mini D Ribbon Board Mount Compliant Pin Vertical Receptacle 36 positions 0.050MiniDRibbonBoardMountCompliantPinVerticalReceptacle36positions
3829
3M Electronic Solutions Division
Crimpers HAND PRESS TOOL HAND FOR MINI-D PLUG MiniDRibbon(MDR)IDCHandtoolKit(forterminatingcabletoMDRIDCplugs)
10236-55H3PC
3m interconnect solutions

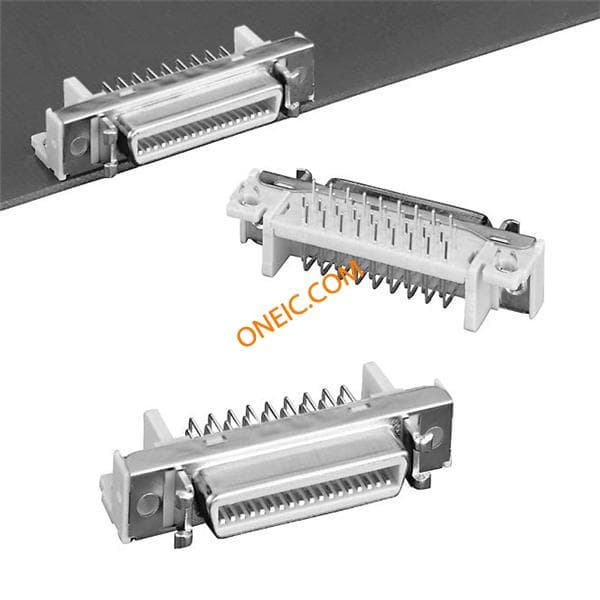

Conn SCSI RCP 36 POS 2.54mm Solder RA Thru-Hole 36 Terminal 1 Port D-Sub Micro-D Connectors 36P R/A SHLD RECEPT BOARDMNT 4-40 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 36POS R/A 4-40 .050MiniDRibbon(MDR)36Pos.Thru-HoleRightAngleReceptacle-Shielded
10236-55F3VC
3m interconnect solutions
Conn SCSI RCP 36 POS 2.54mm Solder RA Thru-Hole 36 Terminal 1 Port CONN MINI-D 36POS R/A RECPT
10236-2210PE
3m interconnect solutions
Conn SCSI RCP 36 POS 1.27mm Solder ST SMD 36 Terminal 1 Port D-Sub Micro-D Connectors 36POS VERT RECPT Boardmount Receptacle, Surface Mount, Vertical, Shielded CONN MINI-D 36POS VERT RECPT .050 Mini D Ribbon (MDR) 36 Pos. Surface Mount Vertical Receptacle-Shielded Conn;D-Sub;Mini-D-Ribbon;CableSocket;36Pos;STR;102Series;SMT;.050In.
10236-55G3PL
3m interconnect solutions
Conn SCSI RCP 36 POS 2.54mm Solder RA Thru-Hole 36 Terminal 1 Port D-Sub Micro-D Connectors 36P RA RECP Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 20POS R/A M2.5 AU 36way panel r/a high temp PCB I/O socket RECEPTACLE, MDR, R/A, 36WAY R/APLUG,36W,HIGHTEMP 3M MDR 102 系列 1.27mm 节距 36 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
10236-2200PE
3m interconnect solutions

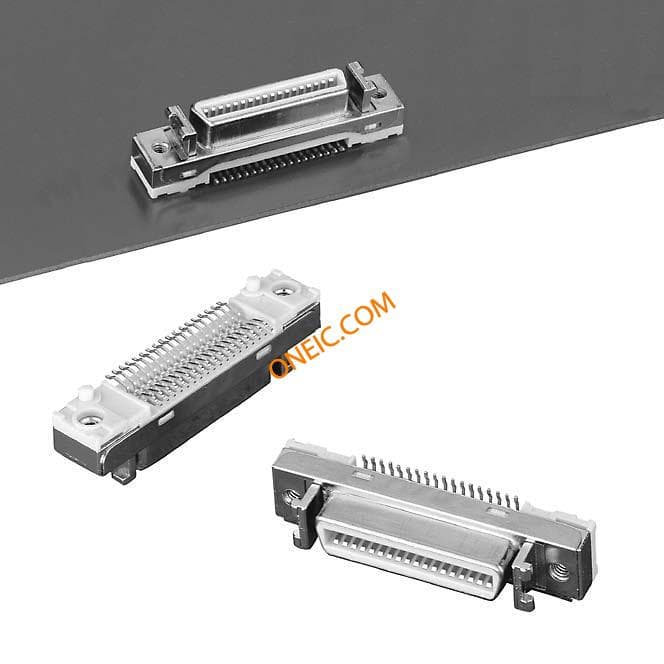

Conn SCSI RCP 36 POS 1.27mm Solder ST SMD 36 Terminal 1 Port D-Sub Micro-D Connectors 36P SMT SOCKET VERTICAL SHIELDED Boardmount Receptacle, Surface Mount, Vertical, Shielded CONN MINI-D 36POS VERT RECPT 3M 102 Series 0.5in 36 Way 2 Row Right Angle PCB Socket Surface Mount SOCKET, MDR, SMT, RA, 36WAY SocketIDCSMTMDR102Series36way
