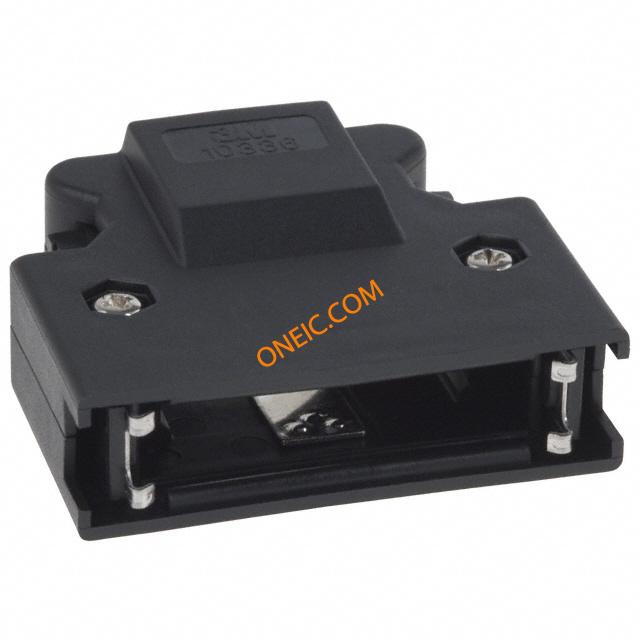

10336-52F0-008
| Manufacturer | |
| Description | D-Sub Backshells 36P JUNCTION SHELL SLDR PLUG NON-SHIELD Shell for Solder, Plastic, Round Cable, Straight Exit, Latches, Non-Shielded CONN JUNCTION SHELL 36POS STRGT 36 way finger release plastic backshell Connector Accessories Solder Plug Junction Shell 36 POS Polyester Black BACKSHELL, MDR, 36WAY, Q/REL Hood;D-Sub;36Pos;StraightExit;103Series;Plastic;0.050In.CblDia;MDR Plug housing; PIN:36; Locking: lock 3M 103 系列 36 路 直 黑色 聚碳酸酯 (PBT) D-sub 连接器底壳 , 带应力消除 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 54548623744921 54862374492 90169008954 JE150180402 JE150429965 | Product Category | D-Sub Backshells |
| Standard Package | 100 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| RoHS Compliance | Yes | Material Flammability Rating | UL 94 V-0 |
Mechanical
| Color | Black | Depth | 39 mm |
| Height | 18 mm | Weight | 1 lb |
| Material | Polybutylene Terephthalate, Glass Filled | Shielding | Unshielded |
| Cable Exit | 180° | Cable Type | Round |
| Shell Size | 36Positions | Mounting Type | Straight |
| Cable Diameter | 0.050In. | Cable End Type | Straight |
| Mounting Style | for cable | Shell Material | Polyester, Glass Reinforced |
| Connector Usage | plug housing | Locking Feature | lock |
| Material - Body | :Glass Reinforced Polyester | Housing Material | PBT |
| Length - Overall | 43.5 mm | Package Quantity | 100 |
| Color - Connectors | Black | Number of Contacts | 36 |
| Number of Positions | 36 | Shell Size - Insert | :- |
| Number of Cable Pairs | 1 | Backshell Material, Plating | Plastic |
Product Info
| Spg | 100 | Type | Two Piece Backshell |
| Series | 103 | DELETED | Compliant |
| Features | Latch Lock | Hardware | Assembly Hardware, Strain Relief |
| CAD Drawing | 3D CAD Model | Manufacturer | 103Series |
| Accessory Type | Two Piece Backshell | Number of Units | 1 |
| For Use With/Related Products | :Mini D Ribbon 101XX-3000VE Plug Connectors | ||
Environmental
| Operating Temperature | -20C to 85C | ||
