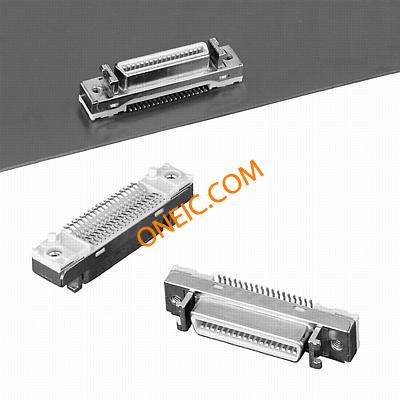

10236-2210PE
| Manufacturer | |
| Description | Conn SCSI RCP 36 POS 1.27mm Solder ST SMD 36 Terminal 1 Port D-Sub Micro-D Connectors 36POS VERT RECPT Boardmount Receptacle, Surface Mount, Vertical, Shielded CONN MINI-D 36POS VERT RECPT .050 Mini D Ribbon (MDR) 36 Pos. Surface Mount Vertical Receptacle-Shielded Conn;D-Sub;Mini-D-Ribbon;CableSocket;36Pos;STR;102Series;SMT;.050In. |
| Category |
Business
| Part # Aliases | 54745250802 JE150343695 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / Vendor undefined | Standards | UL94V-0 |
Mechanical
| Pitch | 1.27 mm | Termination | Solder |
| Mounting Type | Surface Mount | Angle of Throw | Straight |
| Connector Type | Receptacle | Contact Finish | Gold |
| Flange Feature | Insert, Threaded (M2.5); Latchblocks | Mounting Style | SMD/SMT |
| Number of Rows | 2 | Connector Style | Outer Shroud Contacts |
| Insert Material | Polyester | Primary Material | Mini-D-Ribbon |
| Termination Style | Solder | Number of Contacts | 36 |
| Number of Positions | 36 | Contact Finish Thickness | 20µin (0.51µm) |
Product Info
| Type | SCSI | Gender | RCP |
| Features | Board Guide, Shielded | Manufacturer | 102 |
