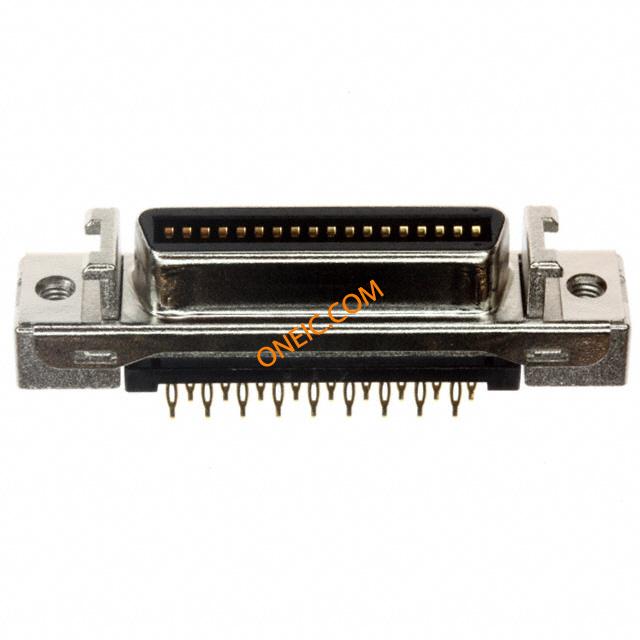

10236-R21TS
| Manufacturer | |
| Description | D-Sub Micro-D Connectors 36P VERT SHLD RECEP BRDMNT COMPLIANT PIN Boardmount Receptacle, Compliant Pin, Vertical, Shielded CONN MDR RCPT 36POS VERT T/H 0.050 Mini D Ribbon Board Mount Compliant Pin Vertical Receptacle 36 positions 0.050MiniDRibbonBoardMountCompliantPinVerticalReceptacle36positions |
| Category |
Business
| Part # Aliases | 51900163702 JE150266318 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Approval Agency | cUL,UL |
| RoHS Compliance | Yes | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Weight | 1 lb | Termination | Press-Fit |
| Mounting Type | Vertical | Shell Plating | Nickel |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Contact Finish | Gold | Flange Feature | Insert, Threaded (M2.5); Latchblocks |
| Housing Finish | Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Connector Style | Outer Shroud Contacts |
| Contact Material | CopperAlloy | Housing Material | ZincAlloy |
| Primary Material | Mini-D-Ribbon | Termination Style | Solder |
| Number of Contacts | 36 | Dielectric Material | PBT |
| Number of Positions | 36 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | PCBSocket | Gender | Female |
| Features | Shielded | Manufacturer | 102 |
