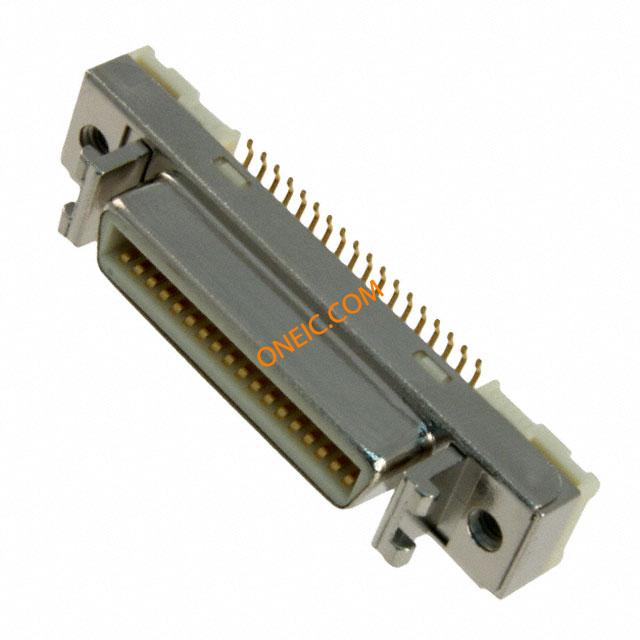

10236-2200PE
| Manufacturer | |
| Description | Conn SCSI RCP 36 POS 1.27mm Solder ST SMD 36 Terminal 1 Port D-Sub Micro-D Connectors 36P SMT SOCKET VERTICAL SHIELDED Boardmount Receptacle, Surface Mount, Vertical, Shielded CONN MINI-D 36POS VERT RECPT 3M 102 Series 0.5in 36 Way 2 Row Right Angle PCB Socket Surface Mount SOCKET, MDR, SMT, RA, 36WAY SocketIDCSMTMDR102Series36way |
| Category |
Business
| Part # Aliases | 54745250805 JE150343729 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
Electrical
| Range deg/s | :3M - 102 Series | Voltage Rating | 500 V |
| Current Rating (Max) | 1 A | ||
Mechanical
| Pitch | 1.27 mm | Weight | 1.14 |
| Packaging | Bulk | Termination | Solder |
| Mounting Type | Surface Mount | Shell Plating | Nickel |
| Connector Type | Receptacle | Contact Finish | Gold |
| Flange Feature | Insert, Threaded (M2.6); Latchblocks | Mounting Style | SMD/SMT |
| Number of Rows | 2 | Shell Material | Zinc Alloy |
| Connector Style | Outer Shroud Contacts | Contact Material | Copper Alloy |
| Termination Style | Solder | Number of Contacts | 36 |
| Contact Termination | :Surface Mount Vertical | Number of Positions | 36 |
| Contact Finish Thickness | 20µin (0.51µm) | ||
Product Info
| Type | SCSI | Gender | RCP |
| Series | 102 | Features | Board Guide, Shielded |
