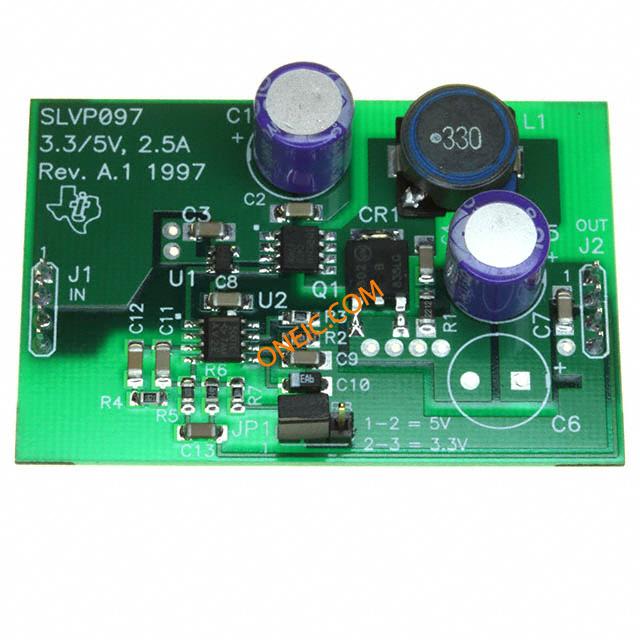

TL5001EVM-097
| Manufacturer | |
| Description | Evaluation Module Provides A Method For Evaluating The Performance Of A Buck Converter Power Management IC Development Tools PWM Buck Controller EVAL MOD BUCK CONTROLLER TL5001 |
| Category |
Business
| Product | Power Management Modules | Other Names | 296-10210 |
| Product Category | Power Management IC Development Tools | Standard Package | Boxed |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | No | EU RoHS | RoHS Not Applicable |
Electrical
| Voltage Rating | 5.5 V to 12 V | Current - Output | 2.6A |
| Regulator Topology | Buck | Frequency - Switching | 270kHz |
| Voltage - Input (Min) | 3.3V, 5V | ||
Mechanical
| Board Thickness | Fully Populated | Size / Dimension | 61 mm x 41 mm |
Product Info
| Type | Development Kit | Contents | Board |
| Main Purpose | DC/DC, Step Down | Outputs and Type | 1, Non-Isolated |
| Tool Type Feature | TL5001 | Utilized IC / Part | TL5001 |
