TL5001CD
| Manufacturer | |
| Description | DC DC Cntrlr Single-OUT PWM DC to DC Controller 3.6V to 40V Input 8-Pin SOIC Tube IC REG CTRLR PWM 8SOIC Switching Controllers PWM w/wide range PWM CONTROL IC, SMD, 5001, SOIC8 PWM Controller with Wide Input Range |
| Category |
Business
| Product Category | Switching Controllers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 75 | Standard Package Name | SOIC |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :5001 | Rad Hardened | No |
Electrical
| Output | 1 | PWM Type | Controller |
| Frequency | :500kHz | Duty Cycle | 100% |
| Output Type | :Voltage | Cuk Converter | No |
| Buck Converter | Yes | Isolated Power | No |
| Voltage Rating | 50(Max) V | Boost Converter | Yes |
| Frequency - Max | 500kHz | Current - Output | 0.02(Max) A |
| Voltage - Supply | 3.6 to 40 V | Doubler Converter | No |
| Flyback Converter | Yes | Number of Outputs | 1 |
| Power Supply Type | :PWM controller | Divider/Multiplier | No |
| Inverting Converter | No | Current Rating (Max) | Catalog |
| Must Release Voltage | Fixed | Frequency - Switching | 50 |
| Power Dissipation (Max) | :725mW | Current - Quiescent (Iq) | 1.1 |
| Current - Off State (Max) | 1000 | Gate Charge (Qg) (Max) @ Vgs | 0.02 |
Mechanical
| Width | 4(Max) | Weight | 0.002561 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8SOIC | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Number of Positions | 8 |
| Shell Size - Insert | 1.5(Max) | ||
Product Info
| Type | PWM DC to DC Controller | Series | TL5001 |
| Software | SLVS084F | Topology | Boost Buck Flyback |
| Base Unit | :5001 | Application | Industrial |
| Control Method | Voltage Mode | Controller Type | :PWM |
| Functional Diagram | fbd_slvs084f.gif | Utilized IC / Part | View |
| Printed Circuit Board | 8 | ||
Environmental
| Temperature - Test | -25 to 85 | Operating Temperature | -20 to 85 °C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts
TL494CDG4
texas instruments
Voltage Mode PWM Controller 40V 200mA 16-Pin SOIC Tube IC REG CTRLR PWM VM 16SOIC TL494CDG4, PWM Voltage Mode Controller, Dual Boost, Buck, Flyback, Full/Half-Bridge, 200mA 300kHz, 16-Pin SOIC Switching Controllers PWM Control Circuit PULSE-WIDTH-MODULATION (PWM), 494 PWM Control Circuit
TL494CN
texas instruments
Voltage Mode PWM Controller 40V 200mA 16-Pin PDIP Tube IC REG CTRLR PWM VM 16DIP TL494CN, PWM Controller 300kHz 7 to 40V 16-Pin PDIP Switching Controllers PWM Controller SWITCHED MODE CONTROLLER, DIP, 494 DC-DC converter; PWM controller; Uin: -0.3÷38V; 250mA; DIP16 PWM Control Circuit Switching controller IC PDIP-16, TL494, TL494CN, Texas Instruments , 300 kHz PWM 控制器, 7 → 40 V, 16针 PDIP封装
TL494IDG4
texas instruments
Voltage Mode PWM Controller 40V 200mA 16-Pin SOIC Tube IC REG CTRLR PWM VM 16SOIC Switching Controllers PWM Control Circuit PULSE-WIDTH-MODULATION (PWM), 494 PWM Control Circuit
TL5001EVM-097
texas instruments
Evaluation Module Provides A Method For Evaluating The Performance Of A Buck Converter Power Management IC Development Tools PWM Buck Controller EVAL MOD BUCK CONTROLLER TL5001
TPS40200EVM-001
texas instruments
A Non Sync Buck Controller Evaluation Module Power Management IC Development Tools Non-Sync Buck Contr Eval Mod EVALUATION MODULE FOR TPS40200 TPS40200, DC/DC CNTLR, EVAL MOD
TPS40200DG4
texas instruments
DC DC Cntrlr Single-OUT Step Down 4.5V to 52V Input 8-Pin SOIC Tube IC REG CTRLR BUCK PWM VM 8-SOIC TPS40200DG4, DC-DC Controller, 52V Step-Down, 8-Pin, SOIC Switching Controllers Wide Inp Non-Sync Buck DC/DC Cntrlr VOLT MODE CONTROLLER, SMD, SOIC8 Wide Input Non-Synchronous Buck DC/DC Controller

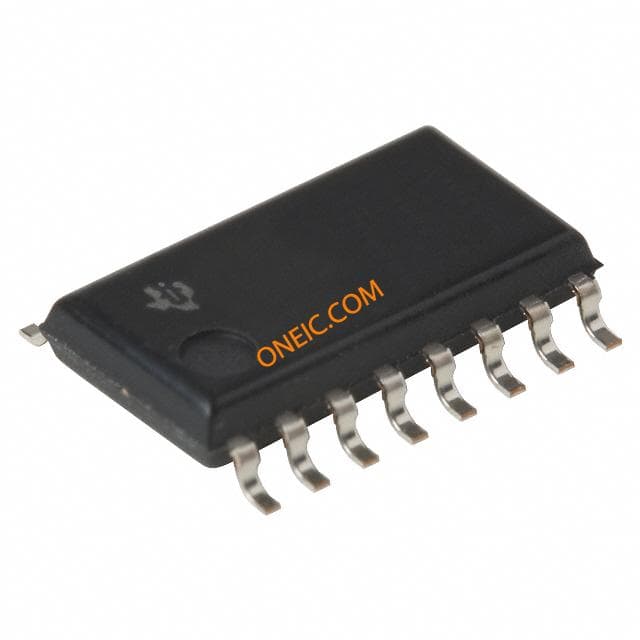

TL494CNSR
