TL5001CPSG4
| Manufacturer | |
| Description | DC DC Cntrlr Single-OUT PWM DC to DC Controller 3.6V to 40V Input 8-Pin SOP Tube Soft Switching PWM Controllers PWM Controller w/ Wide Input Range IC REG CTRLR PWM 8SO Switching Controllers PWM Controller w/ Wide Input Range |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Soft Switching PWM Controllers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 80 | Standard Package Name | SOIC |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| PWM Type | Controller | Duty Cycle | 100% |
| Cuk Converter | No | Buck Converter | Yes |
| Isolated Power | No | Voltage Rating | 50(Max) V |
| Boost Converter | Yes | Frequency - Max | 500kHz |
| Current - Output | 0.02(Max) A | Voltage - Supply | 3.6 to 40 V |
| Doubler Converter | No | Flyback Converter | Yes |
| Number of Outputs | 1 | Divider/Multiplier | No |
| Inverting Converter | No | Frequency - Switching | 400 KHz |
Mechanical
| Width | 5.6(Max) | Weight | 0.004325 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 8SOP | Package Cooled | SOP |
| Length - Overall | 6.5(Max) | Package Quantity | SOP |
| Number of Positions | 8 | Shell Size - Insert | 1.85(Max) |
Product Info
| Type | PWM DC to DC Controller | Series | TL5001 |
| Printed Circuit Board | 8 | ||
Environmental
| Operating Temperature | -20 to 85 °C | Operating Temperature - Junction | 85C |
Similar Parts

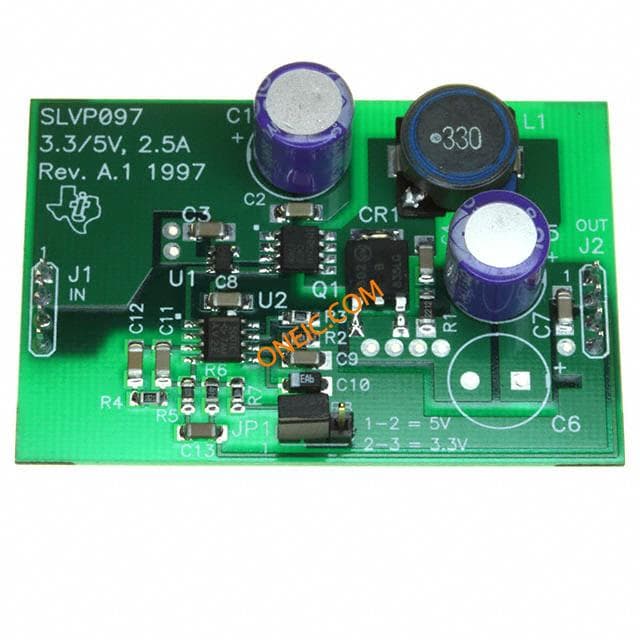

TL5001EVM-097
