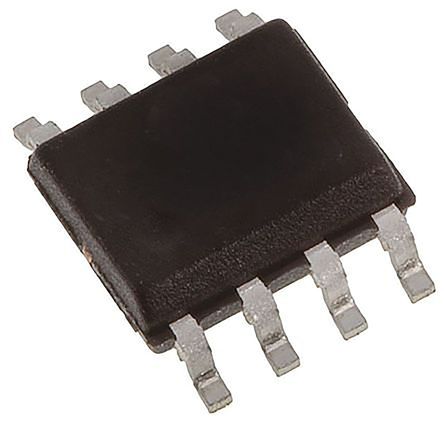

TL5001ID
| Manufacturer | |
| Description | DC DC Cntrlr Single-OUT PWM DC to DC Controller 3.6V to 40V Input 8-Pin SOIC Tube IC REG CTRLR PWM 8SOIC Switching Controllers PWM Controller Driver; PWM controller; 20mA; 1÷50V; Channels:1; SO8 PWM Controller with Wide Input Range Texas Instruments 直流-直流控制器, 20mA, 40 V, PWM 控制器, 8针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-10214-5 | Product Category | Switching Controllers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 75 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Output | 1 | PWM Type | Controller |
| Duty Cycle | 100% | Cuk Converter | No |
| Buck Converter | Yes | Isolated Power | No |
| Voltage Rating | 50(Max) V | Boost Converter | Yes |
| Frequency - Max | 500kHz | Current - Output | 0.02(Max) A |
| Current - Supply | 1.1 mA | Voltage - Supply | 3.6 to 40 V |
| Doubler Converter | No | Flyback Converter | Yes |
| Number of Outputs | 1 | Divider/Multiplier | No |
| Number of Channels | 1 | Inverting Converter | No |
| Current Rating (Max) | Catalog | Must Release Voltage | Fixed |
| Frequency - Switching | 50 | Voltage - Output (Max) | 50 V |
| Current - Quiescent (Iq) | 1.1 | Current - Off State (Max) | 1000 |
| Gate Charge (Qg) (Max) @ Vgs | 0.02 | ||
Mechanical
| Width | 3.91mm | Height | 1.58mm |
| Length | 4.9mm | Weight | 0.002561 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8SOIC |
| Package Cooled | SOIC | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Size / Dimension | 4.9 x 3.91 x 1.58mm |
| Number of Positions | 8 | Shell Size - Insert | 1.5(Max) |
Product Info
| Spg | 225 | Type | PWM DC to DC Controller |
| Series | TL5001 | Function | Y |
| Software | SLVS084F | Topology | Boost Buck Flyback |
| Application | Industrial | Manufacturer | Texas Instruments |
| Control Method | Voltage Mode | Controller Type | PWM 控制器 |
| Number of Units | 1 | Functional Diagram | fbd_slvs084f.gif |
| Utilized IC / Part | PWM controller | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
