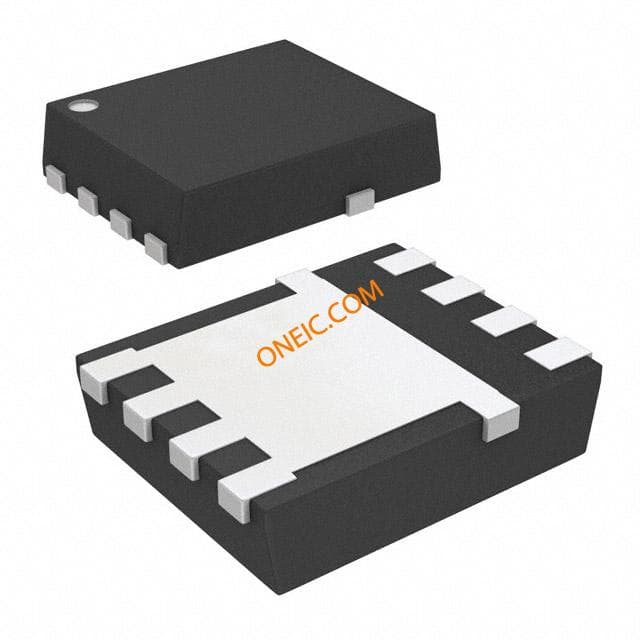

CSD17308Q3
| Manufacturer | |
| Description | Trans MOSFET N-CH 30V 47A 8-Pin SON EP T/R MOSFET N-CH 30V 47A 8SON MOSFET 30V NCh NexFET Pwr MOSFET MOSFET, N CH, 30V, 47A, 8SON 30V N-Channel NexFET™ Power MOSFET Texas Instruments , N沟道 MOSFET 晶体管, 47 A, Vds=30 V, 8针 SON封装 |
| Category |
Business
| Tradename | NexFET | Other Names | 296-27210-2 |
| Product Category | MOSFET | Standard Package | Cut Tape |
| Factory Pack Quantity | 2500 | ||
Compliance
| RoHS | Contains lead / RoHS compliant by exemption | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85412900 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| FET Type | MOSFET N-Channel, Metal Oxide | Fall Time | 2.3 ns |
| Vgs (Max) | 10 V | FET Feature | Standard |
| Gate Charge | 3.9 nC | Power - Max | 2.7W |
| Power - Rated | 2.7 W | Fall Time (Typ) | 2.3 ns |
| Rise Time (Typ) | 5.7 ns | Transistor Type | N-Channel |
| Delay to 1st Tap | 9.9 ns | Number of Elements | 1 |
| Vgs(th) (Max) @ Id | 1.8V @ 250µA | Voltage - Breakdown | 30 V |
| Voltage - Threshold | :1.3V | Current Rating (Max) | Catalog |
| Resistance - RDS(On) | :0.0094ohm | Rds On (Max) @ Id, Vgs | 10.3@8V mOhm |
| Power Dissipation (Max) | :2.7W | Propagation Delay (Max) | 5.7 ns |
| Vce(on) (Max) @ Vge, Ic | 30 V | Logic Voltage - VIL, VIH | Yes |
| On-State Resistance (Max) | 10.3@8V | Current Transfer Ratio (Min) | 37 S |
| Gate Charge (Qg) (Max) @ Vgs | 5.1nC @ 4.5V | Current - Peak Pulse (8/20us) | 78 |
| Switch Time (Ton, Toff) (Max) | 4.5 ns | Drain to Source Voltage (Vdss) | 30V |
| Current - Peak Pulse (10/1000us) | 47 A | Voltage - Gate Trigger (Vgt) (Max) | 10 V |
| Current - Drain (Idss) @ Vds (Vgs=0) | 47 A | Input Capacitance (Ciss) (Max) @ Vds | 700pF @ 15V |
| Current - Continuous Drain (Id) @ 25degC | 13A (Ta), 47A (Tc) | ||
Mechanical
| Width | 3.3 | Weight | 0.0035 |
| Packaging | Tape and Reel | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8SON EP | Package Cooled | SON EP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 3.3 |
| Package Quantity | SON EP | Number of Positions | 8 |
| Shell Size - Insert | 1 | Supplier Device Package | 8-SON |
Product Info
| Type | Power MOSFET | Series | CSD17308Q3 |
| Polarity | N | Software | SLPS262A |
| Channel Type | Enhancement | Configuration | Single |
| Pattern Number | Y | Utilized IC / Part | View |
| Other Specifications | 0.8 | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -55 to 150 | Operating Temperature | -55 to 150 °C |
Documents & Media
Similar Parts
CSD17308Q3
texas instruments
Trans MOSFET N-CH 30V 47A 8-Pin SON EP T/R MOSFET N-CH 30V 47A 8SON MOSFET 30V NCh NexFET Pwr MOSFET MOSFET, N CH, 30V, 47A, 8SON 30V N-Channel NexFET™ Power MOSFET Texas Instruments , N沟道 MOSFET 晶体管, 47 A, Vds=30 V, 8针 SON封装

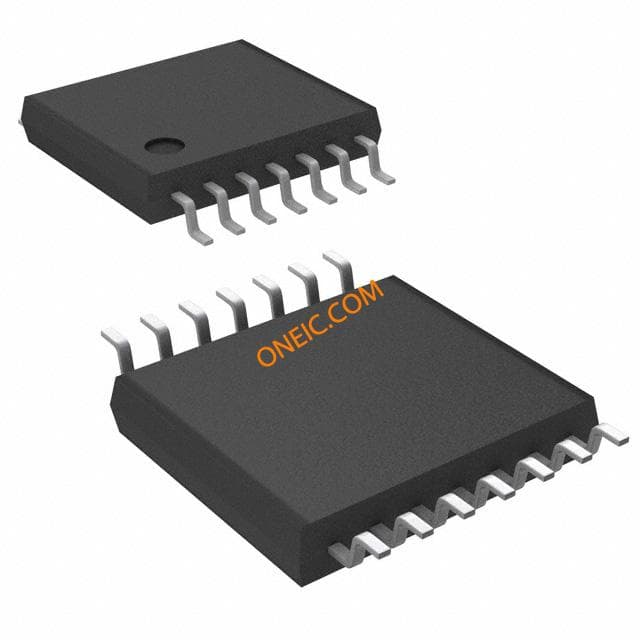

MSP430G2001IPW14R
texas instruments
MCU 16-bit MSP430 RISC 0.5KB Flash 2.5V/3.3V 14-Pin TSSOP T/R IC MCU 16BIT 512B FLASH 14TSSOP 16-bit Microcontrollers - MCU Mixed Signal Micro controller MCU 16-bit MSP430 MSP430 RISC 0.5KB Flash 2.5V/3.3V 14-Pin TSSOP T/R IC, 16BIT MCU, MSP430G2, 16MHZ, 14-TSSOP MCU, 16BIT, MSP430, 16MHZ, TSSOP-14 MSP430G2x01, MSP430G2x11 Mixed Signal Microcontroller
CSD17307Q5A
texas instruments
Trans MOSFET N-CH 30V 14A 8-Pin SON EP T/R MOSFET N-CH 30V 73A 8SON MOSFET 30V N Channel NexFET Power MOSFET MOSFET, N CH, 30V, 73A, 8SON 30V N Channel NexFET™ Power MOSFET Texas Instruments , N沟道 MOSFET 晶体管, 73 A, Vds=30 V, 8针 SON封装

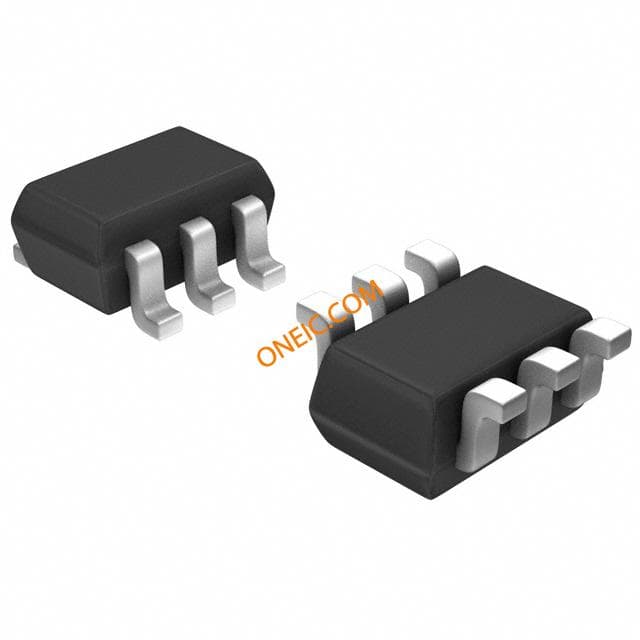

INA214AIDCKT
texas instruments
SP Amp Current Shunt Monitor Single 26V 6-Pin SC-70 T/R IC CURRENT MONITOR 1% SC70-6 INA214AIDCKT, Current Sensing Amplifier Single 6-Pin SC-70 Current & Power Monitors & Regulators Hi/Lo-Side Bi-Dir 0- Drift Ser Crnt Shunt IC, CURR SHUNT MON 100V/VSC70-6 Supervisor Integrated Circuit; 2.7÷26VDC; SC70-6 26-V, Bi-Directional, Zero-Drift, High Accuracy, Low-/High-Side, Voltage Out Current Shunt Monitor Current Sense Amplifier IC SC-70-6, INA214, INA214AIDCKT, Texas Instruments 单 电流感应放大器, 6针 SC-70封装 Current Sense Amplifiers Hi/Lo-Side Bi-Dir 0- Drift Ser Crnt Shunt
LM3478MA/NOPB
Texas Instruments Incorporated
. LM3478MA/NOPB - Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-SOIC from Texas Instruments. from now!
80-4-5
Illinois Capacitor, Inc.
Solder Removal .110 BLUE Chemical,DesolderingBraid,Rosin,EsdSafe,5FootBobbin,.110Inch/2.8mmBlue Soder-Wick® Rosin SD .110" ESD 5' Spool Desoldering braids 2.8 mm, 80-4-5, Chemtronics

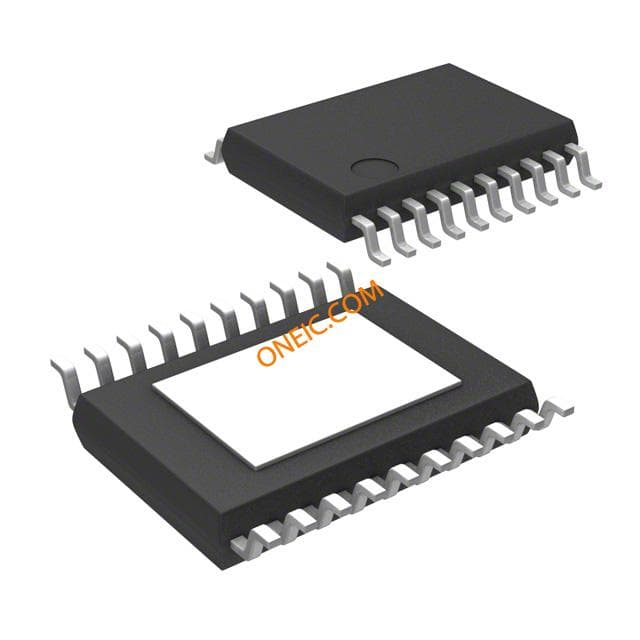

LM5118MH/NOPB
Texas Instruments Incorporated
. LM5118MH/NOPB - Buck, Buck-Boost Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 20-HTSSOP from Texas Instruments. from now!
TPS54231D
texas instruments
Conv DC-DC Single Step Down 3.5V to 28V 8-Pin SOIC Tube IC REG BUCK ADJ 2A 8SOIC TPS54231D, Switching Regulator, Buck Controller, 2A, Adjustable, 0.8V min., 570kHz, 8-Pin SOIC Voltage Regulators - Switching Regulators 28V,2A Current Mode Nonsynch Buck IC, STEP-DN SWIFT CONV 2A 8-SOIC 3.5 to 28V Input, 2A, 570kHz Step-Down Converter with Eco-mode™ Texas Instruments 降压 开关稳压器, 2A, 可调输出, 最低 0.8 V, 570 kHz, 8针 SOIC封装 Switching Voltage Regulators 28V,2A Current Mode Nonsynch Buck

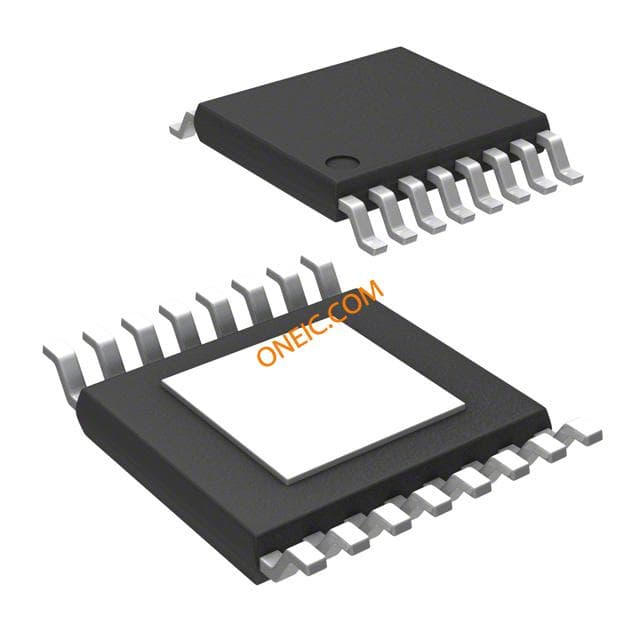

LM5088MH-1/NOPB
Texas Instruments Incorporated
. LM5088MH-1/NOPB - Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-HTSSOP from Texas Instruments. from now!
LM3481MM/NOPB
Texas Instruments Incorporated
. LM3481MM/NOPB - Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 10-VSSOP from Texas Instruments. from now!
LM3150MHE/NOPB
texas instruments
DC DC Cntrlr Single-OUT Step Down 6V to 42V Input 14-Pin TSSOP EP T/R IC REG CTRLR BUCK PWM 14-TSSOP LM3150MHE/NOPB, DC-DC Controller, 12A, 42V Step-Up, Synchronous, 1000kHz, 14-Pin, TSSOP Switching Controllers 42V SYNC STEP-DOWN SIMPLE SWITCHER® CONTROLLER, 42V Synchronous Step-Down Switching Regulator HTSSOP-14, LM3150, LM3150MHE/NOPB, Texas Instruments Texas Instruments 直流-直流降压控制器, 12A, 42 V 降压，同步, 1000 kHz, 14针 TSSOP封装
LM3424MH/NOPB
texas instruments
LED DRVR 5V/9V/12V/15V/18V/24V 20-Pin TSSOP EP Tube LED Lighting Drivers LED DRVR 5V/9V/12V/15V/18V/24V 20-Pin HTSSOP EP Rail IC LED DVR BUCK/BOOST 20-TSSOP LM3424MH/NOPB, LCD Display Driver, 4.5 to 75V, 20-Pin TSSOP-20EXP LED Lighting Drivers Constant Current N-Channel Controller with Thermal Foldback for Driving LEDs 20-HTSSOP -40 to 125 LED DRVR 5V/9V/12V/15V/18V/24V 20-Pin TSSOP EP Rail IC, LED DRIVER, CONSTANT CURRENT TSSOP20 Constant Current N-Channel Controller with Thermal Foldback for Driving LEDs LCD 显示驱动器, 4.5 → 75 V, 20引脚 TSSOP封装 LED Lighting Drivers LM3424B Eval Brd

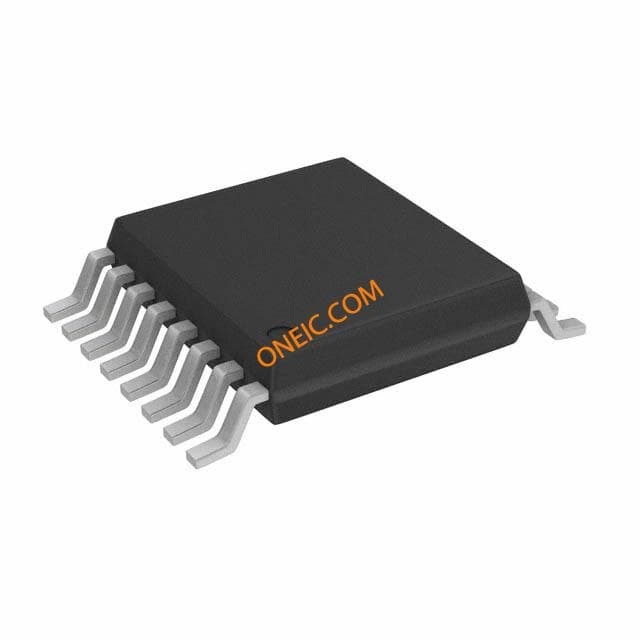

LM25088MH-1/NOPB
