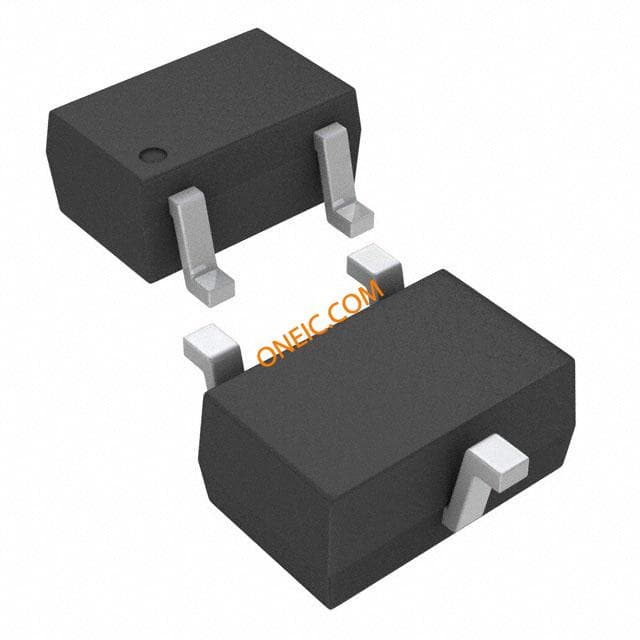

INA214AIDCKT
| Manufacturer | |
| Description | SP Amp Current Shunt Monitor Single 26V 6-Pin SC-70 T/R IC CURRENT MONITOR 1% SC70-6 INA214AIDCKT, Current Sensing Amplifier Single 6-Pin SC-70 Current & Power Monitors & Regulators Hi/Lo-Side Bi-Dir 0- Drift Ser Crnt Shunt IC, CURR SHUNT MON 100V/VSC70-6 Supervisor Integrated Circuit; 2.7÷26VDC; SC70-6 26-V, Bi-Directional, Zero-Drift, High Accuracy, Low-/High-Side, Voltage Out Current Shunt Monitor Current Sense Amplifier IC SC-70-6, INA214, INA214AIDCKT, Texas Instruments 单 电流感应放大器, 6针 SC-70封装 Current Sense Amplifiers Hi/Lo-Side Bi-Dir 0- Drift Ser Crnt Shunt |
| Category |
Business
| Product | Current Monitors | Other Names | 296-23422-2 |
| Product Category | Current & Power Monitors & Regulators | Standard Package | Tape & Reel |
| Factory Pack Quantity | 250 | Standard Package Name | SOT-323 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Gain | 40 dB | PSRR | 140 dB |
| Accuracy | ±1% | Frequency | 14kHz |
| Slew Rate | :0.04V/µs | Output Type | No |
| Power - Input | Single | Voltage Rating | 2.7 V |
| CMRR, PSRR (Typ) | 105dB | Current - Output | 100 uA |
| Current - Supply | 65µA | Voltage - Supply | 2.7 V |
| Power Supply Type | Single | Number of Channels | 1 |
| Number of Elements | 1 | Current - Input Bias | 35000 nA |
| Current Rating (Max) | Catalog | Number of ADCs / DACs | :1 |
| Voltage - Input (Min) | 40(Typ) dB | Gain Bandwidth Product | 0.014 MHz |
| Rail-to-Rail Operation | No | Voltage - Supply (Min) | 26 V |
| Current - Quiescent (Iq) | 0.115 | Current - Input Bias (Max) | 35@5V |
| Voltage - Supply (Vcc/Vdd) | 26 | Voltage - Supply Span (Typ) | Not Required V |
| Voltage - Input Offset (Max) | 60 | Common Mode Transient Immunity (Min) | Extended |
Mechanical
| Width | 1.25mm | Height | 0.9mm |
| Length | 2mm | Weight | 0.000088 oz |
| Bandwidth | :14kHz | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | -3db Bandwidth | 0.03 |
| Mounting Style | SMD/SMT | Number of Pins | :6 |
| Package / Case | 6SC-70 | Package Cooled | SC-70 |
| Material Finish | :MSL 2 - 1 year | Length - Overall | 2.15(Max) |
| Package Quantity | SC-70 | Size / Dimension | 2 x 1.25 x 0.9mm |
| Number of Positions | 6 | Shell Size - Insert | 1(Max) |
| Supplier Device Package | SC-70-6 | ||
Product Info
| Spg | 117 | Type | Current Shunt Monitor |
| Series | INA214 | DELETED | Compliant |
| Features | high or low side measurement | Function | Current Monitor |
| Software | SBOS437G | Base Unit | :214 |
| Pattern Number | Y | Sensing Method | High/Low-Side |
| Number of Units | 1 | Functional Diagram | alt_sbos437g.gif |
