825435-4
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 4POS VERT 30GOLD Headers & Wire Housings MOD 2 PINHDR 1X04P MOD 2 PINHDR 1X04P. MOD 2 PINHDR 1X04P. Search Keywords:board to board, AMPMODU, pcb connectors, |
| Category |
Business
| Tradename | AMPMODU | Standard Pack | 500 |
| Standard Package | Bulk | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| Standard Number | CSA LR7189, UL E28476 | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Current Rating (Max) | 3/Contact A | Voltage - Protection Rating (VPR) | 750 Vrms |
Mechanical
| Color | Green | Depth | 3.69 mm |
| Pitch | 2.54 mm | Height | 9.5 mm |
| Base Type | 不带 | Lock Type | 不带 |
| Packaging | Bulk | Body Color | 绿色 |
| Lead Style | 正方形 | Stabilizer | 不带 |
| Row Spacing | 2.54 mm | Termination | Solder |
| Contact Type | Male Pin | Pitch - Post | 2.54 [.100] |
| 1st Connector | No | 2nd Connector | Without |
| Contact Shape | Square | Housing Color | Green |
| Mounting Type | Vertical | Connector Type | Standard |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 1 | Insert Material | 黄铜 |
| Profile (W x H) | Standard | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Length - Overall | 10.16 mm |
| Mounting Feature | Without | Package Quantity | 500 |
| Panel Mount Type | Without | Size / Dimension | 0.64 [.025] |
| Termination Style | Through Hole | 1st Connector Type | 分离 |
| 1st Contact Gender | Pin (Male) | Diameter - Outside | .64 mm [ .025 in ] |
| Number of Contacts | 4 | Termination Finish | 不带 |
| Number of Positions | 4 | Length - Post (Mating) | 6.7 mm |
| Mounting Hole Diameter | 不带 | Contact Length - Mating | 6.70 [0.264] |
| Surface Mount Land Size | No | Termination Post Length | 10.80 [0.425] |
| Contact Finish Thickness | 31.5µin (0.80µm) | Static Discharge Shielding | 不带 |
| 1st Connector Mounting Feature | 否 | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Manufacturer | AMP | Product Type | Header |
| Selectively Loaded | No | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature | No |
| Operating Temperature | -65C to 105C | Operating Temperature - Junction | 否 |
Documents & Media
Similar Parts
87499-7
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 4POS .100 SINGLE 2.54mm,housing,4W,Mod IV,SR,snap in Headers & Wire Housings NON-PLRZD HSG 4 SNGL .405 width Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 4WAY Housing,Connector;Crimp-Snap;Single;4;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 4 Contact DesignStamped Single row / straight / without polarization AMPMODU MOD IV, 87499-7, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 4 路 直 母 PCB 壳体 04 MODIV HSG SR MRKD .100CL

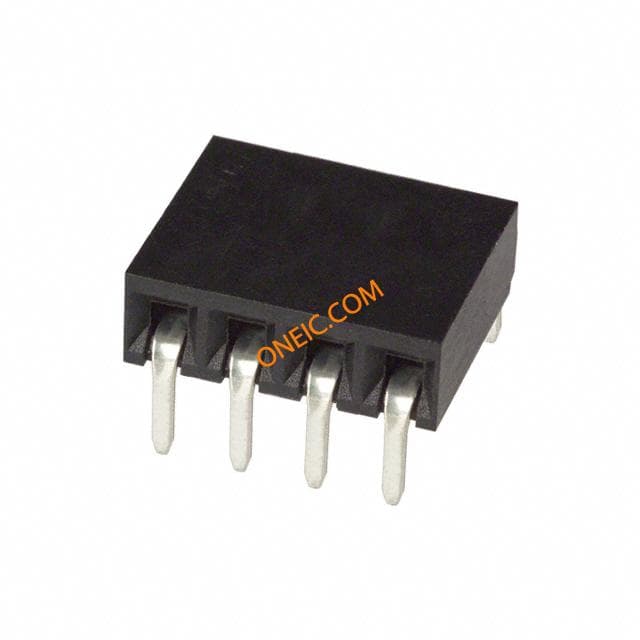

535676-3
