102241-2
| Manufacturer | |
| Description | Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 4POS .100 POLAR 2.54mm,housing,4W,Mod IV,SR,snap in Headers & Wire Housings POLARIZED HSG 4P detent latching Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 4WAY Housing,Connector;ModIV;Single;4;250VAC;3A;750VYes Plug; wire-board; female; PIN:4; w/o terminals; 2.54mm; for cable Crimp housing Pitch2.54 mm Poles 4 Single row / straight / with polarization / with detent latching AMPMODU MOD IV, 102241-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 4 路 直 母 电缆安装 PCB 壳体 04 MODIV HG COMP SR .100 POL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | ULListed,CSACertified | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | ||
Electrical
| Range deg/s | :TE - AMPMODU Mod IV Series | Voltage Rating | 250 VAC |
| Switch Function | Detent Latching | Voltage - Breakdown | 750V |
| Current Rating (Max) | 3 A | Insulation Resistance | :500Mohm |
| Voltage - Input (Min) | 250VAC | Voltage - Supply (Min) | 250VAC |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Black | Depth | 15.24mm |
| Pitch | 2.54 mm | Width | 4.62mm |
| Height | 4.62 mm | Length | 10.16mm |
| Weight | 0.037 | Packaging | Bulk |
| Wire Gauge | 20-32 AWG | Termination | :Crimp |
| Contact Type | Female Socket | Pitch - Post | 2.54mm |
| Polarization | Yes | Housing Color | Black |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Receptacle | Contact Finish | :Gold |
| Fastening Type | Locking Ramp | Mounting Style | for cable |
| Number of Rows | 1 | Package / Case | :Black Thermoplastic UL94V-0 |
| Contact Material | :Beryllium Copper | Housing Material | Nylon |
| Length - Overall | 10.16 mm | Package Quantity | 1 |
| Primary Material | InterconnectSystem | Connector - Cable | plug |
| Pin Hole Diameter | 0.1" | Number of Contacts | 4 |
| Contact Termination | Crimp | Number of Positions | 4 |
| 1st Connector Mounting Type | :PCB | 1st Connector Mounting Feature | 1x4 |
Product Info
| Spg | 1 | Note | Contacts Not Provided |
| Type | Housing | Gender | RCP |
| Series | Mod IV | Manufacturer | AMPMODU/MODIVSeries |
| Product Type | Wire Housings | Adapter Series | AMPMODU MOD IV |
| Number of Units | 1 | Matrix (Columns x Rows) | 0.1in. |
| For Use With/Related Products | Centerline Single-Row Connector | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
103361-2
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 4POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED RA SINGLE 4 with standoffs Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, Headerhoriz4way2.54mmAmpModu 04 MODII HDR SRRA SHRD .100CL
102523-1
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings SHROUDED RA SINGLE 4 with standoffs .100 inch AMPMODU Headers CONN HEADER RTANG 4POS PCB TIN Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR SRRA SHRD .100CL
146132-2
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 4POS DUAL TIN Headers & Wire Housings 04 MODII HDR SR SFMNT B/A .100 04 MODII HDR SR SFMNT B/A .100 04 MODII HDR SR SFMNT B/A .100 Search Keywords:board to board, AMPMODU, pcb connectors,
103080-2
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT 4POS PCB TIN Headers & Wire Housings SHROUDED VERT SNGL 4 with standoffs Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR SRST SHRD .100CL
104345-2
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 4POS VERT 15AU Headers & Wire Housings 04 MODII HDR SRST B/A W/HD Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR SRST B/A W/HD
102202-1
te connectivity / amp
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 4POS 15AU Headers & Wire Housings SHROUDED VERT SNGL 4 with standoffs Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, MODUTHRUSRHDRSHRD,04MODIIHDRSRSTSHRD.100CL 04 MODII HDR SRST SHRD .100CL
5-103080-2
te connectivity / amp

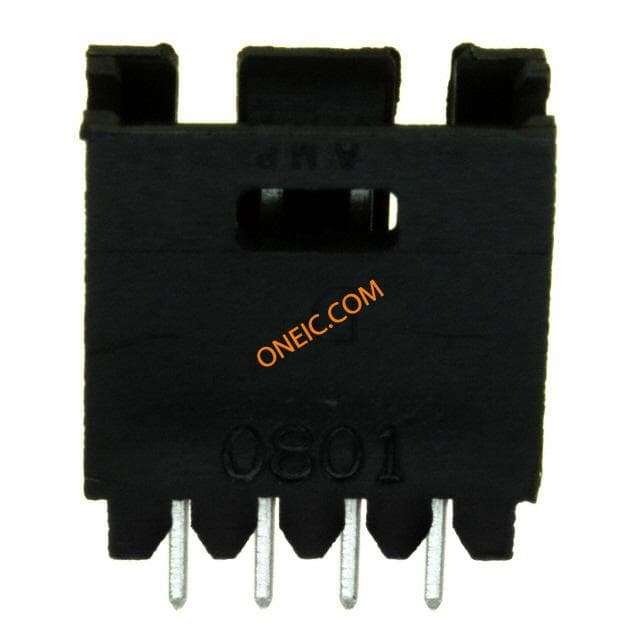

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT 4POS PCB TIN Headers & Wire Housings SHROUDED VERT SNGL 4 with standoffs Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:board to board, AMPMODU, pcb connectors, CONNECTOR, 4WAY, VERTICAL, 2.54 04 MODII HDR SRST SHRD .100CL
104349-2
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 4POS R/A TIN Headers & Wire Housings 04 MODII HDR SRRA B/A W/HLDWN .100 inch AMPMODU Headers Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Standard4 PositionsMating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR SRRA B/A W/HLDWN
5-103414-2
te connectivity / amp

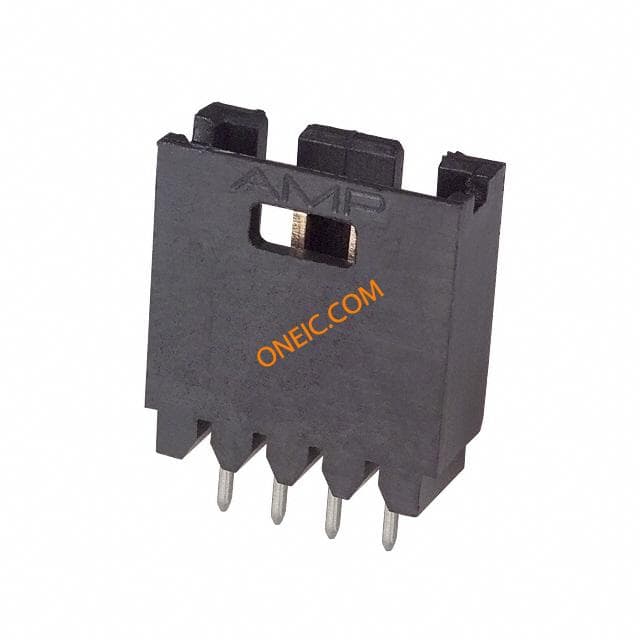

Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 4POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VERT SNGL 4 with standoffs Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 1ROW, 4WAY Header;Shrouded;Vertical;CopperAlloy;Thermoplastic;4;0.1in.;Gold(30) TE Connectivity AMPMODU Mod II 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 04 MODII HDR SRST SHRD LF
5-102203-1
te connectivity / amp

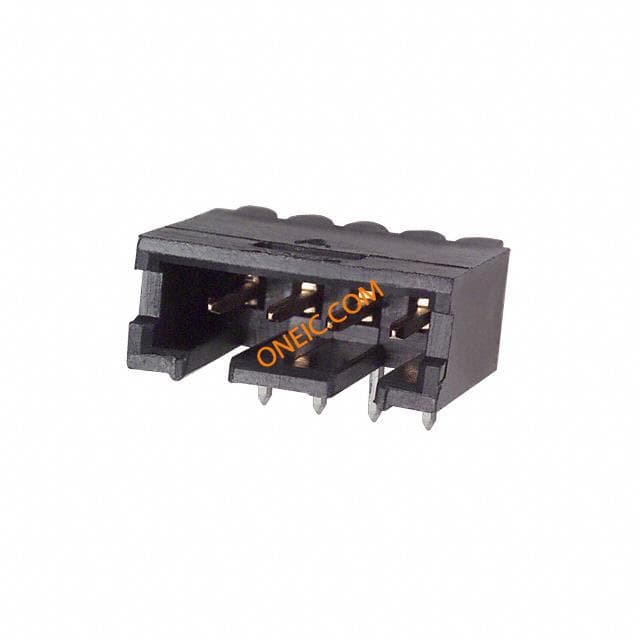

Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER R/A .100 4POS 15AU TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings HDR 1X04P R/A T/H Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, AMPModuIIShroudedHdr,plug,r/a,SR,4w TE Connectivity AMPMODU Mod II 系列 2.54mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 04 MODII HDR SRRA SHRD LF
