87499-7
| Manufacturer | |
| Description | Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 4POS .100 SINGLE 2.54mm,housing,4W,Mod IV,SR,snap in Headers & Wire Housings NON-PLRZD HSG 4 SNGL .405 width Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 4WAY Housing,Connector;Crimp-Snap;Single;4;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 4 Contact DesignStamped Single row / straight / without polarization AMPMODU MOD IV, 87499-7, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 4 路 直 母 PCB 壳体 04 MODIV HSG SR MRKD .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | ULE28476,CSALR7189,RoHSCompliant,ELVCompliant |
| Tariff No | 85369010 | Approval Agency | :CSA, UL |
Electrical
| Range deg/s | :TE - AMPMODU Mod IV Series | Voltage Rating | 250 VAC |
| Switch Function | Unlatched | Voltage - Breakdown | 750V |
| Current Rating (Max) | 3 A | Insulation Resistance | :500Mohm |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 15.24mm |
| Pitch | 2.54 mm | Width | 3.56mm |
| Height | 3.56 mm | Length | 10.29mm |
| Weight | 0.049 | Packaging | Bulk |
| Row Spacing | 2.54 mm | Termination | :Crimp |
| Contact Type | Female Socket | Polarization | No |
| Housing Color | Black | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Contact Finish | :Gold | Mounting Style | Free Hanging |
| Number of Rows | 1 | Package / Case | :Black Thermoplastic UL94V-0 |
| Contact Material | :Beryllium Copper | Housing Material | Thermoplastic |
| Length - Overall | 10.29 mm | Primary Material | InterconnectSystem |
| Connector - Cable | Yes | Pin Hole Diameter | 0.1" |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 4 | Contact Termination | Crimp |
| Number of Positions | 4 | 1st Connector Mounting Type | :PCB |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Mod IV |
| Manufacturer | AMPMODU/MODIVSeries | Product Type | Receptacles / Sockets - Housings |
| Matrix (Columns x Rows) | 0.1in. | For Use With/Related Products | Centerline Single-Row Connector |
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
104345-2
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 4POS VERT 15AU Headers & Wire Housings 04 MODII HDR SRST B/A W/HD Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR SRST B/A W/HD
87220-4
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 4POS 30AU Headers & Wire Housings UNSHRD VERT SNGL 4 Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, MODUTHRUSRHDRUNSHR,04MODIIHDRSRSTUNSHRD.100 04 MODII HDR SRST UNSHRD .100
104349-2
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 4POS R/A TIN Headers & Wire Housings 04 MODII HDR SRRA B/A W/HLDWN .100 inch AMPMODU Headers Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Standard4 PositionsMating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR SRRA B/A W/HLDWN
825435-4
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 4POS VERT 30GOLD Headers & Wire Housings MOD 2 PINHDR 1X04P MOD 2 PINHDR 1X04P. MOD 2 PINHDR 1X04P. Search Keywords:board to board, AMPMODU, pcb connectors,
104429-2
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 inch AMPMODU Headers CONN HEADR BRKWAY 4POS R/A GOLD
104431-2
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADR BRKWAY 4POS R/A TIN Headers & Wire Housings 04 MODII HDR SRRA B/A W/HLDWN 04 MODII HDR SRRA B/A W/HLDWN 04 MODII HDR SRRA B/A W/HLDWN Search Keywords:board to board, AMPMODU, pcb connectors,
146285-4
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 4POS SGL .100 Headers & Wire Housings 04 MODII HDR SRST B/A .100CL .100 inch AMPMODU Headers Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Breakaway4 PositionsMating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR SRST B/A .100CL
9-103765-0-04
TE Connectivity
CONN HEADR BRKWAY .100 04POS R/A
4-103759-0-04
TE Connectivity
CONN HEADR BRKWAY .100 04POS R/A
9-103759-0-04
TE Connectivity
CONN HEADR BRKWAY .100 04POS R/A
4-103325-0-04
TE Connectivity
CONN HEADR BRKWAY .100 04POS R/A
4-102978-0-04
TE Connectivity
CONN HEADR BRKWAY .100 04POS R/A
9-102974-0-04
TE Connectivity
CONN HEADR BRKWAY .100 04POS R/A
4-103323-0-04
TE Connectivity
CONN HEADR BRKWAY .100 04POS R/A

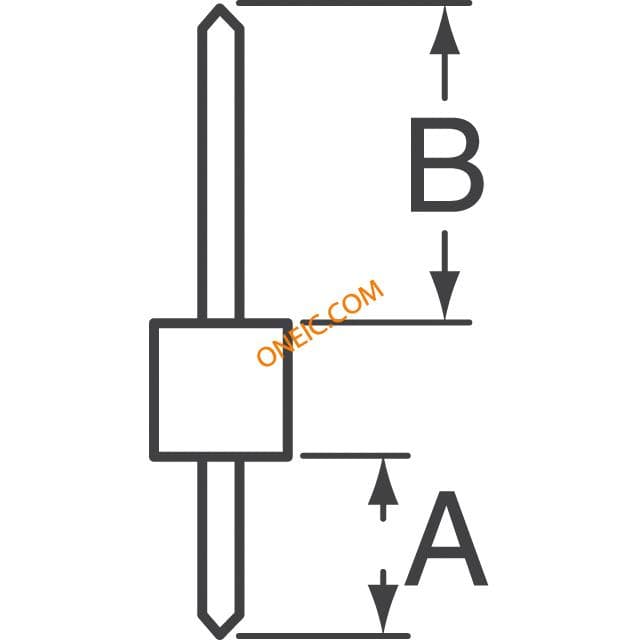

4-103327-0-04
