534237-2
| Manufacturer | |
| Description | Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 4POS .100 VERT AU Headers & Wire Housings 04 MODII VRT SR CE 4480 Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:ReceptacleMod IINumber of Positions = 4Number of Rows = SingleStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 04 MODII VRT SR CE 100/115 |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 56 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL-C-55032 | 否 |
| Standard Number | CSA LR7189, UL E28476 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 750 V | Contact Resistance | 12 |
| Resistance - Input | 5000 | Voltage - Rated AC | 333 |
| Current Rating (Max) | 2 A | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 3.56 mm [ .14 in ] | Packaging | Tube |
| Body Color | 黑色 | Lead Style | 正方形 |
| Termination | Solder | Contact Type | Female Socket |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | 标准 |
| Number of Rows | 1 | Pressure (PSI) | 标准 |
| Terminal Style | 短点 | Connector Usage | 闭合入口, 顶部 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT) | Package Quantity | 56 |
| Panel Mount Type | 通孔 - 焊接 | Termination Style | Through Hole |
| Number of Contacts | 4 | Contact Tail Length | 2.92 |
| Number of Positions | 4 | Bushing, Grommet Type | 不带 |
| Compatible Shell Size | 与接头配合 | Contact Layout, Typical | 同轴 |
| Termination Post Length | 2.92 mm [ .115 in ] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Note | TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。 | Type | Socket Strip |
| Gender | SKT | Series | AMPMODU MOD II |
| Sealable | 否 | Stackable | 是 |
| Product Type | Receptacles / Sockets - PCB | Assembly Configuration | 板支座 |
| Number of Positions Loaded | All | ||
Environmental
| Temperature - Test | 否 | Operating Temperature | - 65 C to + 105 C |
| Thermal Resistance of Package | 1.4 – 2.4 mm [ .055 – .094 in ] | ||
Documents & Media
Similar Parts
87221-3
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 3.81mm Solder ST Thru-Hole .150 inch AMPMODU Headers CONN HEADER 4POS VERT .150 GOLD Headers & Wire Housings 04 MODII HDR SRST UNSHRD 0.150 .150 inch AMPMODU Headers Product Highlights:Number of Rows = SingleNumber of Positions = 43.81 mm Centerline, MatrixWithout Board StandoffSearch Keywords:AMPMODU 04 MODII HDR SRST UNSHRD .150
104345-2
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 4POS VERT 15AU Headers & Wire Housings 04 MODII HDR SRST B/A W/HD Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR SRST B/A W/HD
104344-2
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 4POS VERT 30AU Headers & Wire Housings 04 MODII HDR SRST B/A W/HD .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 4Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 04 MODII HDR SRST B/A W/HD
87220-4
te connectivity / amp
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 4POS 30AU Headers & Wire Housings UNSHRD VERT SNGL 4 Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, MODUTHRUSRHDRUNSHR,04MODIIHDRSRSTUNSHRD.100 04 MODII HDR SRST UNSHRD .100

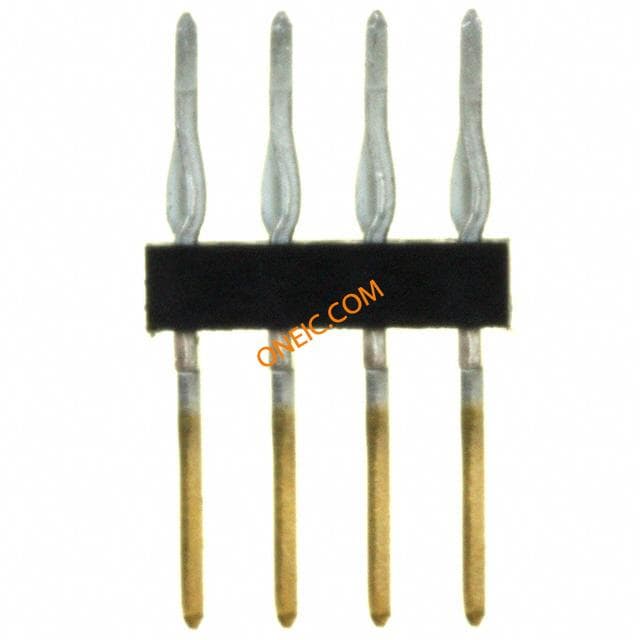

3-103336-6
