770601-1
| Manufacturer | |
| Description | Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG TIN CRIMP Contact female,crimp,26-22AWG,CST-100 Headers & Wire Housings CST-100 CRIMP TERM Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, SOCKET, 26-22AWG CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CST-100CONTACTSTRIPSN Contact; female; 22÷26AWG; CST-100 |
| Category |
Business
| Other Names | A100820CT | Product Category | Headers & Wire Housings |
| Standard Package | Tape & Reel | Factory Pack Quantity | 5500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| Voltage Rating | 250 V | Contact Resistance | 6mΩ |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Depth | 2.67 mm | Pitch | Not Required mm |
| Height | 3.77 mm | Weight | 0.02 |
| Packaging | Tape & Reel (TR) | Wire Gauge | 0.12-0.4² [26-22] |
| Termination | Crimp | Contact Size | :22 |
| Contact Type | Signal | Contact Shape | Box |
| Housing Color | Not Required | Mounting Type | Straight |
| Pin or Socket | Socket | Angle of Throw | Straight |
| Connector Type | Connector Headers and PCB Receptacles | Contact Finish | Pre-Tin Over Nickel |
| Mounting Style | Cable | Contact Material | Phosphor Bronze |
| Housing Material | Not Required | Length - Overall | 11.18 mm |
| Package Quantity | Strip | Primary Material | QuickDisconnect |
| Connector - Cable | contact | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | Not Required |
| Contact Termination | Crimp | Insulation Diameter | 1.65 [0.065] |
| Wire Gauge or Range - AWG | :26AWG | ||
Product Info
| Spg | 1 | Note | Pre-tin may or may not have nickel underplate. |
| Type | Contact | Gender | SKT |
| Series | CST-100 | CAD Drawing | 3D CAD Model |
| Product Type | CST-100 Contacts | Adapter Series | CST-100 |
| Number of Units | 1 | For Use With/Related Products | CST-100 Housings |
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
1-770602-7
te connectivity / amp
Conn Housing RCP 17 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HOUSING 17POS .100 Housing Receptacle 17 way CST-100 Headers & Wire Housings 17P CST 100 CONN HSG Conn Housing RCP 17 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 17Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HousingReceptacle17wayCST-100 TE Connectivity CST-100 系列 2.54mm 节距 17 路 直 母 电缆安装 PCB 壳体
770602-3
te connectivity / amp
Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3 POS CST-100 3 way socket housing,2.54mm pitch Headers & Wire Housings 3P CST-100 HOUSING Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:CST-100 HousingsNumber of Positions = 3Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 3WAY Connector;Nylon;Receptacle;3;White;Crimp;180deg;0.1in.;UL94V-0 Plug; wire-board; female; PIN:3; polarized, w/o terminals; 2.54mm Crimp housing 3P, 770602-3, TE Connectivity TE Connectivity CST-100 系列 2.54mm 节距 3 路 直 母 电缆安装 PCB 壳体
770602-4
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 4 POS CST-100 4 way socket housing,2.54mm pitch Headers & Wire Housings CST-100 CONN. 4POS Conn Housing RCP 4 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 4Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 4WAY Connector;Nylon;Receptacle;4;White;Crimp;180deg;0.1in.;UL94V-0 Plug; wire-board; female; PIN:4; polarized, w/o terminals; 2.54mm Crimp housing 4P, 770602-4, TE Connectivity TE Connectivity CST-100 系列 2.54mm 节距 4 路 直 母 电缆安装 PCB 壳体
1-770602-5
te connectivity / amp
Conn Housing RCP 15 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 15 POS CST-100 2.54mm housing rcpt.15w,crimp,white,180° Headers & Wire Housings 15P CST 100 CONN HSG 1-770602-5 Conn Housing RCP 15 POS 2.54mm Crimp ST Product Highlights:15 PositionsWithout ContactsHousing Gender = Connector - ReceptacleHousing Accepts Contact Type = ReceptacleCST-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 2.54mmhousingrcpt.15w,crimp,white,180° TE Connectivity CST-100 系列 2.54mm 节距 15 路 直 母 PCB 壳体
1-770602-3
te connectivity / amp
Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13 POS CST-100 Headers & Wire Housings HSG REC 1X13C STD Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount Product Highlights:CST-100 HousingsNumber of Positions = 13Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 13 Position 2.5 mm Pitch Natural Nylon Rectangular Housing
1-770602-2
te connectivity / amp
Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12 POS CST-100 2.54mm housing rcpt.12w,crimp,white,180° Headers & Wire Housings CST-100 12P HSG Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:CST-100 HousingsNumber of Positions = 12Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Nylon;Receptacle;12;White;Crimp;180deg;0.1in.;UL94V-0 TE Connectivity CST-100 系列 2.54mm 节距 12 路 直 母 PCB 壳体
1-770602-4
te connectivity / amp
Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 14 POS CST-100 Headers & Wire Housings 14P CST-100 HSG Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Product Highlights:CST-100 HousingsNumber of Positions = 14Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CST-100CONNHOUSING,14PCST-100HSG
1-770602-0
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 10 POS CST-100 2.54mm housing rcpt.10w,crimp,white,180° Headers & Wire Housings 10P CST-100 HSG Conn Housing RCP 10 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 10Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE TO BOARD CONNECTOR HOUSING Connector;Nylon;Receptacle;10;White;Crimp;180deg;0.1in.;UL94V-0
1-770602-6
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 16 POS CST-100 Headers & Wire Housings 16P CST 100 CONN HSG Conn Housing RCP 16 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 16Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

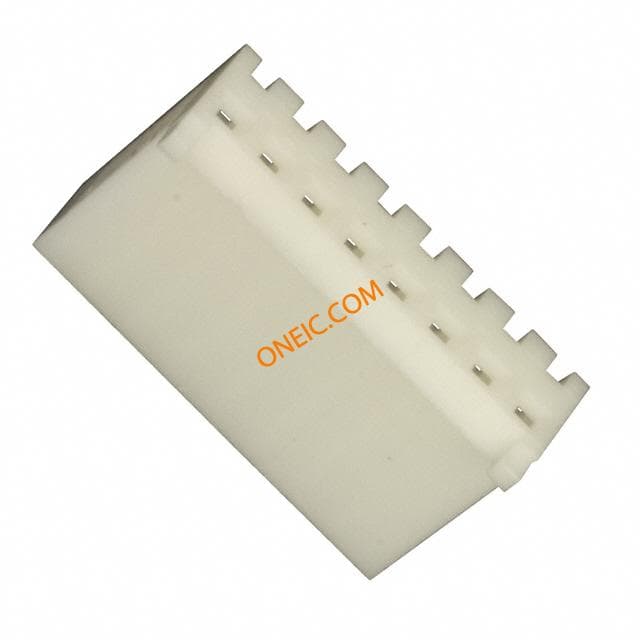

770602-8
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 8 POS CST-100 8 way socket housing,2.54mm pitch Headers & Wire Housings 08P CST 100 HSG Conn Housing RCP 8 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 8Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 8WAY Connector;Nylon;Receptacle;8;White;Crimp;180deg;0.1in.;UL94V-0 TE Connectivity CST-100 系列 2.54mm 节距 8 路 直 母 电缆安装 PCB 壳体
1-770602-8
te connectivity / amp
Conn Housing RCP 18 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 18POS CST-100 CRIMP Headers & Wire Housings 18P CST 100 CONN HSG Conn Housing RCP 18 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 18Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
2-770602-4
te connectivity / amp
Conn Housing RCP 24 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 24POS CRIMP CST-100 Headers & Wire Housings 24P CST 100 CONN HSG Conn Housing RCP 24 POS 2.54mm Crimp ST Product Highlights:Housing24 PositionsConnector Style = ReceptacleContact Gender = ReceptacleCST-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
91302-1
te connectivity / amp

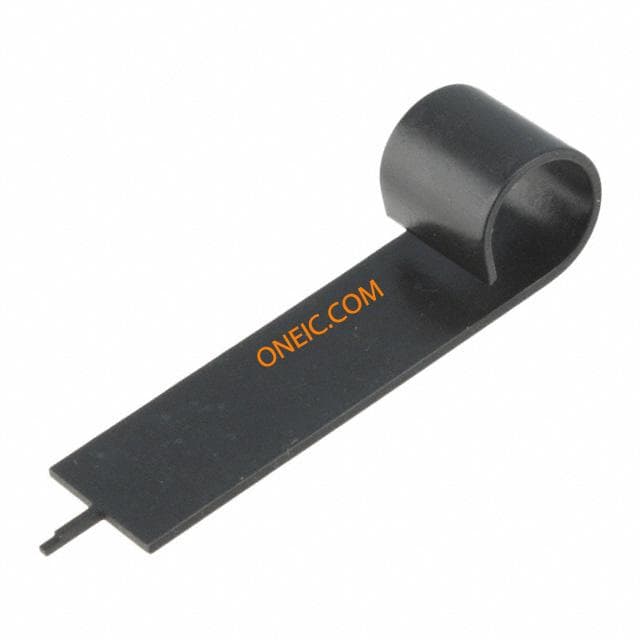

CST-100 Extraction Tool Hand Tools CST-100 EXTRACTION TOOL TOOL CST-100 EXTRACTION CST-100 EXTRACTION TOOL Extraction tool, 91302-1, TE Connectivity TE Connectivity CST-100 系列 拔插件工具 , 适用于插座
