1-770602-8
| Manufacturer | |
| Description | Conn Housing RCP 18 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 18POS CST-100 CRIMP Headers & Wire Housings 18P CST 100 CONN HSG Conn Housing RCP 18 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 18Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Mechanical
| Color | Natural | Pitch | 2.54 mm |
| Packaging | Bulk | Shrouding | No |
| Cable Exit | 180° | Contact Type | Female Socket |
| 2nd Connector | With | Housing Color | White |
| Mounting Type | Straight | Connector Type | Crimp |
| Fastening Type | Locking Ramp | Number of Rows | 1 |
| Connector Usage | Receptacle | Housing Material | Nylon |
| Mounting Feature | Without | Panel Mount Type | Without |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | With | Number of Contacts | 18 |
| Contact Termination | Crimp | Number of Positions | 18 |
| Contact Layout, Typical | 2.54 [0.100] | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | CST-100 |
| Manufacturer | AMP | Product Type | CST-100 Housings |
| Application Specifics | Wire-to-Board | ||
Documents & Media
Similar Parts
770601-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG TIN CRIMP Contact female,crimp,26-22AWG,CST-100 Headers & Wire Housings CST-100 CRIMP TERM Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, SOCKET, 26-22AWG CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CST-100CONTACTSTRIPSN Contact; female; 22÷26AWG; CST-100

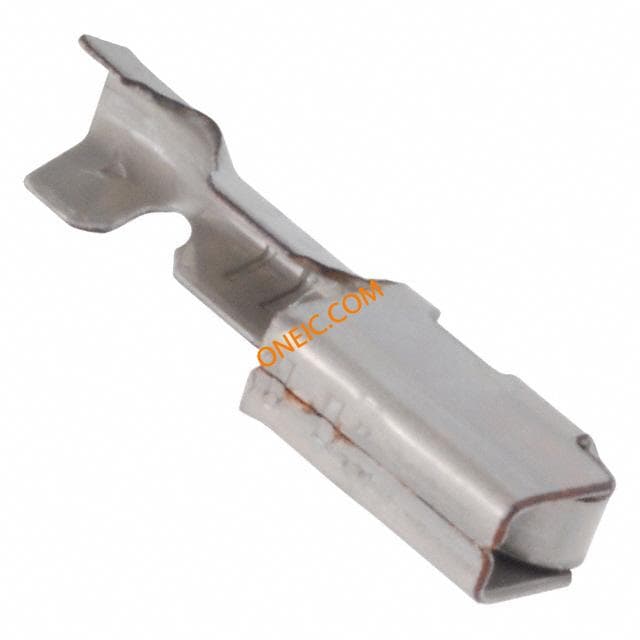

770601-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG GOLD CRIMP Contact female crimp 26-22AWG CST-100 Headers & Wire Housings CST-100 CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpGold (30) Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CST-100CONNCONTACTS,CST-100CONTACTSTRIPAU TE Connectivity CST-100 系列 母 压接接线端子, 压接, 镀金镀镍触点

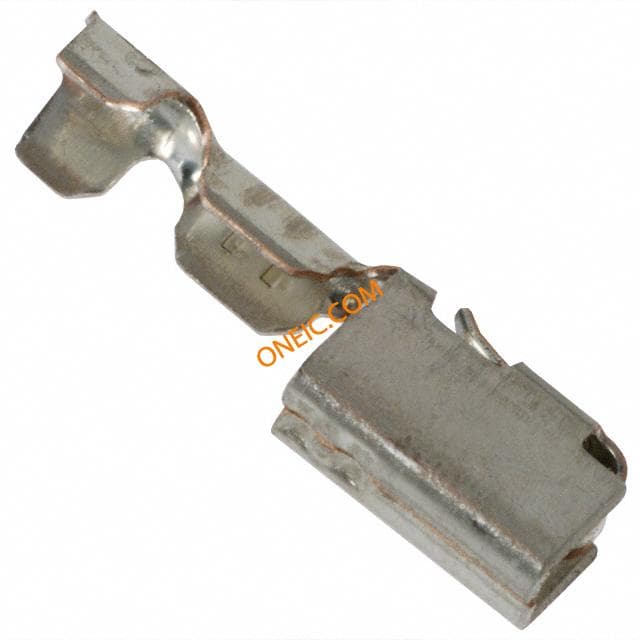

770666-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN TERM CRIMP CST-100 TIN Tin plated crimp contact Headers & Wire Housings CST-100 CRIMP CNT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:CST-100 ContactsWire Termination Type = CrimpTin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 26-22AWG Contact;PhosphorBronze;26-22AWG;Box;0.065in.;Tin;Crimp TE Connectivity CST-100 系列 母 压接触点, 压接, 镀锡触点

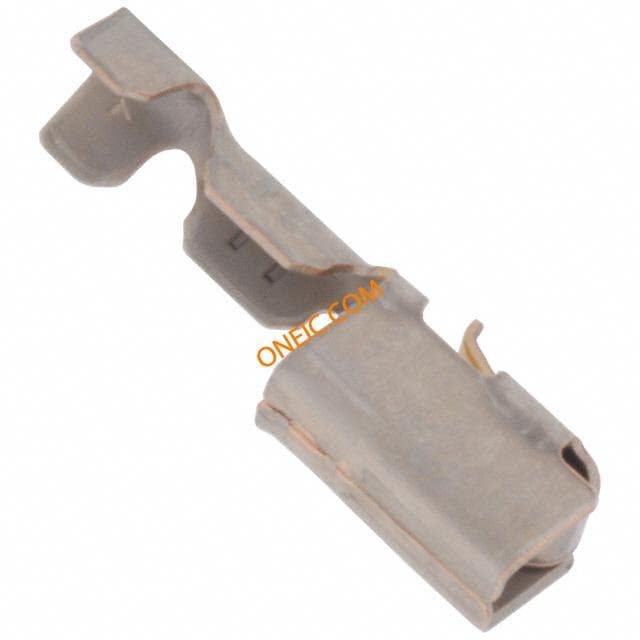

770666-2
