770602-6
| Manufacturer | |
| Description | Conn Housing RCP 6 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6 POS CST-100 6 way socket housing,2.54mm pitch Headers & Wire Housings 6POS CST-100 HSNG Conn Housing RCP 6 POS 2.54mm Crimp ST Product Highlights:CST-100 HousingsNumber of Positions = 6Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CRIMP HOUSING, CST 100, 6WAY Connector;Nylon;Receptacle;6;White;Crimp;180deg;0.1in.;UL94V-0 TE Connectivity CST-100 系列 2.54mm 节距 6 路 直 母 电缆安装 PCB 壳体 |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant |
| Tariff No | 85322400 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - CST-100 Series | Switch Function | Unlatched |
| Current Rating (Max) | 5/Contact A | Insulation Resistance | :1000Mohm |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Natural | Depth | 12.95mm |
| Pitch | 2.54 mm | Width | 6.6mm |
| Height | 6.6 mm | Length | 15.75mm |
| Weight | 0.049 | Material | :Natural, Nylon UL94V-0 |
| Packaging | Bulk | Shrouding | No |
| Cable Exit | 180° | Termination | :Crimp |
| Contact Type | Female Socket | 2nd Connector | With |
| Housing Color | White | Mounting Type | Straight |
| Angle of Throw | Straight° | Connector Type | Crimp |
| Contact Finish | 2.54 [0.100] | Fastening Type | Locking Ramp |
| Mounting Style | Free Hanging | Number of Rows | 1 |
| Connector Usage | Receptacle | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Length - Overall | 15.75 mm |
| Mounting Feature | Without | Package Quantity | 500 |
| Panel Mount Type | Without | Primary Material | InterconnectSystem |
| Wire Termination | Crimp | Pin Hole Diameter | 0.1" |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Without | Number of Contacts | 6 |
| Contact Termination | Crimp | Number of Positions | 6 |
| Center Contact Finish | 0.1 | 1st Connector Mounting Type | :PCB |
Product Info
| Note | Accepts Contact Part No. 770601-1. | Type | Housing |
| Gender | RCP | Series | CST-100 |
| Manufacturer | AMP | Product Type | CST-100 Housings |
| Application Specifics | Wire-to-Board | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
GLD140D
Condor / SL Power
Linear and Switching Power Supplies 140W +5/+24/+12/-12V
770601-1
te connectivity / amp

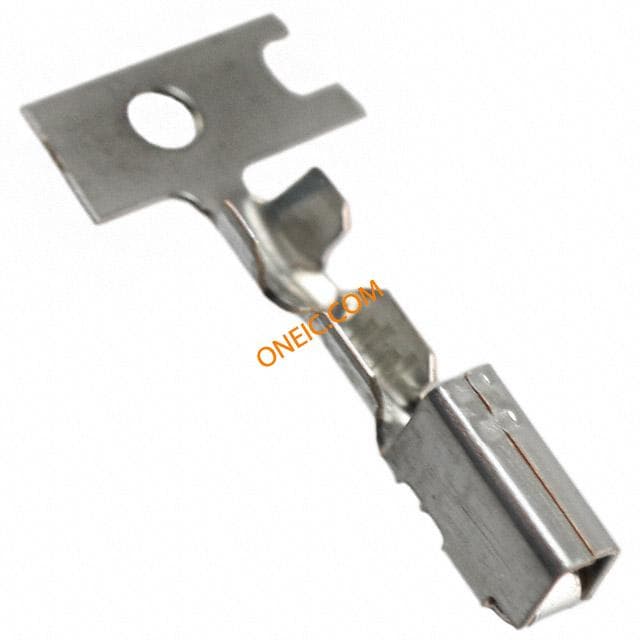

Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG TIN CRIMP Contact female,crimp,26-22AWG,CST-100 Headers & Wire Housings CST-100 CRIMP TERM Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, SOCKET, 26-22AWG CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CST-100CONTACTSTRIPSN Contact; female; 22÷26AWG; CST-100
770601-2
te connectivity / amp

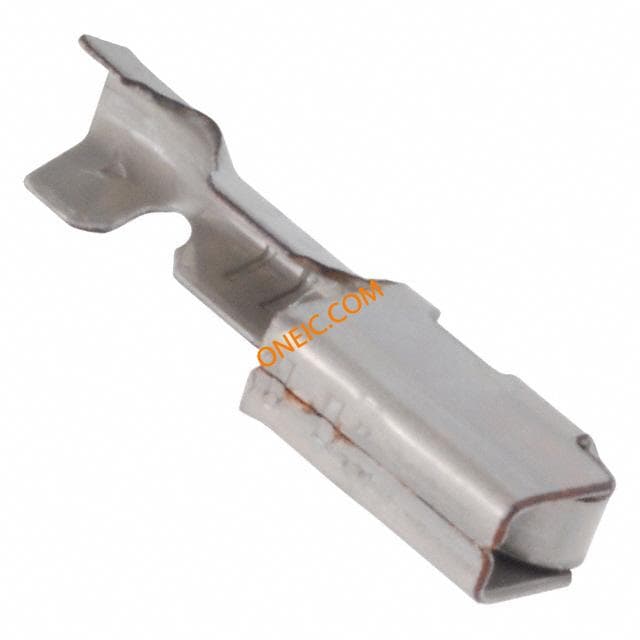

Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG GOLD CRIMP Contact female crimp 26-22AWG CST-100 Headers & Wire Housings CST-100 CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpGold (30) Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CST-100CONNCONTACTS,CST-100CONTACTSTRIPAU TE Connectivity CST-100 系列 母 压接接线端子, 压接, 镀金镀镍触点
770666-1
te connectivity / amp

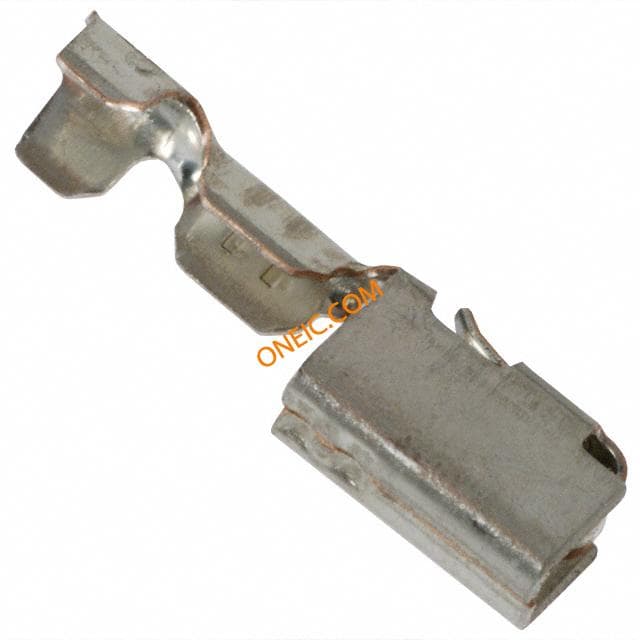

Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN TERM CRIMP CST-100 TIN Tin plated crimp contact Headers & Wire Housings CST-100 CRIMP CNT Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:CST-100 ContactsWire Termination Type = CrimpTin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 26-22AWG Contact;PhosphorBronze;26-22AWG;Box;0.065in.;Tin;Crimp TE Connectivity CST-100 系列 母 压接触点, 压接, 镀锡触点
770666-2
te connectivity / amp

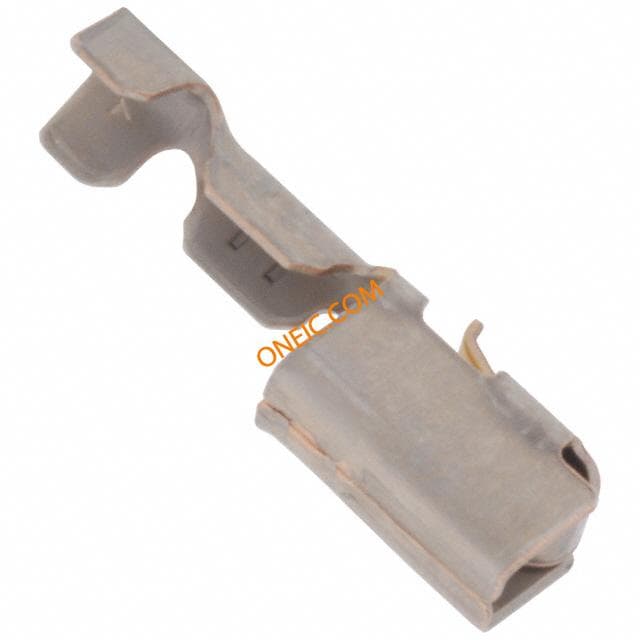

Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG GOLD CRIMP Gold plated crimp contact Headers & Wire Housings CST-100 CRIMP TERM Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:CST-100 ContactsWire Termination Type = CrimpGold (30) over Nickel Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, PIN, CRIMP CONTACT,RECEPTACLE,CST-100,26-22AWG,GOLD(30)OVERNICKEL,CRIMP TE Connectivity CST-100 系列 母 压接触点, 压接, 镀金镀镍触点
