2-770602-0
| Manufacturer | |
| Description | Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 20POS CRIMP CST-100 CST-100 Receptacle Housing 2.54mm 20P Headers & Wire Housings 20P RECPT HSG WHT CST-100 Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing20 PositionsHousing Type = ReceptacleCST-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Nylon;Receptacle;20;White;Crimp;180deg;0.1in.;UL94V-0 |
| Category |
Business
| Other Names | 27706020 | Part # Aliases | 512-3966 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | CSA,UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Mechanical
| Color | Natural | Pitch | 2.54 mm |
| Length | 2.02in | Packaging | Bulk |
| Shrouding | No | Cable Exit | 180° |
| Termination | Crimp | Contact Type | Female Socket |
| 2nd Connector | Without | Housing Color | White |
| Mounting Type | Straight | Angle of Throw | Straight° |
| Connector Type | Crimp | Fastening Type | Locking Ramp |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Housing Material | Nylon | Length - Overall | 2.02" |
| Mounting Feature | Without | Panel Mount Type | Without |
| Primary Material | InterconnectSystem | Wire Termination | Crimp |
| Pin Hole Diameter | 0.1" | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Mating Orientation | Without |
| Number of Contacts | 20 | Contact Termination | Crimp |
| Number of Positions | 20 | Center Contact Finish | 0.1 |
| Contact Layout, Typical | 2.54 [0.100] | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | CST-100 |
| Manufacturer | AMP | Product Type | CST-100 Housings |
| Application Specifics | Wire-to-Board | ||
Environmental
| Operating Temperature | +105°C | ||
Similar Parts

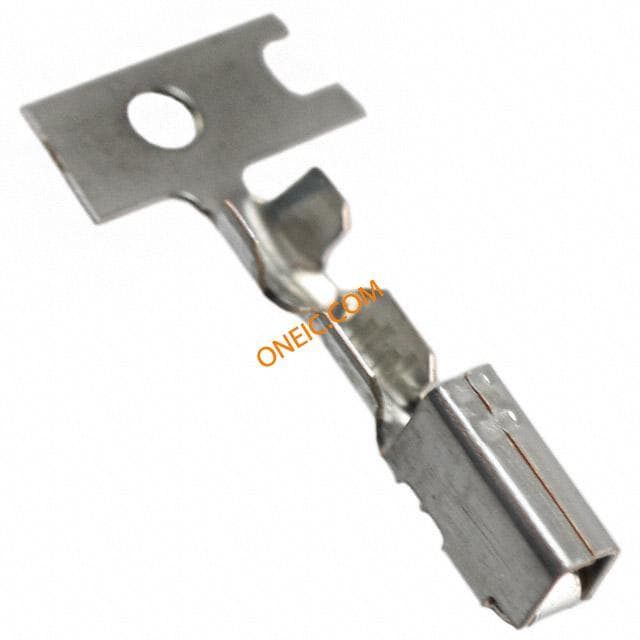

770601-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG TIN CRIMP Contact female,crimp,26-22AWG,CST-100 Headers & Wire Housings CST-100 CRIMP TERM Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, SOCKET, 26-22AWG CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CST-100CONTACTSTRIPSN Contact; female; 22÷26AWG; CST-100

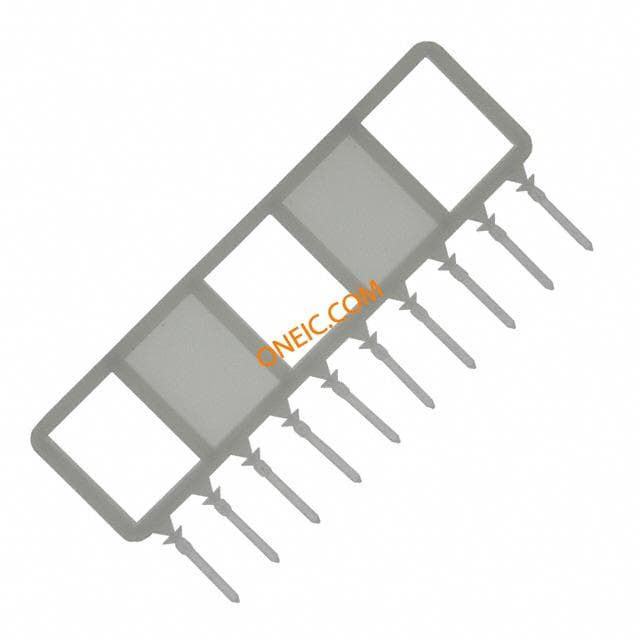

641994-1
