66507-4
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts CRIMP PIN 28-24 Standard Cable Connectors CONN PIN 24-28AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, 28-24AWG, CRIMP CONTACT,PIN,HDP-20,PLATED,CRIMP,.76-1.02MM HDP20 Series 24-28 AWG Insulation Support Crimp Snap Pin Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 针 D-sub 连接器触点, 镀金 触点, 28 → 24 AWG HD 20 DF PIN PLTD |
| Category |
Business
| Product Category | D-Sub Contacts | Standard Package | 10,000 |
| Factory Pack Quantity | 10000 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | ||
Mechanical
| Depth | 2.16 mm | Pitch | Not Required mm |
| Weight | 0.002 | Plating | Gold |
| Material | Brass | Packaging | Reel |
| Wire Gauge | 28-24 | Termination | Crimp |
| Contact Size | 20DF | Contact Type | Signal |
| Pin Diameter | 1.02 [0.040] | Mounting Type | Straight |
| Pin or Socket | Pin | Connector Type | Connector D-Subminiature |
| Contact Finish | Gold Over Nickel | Mounting Style | Cable |
| Contact Material | Brass | Housing Material | Not Required |
| Package Quantity | Strip | Insulation Height | Yes |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Number of Contacts | Not Required | Contact Termination | Crimp Snap-In |
| Insulation Diameter | 0.76 â 1.02 [0.030 â 0.040] | Plating - Thickness | Flash |
| Wire Gauge or Range - AWG | 0.08 - 0.20 [28-24] | ||
Product Info
| Type | Stamped | Grade | Standard |
| Gender | PIN | Series | HDP-20 |
| Product Type | Contact | Number of Ports | 1 Port |
| For Use With/Related Products | :CPC Connectors, AMPLIMITE HDP-20 | For Use With/Related Manufacturer | CPC Connectors, AMPLIMITE HDP-20 |
Documents & Media
Similar Parts
1658642-1
te connectivity / amp
Conn Housing PL 9 POS Crimp ST D-Sub Standard Connectors DSUB E09P CRIMP Standard Cable Connectors CONN D-SUB HOUSING PLUG 9POS AMPLIMITE HDP-20 d-sub cable plug,9 pin Conn Housing PL 9 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, D-SUB, MALE Conn;D-Sub;CablePlug;9Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 9路 直 压接式 D-sub 连接器, 插头 HDP-20,PLUG,SIZE 1, 9 POSN,CLI
205840-3
te connectivity / amp
Conn CPC PIN 28 POS Crimp ST Panel Mount 28 Terminal 1 Port CPC Connectors CONN RECEPT CPC 28POS STD SER 2 28 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector REC SQUARE STD 17-28 Conn CPC PIN 28 POS Crimp ST Panel Mount 28 Terminal 1 Port Product Highlights:Without Contacts28 Positions28 Signal Positions0 Power PositionsHousing Gender = ReceptacleSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR, RECEPTACLE, 17-28, PANEL ConnectorHousing;CPCRecept.Assy;28Pos;Sz17;Series2;PanelMnt;StdSex Receptacle CPC2 Poles=28, accepts male contacts / with flange, 205840-3, TE Connectivity TE Connectivity 28路 面板安装 直向 连接器 插座 , 公触点 CPC RECPT ASSEMBLY SIZE 17-28
91285-1
te connectivity / amp
Straight Action Hand Tool, Insertion/Extraction Tool D-Sub Tools & Hardware INSERT/EXTRACT TOOL W/6 TIPS & WRENCH INSERTION/EXTRACTION TOOL HDP-22 AMPLIMITE HD20, HD22 insert,extract tool INSERTION/EXTRACTION TOOL INSERTION/EXTRACTIONTOOLFORSZ.20CRIMP&SOLDERCUPCONTACTS Insertion/Extraction Tool Kit Contains 6 Tips With Plug And Hex Wrench Ejector tool, 91285-1, TE Connectivity TE Connectivity AMPLIMITE 系列 拔插件工具 插芯 , 尺寸20, 22 INSERT/EXTRACT TOOL ASSEMBLY
2-592404-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Junction System Contacts Contact Size 20 Terminal Junction System (TJS) Module & Splice Assemblies CONN PIN SIZE 20 GOLD CRIMP Contact PIN Crimp ST Cable Mount Product Highlights:ContactSize = 20Length = 10.62 mmSearch Keywords:compact, pre-bussed, 5000-027-0020
745908-2
TE Connectivity / AMP
D-Sub Standard Connectors DSUB A15P CRIMP CONN D-SUB PLUG 15POS CRIMP
207464-7
te connectivity / amp
Conn Housing PL 25 POS Crimp ST D-Sub Standard Connectors HDP-20 25P PLUG Standard Cable Connectors CONN D-SUB HOUSING PLUG 25POS AMPLIMITE HDP-20 Cable Plug 3mm hole 25P Conn Housing PL 25 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 25PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB SHELL, PLUG, SIZE 3, STEEL Conn;D-Sub;CablePlug;25Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell TE Connectivity AMPLIMITE HDP-20系列 25路 直 压接式 D-sub 连接器, 插头 HDP-20,PLUG,SIZE 3, 25 POSN
208492-1
te connectivity / amp

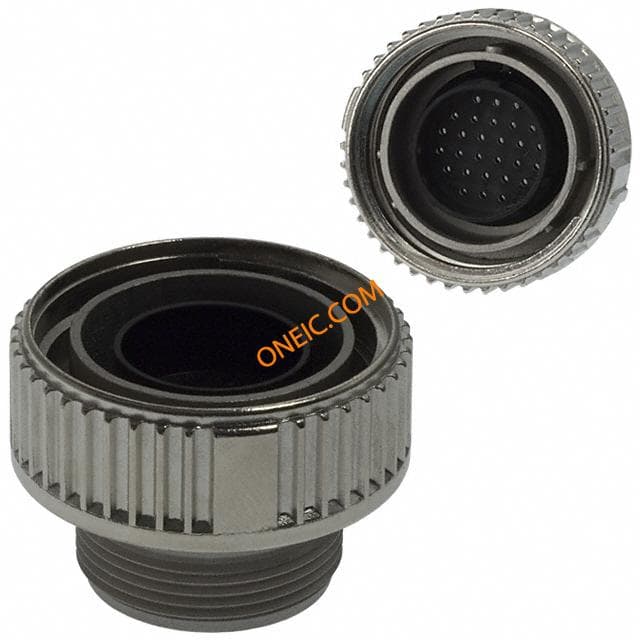

Conn Metal Shell CPC PIN 28 POS Crimp ST Cable Mount 28 Terminal 1 Port CPC Connectors CONN PLUG CPC 28POS REV SER 2 28 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 22 with Male Contacts Standard Circular Connector PLUG REVERSE 22-28 Conn Metal Shell CPC PIN 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;MetalShellCPC;PlugAssy;28Pos.;Sz.22;Series2;FreeHanging PLUG ASSY,SZ 22,CMC
