205840-3

Business

Lead Time	28 Days	Tradename	CPC Series 2
Subcategory	Connector Circular	Product Category	Standard Circular Connector
Standard Package	Bulk	Factory Pack Quantity	100

RoHS	Lead free / RoHS Compliant	Tariff No	85369010
Compliance	No	Rad Hardened	No
Leadfree Defin	Not relevant for lead free process	RoHSELV Compliance	RoHS compliant, ELV compliant
Material Flammability Rating	UL 94V-0

Voltage - Working	:250V	Number of Channels	28
Current Rating (Max)	7.5A	Insulation Resistance	:5000Mohm

Color	Black	Depth	36.45 mm
Height	36.45 mm	Sealed	No
Weight	0.008	Packaging	Bulk
Cable Exit	No	Shell Size	17
Orientation	Keyed	Shell Style	Receptacle
Termination	Crimp	Thread Size	15/16-20 UNEF-2A
Contact Form	28Signal	Contact Size	20
Contact Type	Crimp	Housing Color	Black
Mounting Type	Panel Mount	Angle of Throw	Straight
Connector Type	Receptacle for Male Contacts	Fastening Type	Threaded
Mounting Style	Panel	Connector Style	Receptacle
Insertion Angle	:17-28	Material - Body	:Thermoplastic
Panel Thickness	0.125"	Housing Material	Thermoplastic
Length - Overall	20.55 mm	Panel Mount Type	Square Flange
Primary Material	CircularPlasticConnector	Termination Style	Wire
1st Contact Gender	Male	Color - Connectors	:Black
Mating Orientation	Keyed	Number of Contacts	28
Contact Tail Length	20D	Insulation Diameter	1.73 [0.068]
Number of Positions	28	Shell Size - Insert	All Plastic
Mounting Hole Diameter	3.81 [.150]	Shell Material, Finish	Thermoplastic
1st Connector Mounting Type	:Panel	2nd Connector Mounting Feature	Standard
Shell Size - Insert (Convert To)	17-28

Note	Contacts Not Provided	Type	CPC
Gender	RCP	Series	Series 2
Preloaded	No	Arrangement	17-28
CAD Drawing	3D CAD Model	Manufacturer	Series2
Product Type	Connector	RF Family/Standard	205840
Other Specifications	Without	Application Specifics	Commercial

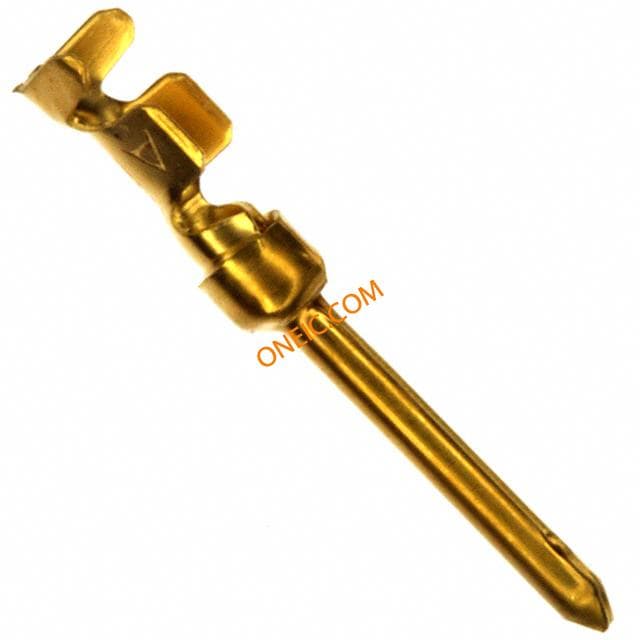

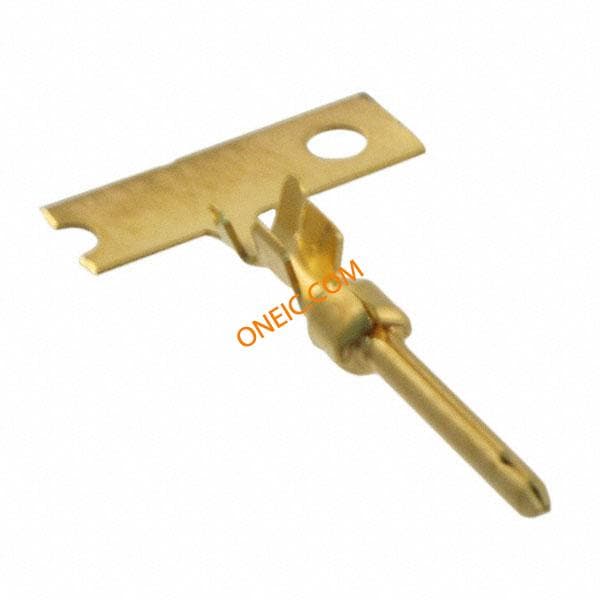

For Use With/Related Products	Pin Contacts
