206434-1
| Manufacturer | |
| Description | Conn CPC PIN 8 POS Crimp ST Cable Mount 8 Terminal 1 Port CPC Connectors CONN PLUG CPC 8POS REV SER 2 8 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 11 with Male Contacts Standard Circular Connector PLUG REVERSE 11-8 Conn CPC PIN 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 8PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 11-8, CABLE ConnectorHousing;CPCPlugAssy;8Pos.;Sz.11;Series2;FreeHang;RevSex Connector: circular; Series: CPC Series 2; plug; male; PIN:8 Plug CPC2 Poles=8, accepts male contacts / Free hanging/cable mount, 206434-1, TE Connectivity TE Connectivity 8路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 11-8 |
| Category |
Business
| Lead Time | 28 Days | Tradename | CPC Series 2 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Compliance | No | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | :250V | Coupling Factor | With |
| Voltage - Working | :250V | Number of Channels | 8 |
| Current Rating (Max) | :7.5A | Insulation Resistance | :5000Mohm |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Black | Sealed | No |
| Weight | 0.004 | Diameter | 24.77 mm |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 11 | Orientation | Keyed |
| Shell Style | Plug | Termination | Crimp |
| Thread Size | 5/8 - 24 UNEF-2A | Contact Form | 8Signal |
| Contact Size | 20 | Contact Type | Crimp |
| Housing Color | Black | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Plug for Male Contacts |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Package / Case | :Glass filled nylon 6.6 | Connector Style | Plug |
| Insertion Angle | :11-8 | Locking Feature | threaded joint, internal thread |
| Material - Body | :Thermoplastic | Material - Core | Nylon |
| Housing Material | Thermoplastic | Length - Overall | 20.32 mm |
| Primary Material | CircularPlasticConnector | Connector - Cable | plug |
| Termination Style | Wire | 1st Contact Gender | Male |
| Color - Connectors | :Black | Mating Orientation | Keyed |
| Number of Contacts | 8 | Contact Tail Length | 20D |
| Insulation Diameter | 1.73 [0.068] | Number of Positions | 8 |
| Shell Size - Insert | All Plastic | Shell Material, Finish | Thermoplastic |
| 1st Connector Mounting Type | :Cable | 2nd Connector Mounting Feature | Reverse |
| Shell Size - Insert (Convert To) | 11-8 | ||
Product Info
| Note | Contacts Not Provided | Type | CPC |
| Gender | PL | Series | Series 2 |
| Features | ReverseGender | Preloaded | No |
| Arrangement | 11-8 | Manufacturer | Series2 |
| Product Type | Connector | Adapter Series | CPC Series 2 |
| Number of Units | 1 | RF Family/Standard | 206434 |
| Other Specifications | Without | Application Specifics | Commercial |
| For Use With/Related Products | Pin Contacts | ||
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
66506-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, CRIMP CONTACT, CRIMP, PIN, 24-20AWG, REEL CONTACT,PIN,HDP-20,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF PIN
182658-1
te connectivity / amp
Connector Accessories Cable Clamp Thermoplastic Black CPC Accessories CONN CABLE CLAMP CPC SIZE 11 CPC cable clamp,Shell size 11B Standard Circular Connector 11 SIZE STD CLAMP Cable Clamps and Clips Clamp Thermoplastic Black Individual Cable Clamps and Clips Clamp Screw Thermoplastic Black Individual Cable Clamps and Clips Clamp Screw Thermoplastic Black Individual Product Highlights:Cable ClampShell Size = 11Body Style = StraightCable Diameter (Max.) = 8.36 mmThermoplastic Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CABLE CLAMP, SIZE 11 Cabel hood and fastener; Series: CPC; Case: size 11; UL94V-0 Cap size 11 8.3 mm, 182658-1, TE Connectivity TE Connectivity 黑色 热塑塑料 电缆夹, 8.36mm 捆束直径 11 SIZE CPC STD CLAMP
206433-1
te connectivity / amp
Conn CPC SKT 8 POS Crimp ST Panel Mount 8 Terminal 1 Port CPC Connectors CONN RECEPT CPC 8POS REV SER 2 8 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 11 with Female Contacts Standard Circular Connector RECP SQUARE REV 11-8 Conn CPC SKT 8 POS Crimp ST Panel Mount 8 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 8ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, SOCKET CONTACT, 8WAY ConnectorHousing;CPCRecept.Assy;8Pos.;Sz11;Series2;PanelMnt;RevSex Connector: circular; Series: CPC Series 2; socket; female; PIN:8 Receptacle CPC2 Poles=8, accepts female contacts / with flange, 206433-1, TE Connectivity TE Connectivity 8路 面板安装 直向 连接器 插座 , 母触点 CPC RECPT ASSEMBLY SIZE 11-8
2-66507-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts 20DF PIN 28-24 BR/AU Standard Cable Connectors CONN PIN 28-24AWG 50GOLD Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HD 20 CONT,AU PLTD

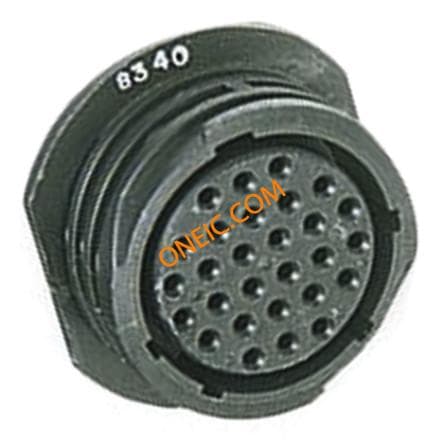

206433-3
