205841-1
| Manufacturer | |
| Description | Conn CPC PIN 8 POS Crimp ST Panel Mount 8 Terminal 1 Port CPC Connectors CONN RECEPT CPC 8POS STD SER 2 8 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 11 with Male Contacts Standard Circular Connector RECP SQUARE STD 11-8 Conn CPC PIN 8 POS Crimp ST Panel Mount 8 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 8ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, PIN CONTACT, 8WAY ConnectorHousing;CPCRecept.Assy;8Pos.;Sz11;Series2;PanelMnt;StdSex Receptacle CPC2 Poles=8, accepts male contacts / with flange, 205841-1, TE Connectivity TE Connectivity 8路 面板安装 直向 连接器 插座 , 公触点 CPC RECPT ASSEMBLY SIZE 11-8 |
| Category |
Business
| Lead Time | 49 Days | Tradename | CPC Series 2 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Compliance | No | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | :250V | Voltage - Working | :250V |
| Number of Channels | 8 | Current Rating (Max) | :7.5A |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Color | Black | Depth | 28.58 mm |
| Height | 28.58 mm | Sealed | No |
| Weight | 0.004 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 11 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Crimp | Thread Size | 5/8 - 24 UNEF-2A |
| Contact Form | 8Signal | Contact Size | 20 |
| Contact Type | Crimp | Housing Color | Black |
| Mounting Type | Panel Mount | Angle of Throw | Straight |
| Connector Type | Receptacle for Male Contacts | Fastening Type | Threaded |
| Mounting Style | Panel | Connector Style | Receptacle |
| Insertion Angle | :11-8 | Material - Body | :Thermoplastic |
| Panel Thickness | 0.125" | Housing Material | Thermoplastic |
| Length - Overall | 20.55 mm | Panel Mount Type | Square Flange |
| Primary Material | CircularPlasticConnector | Termination Style | Wire |
| 1st Contact Gender | Male | Color - Connectors | :Black |
| Mating Orientation | Keyed | Number of Contacts | 8 |
| Panel Cutout Shape | :21.5mm | Contact Tail Length | 20D |
| Insulation Diameter | 1.73 [0.068] | Number of Positions | 8 |
| Shell Size - Insert | All Plastic | Mounting Hole Diameter | 3.18 [.125] |
| Shell Material, Finish | Thermoplastic | 1st Connector Mounting Type | :Panel |
| 2nd Connector Mounting Feature | Standard | Shell Size - Insert (Convert To) | 11-8 |
Product Info
| Note | Contacts Not Provided | Type | CPC |
| Gender | RCP | Series | Series 2 |
| Preloaded | No | Arrangement | 11-8 |
| Manufacturer | Series2 | Product Type | Connector |
| RF Family/Standard | 205841 | Other Specifications | Without |
| Application Specifics | Commercial | For Use With/Related Products | Pin Contacts |
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
66506-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, CRIMP CONTACT, CRIMP, PIN, 24-20AWG, REEL CONTACT,PIN,HDP-20,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF PIN
66506-2
te connectivity / amp

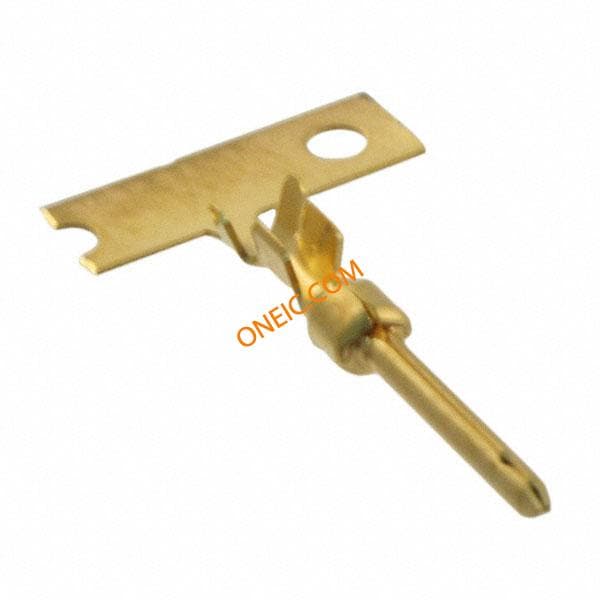

Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONTACT PIN 20-24AWG CRIMP GOLD Standard Circular Connector PIN CONTACT 20 DF PIN 24-20 AWG 50 AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PIN CONTACT 20 DF
2-66507-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts 20DF PIN 28-24 BR/AU Standard Cable Connectors CONN PIN 28-24AWG 50GOLD Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HD 20 CONT,AU PLTD
207489-1
te connectivity / amp

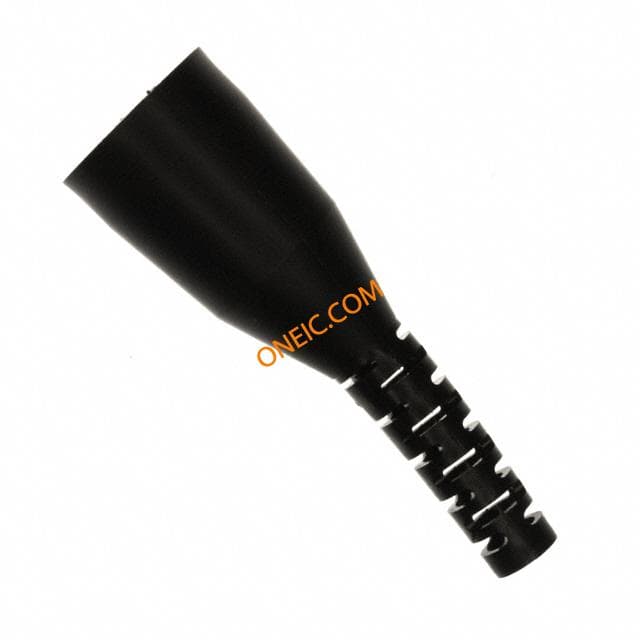

Connector Accessories CPC Connector Boot Thermoplastic Black CPC Accessories CONN BOOT SEAL SIZE 11 FLEXIBLE Cable Boots FLEXIBLE CBL BOOT 11 Connector Accessories CPC Connector Boot Thermoplastic Black Product Highlights:BootShell Size = 11Cable Grip Range = 3.81 - 6.35 mmSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CABLE BOOT, FLEXIBLE, SIZE 11 CPCFLEXIBLECABLEBOOT,SZ.11 FLEXIBLE CABLE BOOT, SIZE 11
207490-1
te connectivity / amp

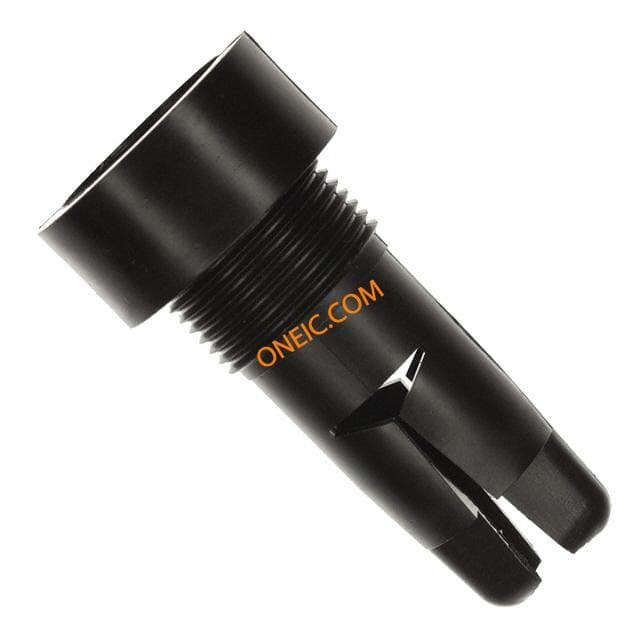

Cable Accessories Grip Thermoplastic Black CPC Accessories CONN CABLE GRIP CPC 3.81-6.35MM Cable grip size 11 CPC Standard Circular Connector INTERNAL CBL GRIP 11 Cable Accessories Grip Thermoplastic Black Product Highlights:Cable GripShell Size = 11Cable Grip Range = 3.81 - 6.35 mmSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CONNECTOR CABLE GRIP, CIRCULAR CPCINTERNALCABLEGRIP,SZ.11 Cable Grip, size 11 3.81...6.35 mm, 207490-1, TE Connectivity TE Connectivity 电缆夹 CABLE GRIPPER, SIZE 11
208800-1
te connectivity / amp

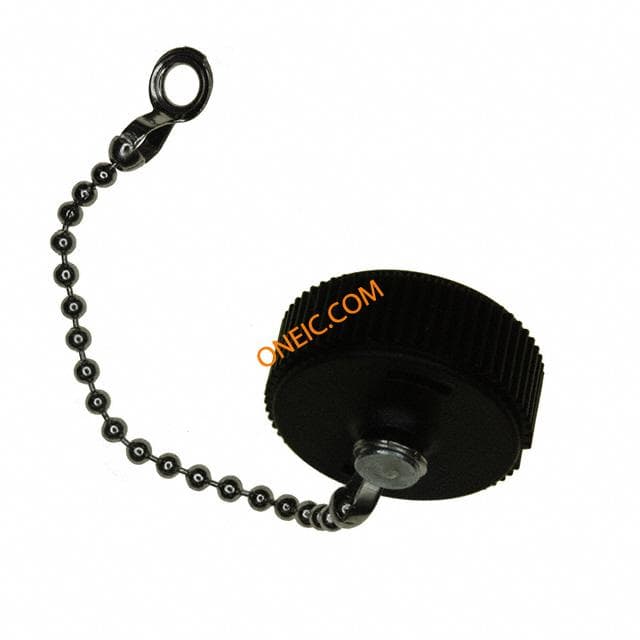

Connector Accessories Sealing Cap Thermoplastic Black CPC Accessories CONN CAP SEAL SIZE11 METAL CHAIN Dust cap with metal chain,Size 11 Standard Circular Connector SLG CAP METAL 11 Connector Accessories Sealing Cap Thermoplastic Black Product Highlights:Sealing CapShell Size = 11Metal Bead Chain Cap To Flange AttachmentSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, SEALING CAP, CHAIN CPCSEALINGCAP(FORRECEPT.ONLY);W/BEADEDCHAIN;SHELLSZ.11,FORSERIES1&2 Protective cap CPC, size 11, 208800-1, TE Connectivity TE Connectivity CPC 系列 防尘盖, 尺寸11 SEALING CAP ASSY,SZ 11,CPC
206358-5
te connectivity / amp
Connector Accessories Clamp Thermoplastic Black Zinc Individual Standard Circular Connector LARGE CABLE CLAMP 11 CPC Accessories CONN CABLE CLAMP CPC SIZE 11 BLK Cable clampkit,large,shell size 11,CPC Connector Accessories Clamp Thermoplastic Black Zinc Individual Product Highlights:Cable ClampShell Size = 11Body Style = StraightCable Diameter (Max.) = 11.51 mmThermoplastic Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CIRCULAR CABLE CLAMP, SIZE 11, PLASTIC Clamp,Cable;CPCConnectors;11;0.453in.(Max.);5/8-24UNEF-2B Cabel hood and fastener; Series: CPC; Case: size 11; UL94V-1 Cable Clamp Large ,Housing size 11, Size 5/8-24, 206358-5, TE Connectivity TE Connectivity 黑色 热塑塑料 电缆夹, 11.51mm 捆束直径 CABLE CLAMP ASY, SIZE 11
66507-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts CRIMP PIN 28-24 Standard Cable Connectors CONN PIN 24-28AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT,PIN,HDP-20,CRIMP,.76-1.02MM HDP20 Series 24-28 AWG Insulation Support Crimp Snap Pin Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 针 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG 20 DF PIN
66507-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts CRIMP PIN 28-24 Standard Cable Connectors CONN PIN 24-28AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, 28-24AWG, CRIMP CONTACT,PIN,HDP-20,PLATED,CRIMP,.76-1.02MM HDP20 Series 24-28 AWG Insulation Support Crimp Snap Pin Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 针 D-sub 连接器触点, 镀金 触点, 28 → 24 AWG HD 20 DF PIN PLTD
205838-1
te connectivity / amp
Conn CPC SKT 8 POS Crimp ST Cable Mount 8 Terminal 1 Port CPC Connectors CONN PLUG CPC 8POS STD SER 2 8 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 11 with Female Contacts Standard Circular Connector PLUG STANDARD 11-8 Conn CPC SKT 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 8PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 11-8, CABLE ConnectorHousing;CPCPlugAssy;8Pos.;Sz.11;Series2;FreeHang;StdSex Connector: circular; Series: CPC Series 2; plug; female; PIN:8 Plug CPC2 Poles=8, accepts female contacts / Free hanging/cable mount, 205838-1, TE Connectivity TE Connectivity 8路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 11-8
1-66506-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP20 pin contact 24 - 20awg Pin & Socket Connectors PIN CONTACT 24-20AWG gold flash o/nickel Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CRIMP PIN, GOLD, 24-20AWG PINCONTACT,20DF HDP-20 Series 24-20 AWG Wire to Cable Crimp Snap Socket Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG PIN CONTACT, 20 DF
1-66507-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts HDP-20 PIN 28-24 AMPLIMITE HD20 Crimp Snap-In CONN D-SUB PIN 24-28AWG AU AMPLIMITE HDP-20 pin crimp contact 20 DF Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CRIMP PIN, GOLD, 28-24AWG D-SubConnector;Pin;28to24AWG;Crimp;0.04in.;GoldFlash;20;Standard TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG PIN CONTACT, 20 DF
66506-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Connector PIN CONTACT 24-20AWG sel gold o/nickel Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, CRIMP, PIN, 24-20AWG Contact,Pin,20DF,Male Crimp Contact 7.5 A, 66506-9, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG PIN CONTACT, 20 DF
66506-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub TERMINAL, 24-20 AWG CONTACT,PIN,HDP-20,PLATED,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG HD 20 DF PIN PLTD
66507-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece CONN PIN 24-28AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts PIN CONTACT 28-24AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CRIMP PIN, GOLD, 28-24AWG PINCONTACT,20DF CONN 24-28AWG Crimp Contact 7.5 A, 66507-9, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG PIN CONTACT, 20 DF
1-206062-4
te connectivity / amp
Connector Accessories CPC Cable Clamp Thermoplastic Black Shell Size 11 Individual CPC Accessories CONN CABLE CLAMP CPC SIZE 11 BLK Cable clamp kit,shell size 11,CPC Standard Circular Connector STD CABLE CLAMP 11 screw lnth .500 Connector Accessories CPC Cable Clamp Thermoplastic Black Shell Size 11 Individual Product Highlights:Cable ClampShell Size = 11Body Style = StraightCable Diameter (Max.) = 8.36 mmThermoplastic Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CIRCULAR CABLE CLAMP, SIZE 11, PLASTIC Clamp,Cable;11;0.329in.(Max.);Black;5/8-24UNEF-2B Cabel hood and fastener; Series: CPC; Case: size 11; UL94V-1 Cable Clamp Standard,Housing size 11, Size 5/8-24, 1-206062-4, TE Connectivity TE Connectivity 黑色 热塑塑料 电缆夹, 8.36mm 捆束直径 CABLE CLAMP KIT #11
213810-1
te connectivity / amp

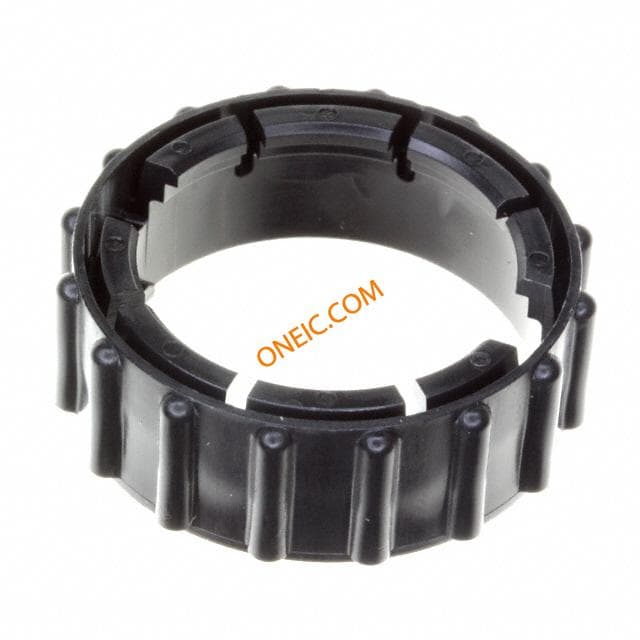

Connector Accessories Coupling Ring Nylon Black CPC Accessories CONN RING COUPLING CPC SIZE 17 Circular Connector Seal Diameter 22.35mm Standard Circular Connector COUPLING RING 17 Connector Accessories Coupling Ring Nylon Black Product Highlights:Coupling RingShell Size = 17Nylon Coupling Ring MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, COUPLING RING, CPC5 CPCCOUPLINGRINGSIZE17 Coupling Ring,Housing size 17, 213810-1, TE Connectivity 连接器封套, 22.35mm直径 CPC COUPLING RING SIZE 17
66506-8
te connectivity / amp

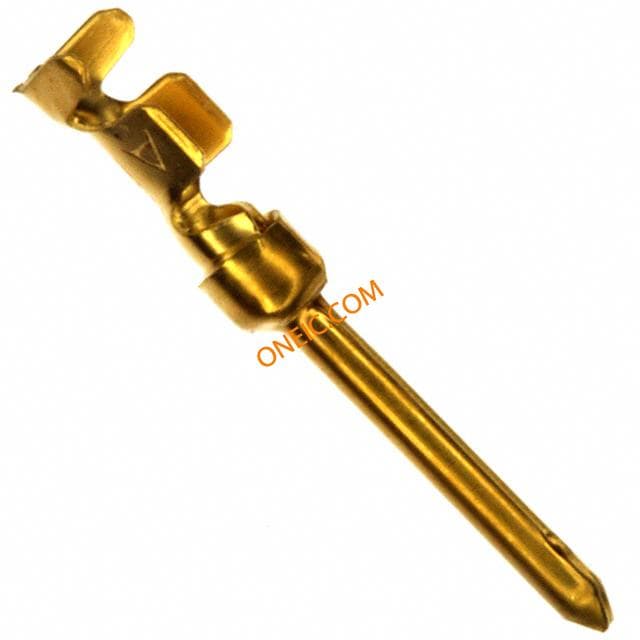

Contact PIN Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONN PIN 20-24 AWG GOLD CRIMP AMPLIMITE HDP-20 Pin Contact 24-20 AWG Standard Circular Connector PIN CONTACT 20 DF Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, PIN, 24-20AWG, CRIMP PINCONTACT,20DF PIN CONTACT, 20 DF
66570-3
te connectivity / amp

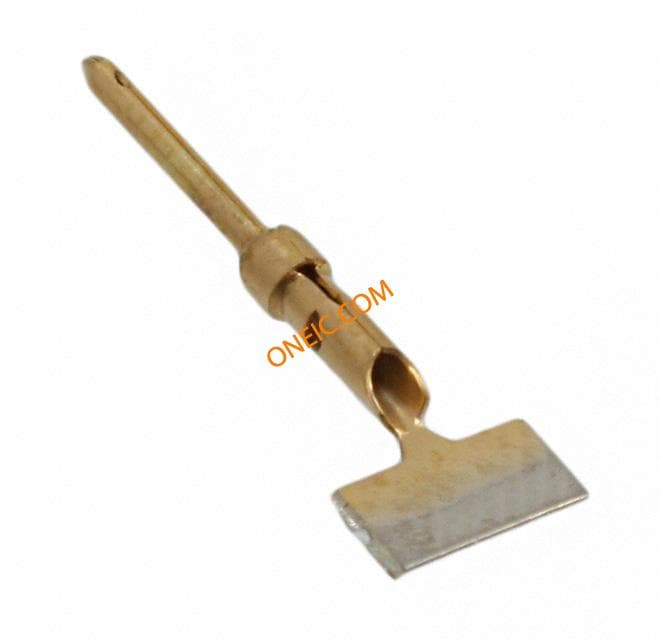

Contact PIN Solder Cup ST Cable Mount Loose Piece Standard Cable Connectors CONN PIN 18AWG SLD CUP GOLD AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Connector SOLDER PIN CNT 18 Contact PIN Solder Cup ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = SolderWire Range = 0.8 - 0.9 [18] mm² [AWG]Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CIRCULAR CONTACT, PIN, 18 AWG, SOLDER 20DFPINCONT.LP Contact; male; 0.9mm2; HDP-20; gold plated; soldering HDP-20 Series 18 AWG Non Insulation Crimp Snap Solder Pin Contact Crimp Contact 7.5 A, 66570-3, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 压接引脚连接器, 镀金镀镍 触点, 18 AWG 20DF PIN CONT. LP
