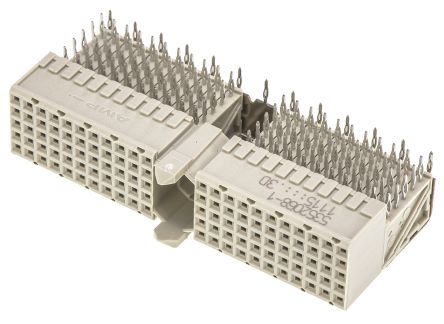

5352068-1
| Manufacturer | |
| Description | Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HM RCPT 110POS R/A GOLD 22 column type A shielded socket Hard Metric Connectors RCPT 110POS R/A GOLD 2MM HM Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type AReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, RECEPTACLE, TYPE A, 22CLMN, SHIE CONNECTOR,RECEPTACLE,Z-PACK2MMHARDMETRIC,110POSITION,TYPEA TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直角 5 排 母 背板连接器, 焊接端子, 1.5A Z-PACK/A RAF 110P |
| Category |
Business
| Product Category | Hard Metric Connectors | Standard Package | Rail / Tube |
| Factory Pack Quantity | 11 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :IEC |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Crosstalk | Standard | Interface | 2mm HM |
| Voltage Rating | 500V | Contact Resistance | 20 mohm |
| Current Rating (Max) | 1.5A | Voltage - Supply (Min) | 500VAC |
Mechanical
| Pitch | 2 mm | Height | 12.25 mm |
| Weight | 0.005 | Material | :Glass Filled Polyester |
| Packaging | Tube | Shield Type | Ground Return Shielding |
| Termination | Solder | Contact Type | Short Tail |
| Lead Spacing | :2mm | Pitch - Post | :2mm |
| Polarization | Multi-Purpose Center | Housing Color | Gray |
| Mounting Type | Through Hole | Connector Type | Type A |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 5 | Connector Style | A 22 |
| Connector Usage | CompactPCI J1/J4 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester GF | Length - Overall | 50.00 [1.968] |
| Termination Style | Pin | Mating Orientation | With |
| Number of Contacts | 110 | Termination Finish | Tin over Nickel |
| Contact Termination | :Press Fit Right Angle | Number of Positions | 110 |
| Length - Post (Mating) | 3.71 [0.146] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Note | Female connector with pre-installed shield. | Type | Hard Metric |
| Gender | Receptacle | Series | Z-Pack |
| Features | Upper Shield | Composition | J1, J4 |
| Manufacturer | AMP | Product Type | Connector |
| Module/Board Type | Yes | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts

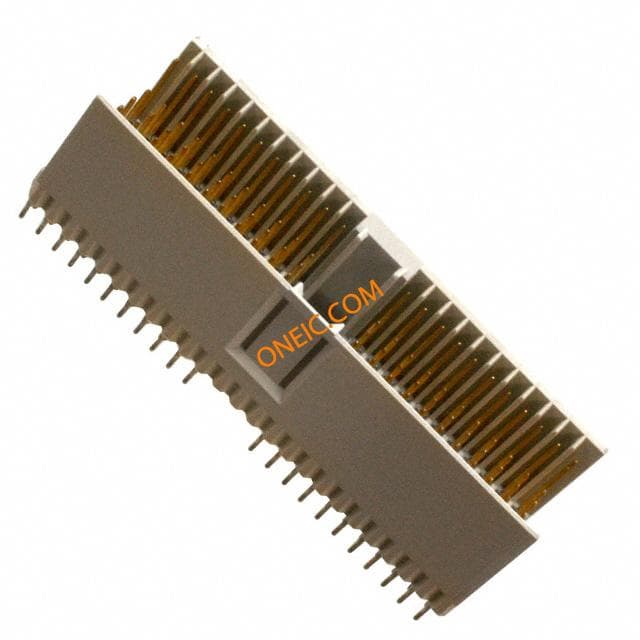

5188399-1
te connectivity / amp
Conn Hard Metric M 154 POS 2mm Press Fit ST Thru-Hole Tube 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HEADER 154POS STR GOLD Hard Metric Connectors HDR A/154P VRT B-PLANE HM 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, TYPE A,FIXED BOARD M/CONNECTOR

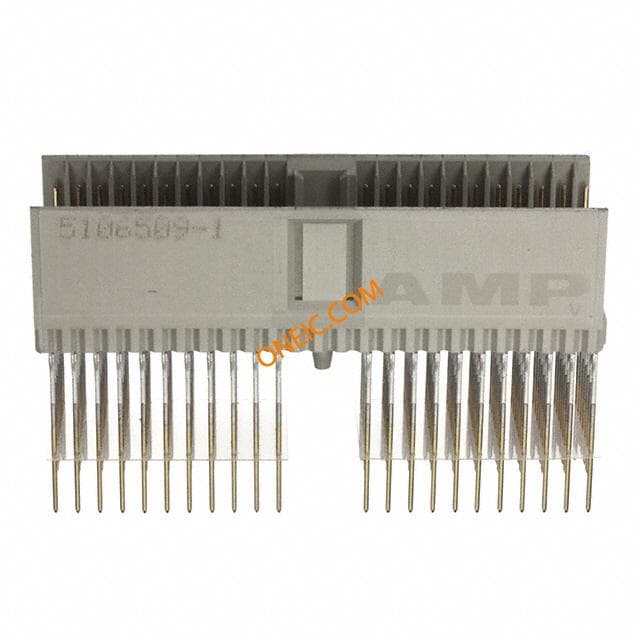

5106509-1
te connectivity / amp
Conn Hard Metric PL 154 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 154POS VERT 2MM Hard Metric Connectors PLUG 154P VERT GOLD 2MM Conn Hard Metric PL 154 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, 2MMHM PIN HDR,TYPE A 154POS 7R
5188399-9
te connectivity / amp
Z-PACK/A M-HDR 154P CONN 2MM HEADER 154POS STR GOLD Hard Metric Connectors A M-HDR 154P
5188834-1
te connectivity / amp
Conn Hard Metric M 154 POS 2mm Press Fit ST Thru-Hole Hard Metric Connectors 154P VERT PLUG ZPACK 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HEADER 154POS VERT GOLD 22 column type A plug Conn Hard Metric M 154 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HEADER, TYPE A, 22CLMN CONNECTOR,PLUG,Z-PACK2MMHARDMETRIC,154POSITION,TYPEA TE Connectivity Z-PACK HM 系列 2mm 节距 154 路 直向 7 排 公 背板连接器, 按式端子 Z-PACK/A M-HDR 154P.
5352521-1
te connectivity / amp
Conn Hard Metric M 154 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 154POS TYPE A VERT Hard Metric Connectors Z-PACK/A ML HDR 154P 2MM HM Z-PACK/A MALE HDR, 154P 2MM HM
5188578-1
te connectivity / amp
Conn Hard Metric M 154 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HEADER 154POS STR GOLD Hard Metric Connectors B-PLANE HM HDR A/154P VRT Conn Hard Metric M 154 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HEADER, Z-PACK, 2MM, 154WAY Pitch Z-PACK/A M HDR.154P

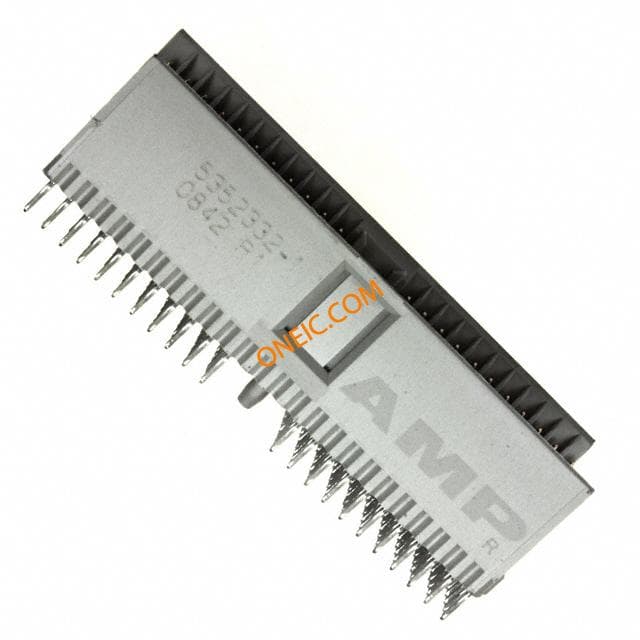

5352332-1
