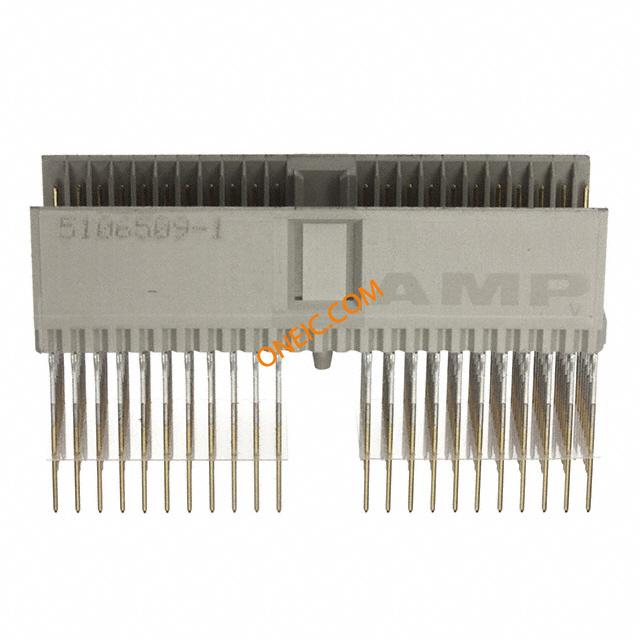

5106509-1
| Manufacturer | |
| Description | Conn Hard Metric PL 154 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 154POS VERT 2MM Hard Metric Connectors PLUG 154P VERT GOLD 2MM Conn Hard Metric PL 154 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, 2MMHM PIN HDR,TYPE A 154POS 7R |
| Category |
Business
| Product Category | Hard Metric Connectors | Standard Package | Rail / Tube |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Core Size | 16 | Crosstalk | Standard |
| Interface | 2mm HM | Voltage Rating | 500V |
| Data Rate (Max) | ≤1 | Attenuation - Typ | 缩减 |
| Current Rating (Max) | 1.5A | ||
Mechanical
| Pitch | 2 mm | Length | 50 |
| Packaging | Tube | Shielding | 是 |
| Body Color | 灰色 | Shield Type | Ground Return Shielding |
| Termination | Press Fit | Contact Type | Feed through |
| Holding Type | 否 | Polarization | Multi-Purpose Center |
| Housing Color | Gray | Mounting Type | Through Hole |
| Connector Type | Type A | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 7 |
| Connector Style | A 22 | Connector Usage | Backplane |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Front Connection | Level 1 | Housing Material | Polyester GF |
| Length - Overall | 50.00 [1.968] | Package Quantity | 11 |
| Panel Mount Type | 垂直 | Termination Style | Press Fit |
| Mating Orientation | With | Number of Contacts | 154 |
| Termination Finish | Tin over Nickel | Number of Positions | 154 |
| Length - Post (Mating) | 13.00 [0.512] | Contact Finish - Mating | 第 1 级 |
| Contact Layout, Typical | ACTION PIN, 信号 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Mfr | 10 | Type | Hard Metric |
| Gender | Plug | Series | Z-PACK HM |
| Features | Board Guide | Card Type | 无 |
| Manufacturer | AMP | Product Type | Connector |
| Module/Board Type | No | Number of Columns | 25 |
| Number of Positions Loaded | All | Number of Positions (Convert From) | A, B, C, D, E, F, Z |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
