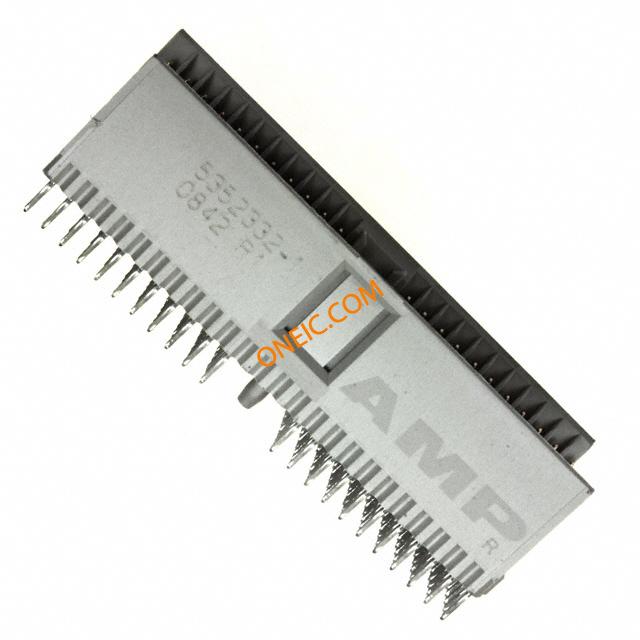

5352332-1
| Manufacturer | |
| Description | Conn Hard Metric M 154 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN PLUG HM 154POS VERT 2MM Hard Metric Connectors HDR A/154P VRT B-PLANE HM Conn Hard Metric M 154 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HEADER, TYPE A, 22CLMN, HSWA Connector,2mmHardMetric,PCBMount,ZPack,Plug 2MM HM TYPE A MALE HDR 154 POS |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Hard Metric Connectors | Standard Package | Rail / Tube |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :IEC |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Crosstalk | Standard | Interface | 2mm HM |
| Voltage Rating | 500V | Current Rating (Max) | 1.5A |
Mechanical
| Depth | 15.4 mm | Pitch | 2 mm |
| Height | 13.45 mm | Weight | 0.008 |
| Material | :Glass Filled Polyester | Packaging | Tube |
| Shield Type | Ground Return Shielding | Termination | Press Fit |
| Contact Type | Short Tail | Lead Spacing | :2mm |
| Pitch - Post | :2mm | Polarization | Multi-Purpose Center |
| Housing Color | Gray | Mounting Type | Through Hole |
| Connector Type | Type A | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 7 |
| Connector Style | A 22 | Connector Usage | CompactPCI Hot Swap |
| Contact Material | Phosphor Bronze | Front Connection | Level 1 |
| Housing Material | Polyester GF | Length - Overall | 50.00 [1.968] |
| Termination Style | Pin | Mating Orientation | With |
| Number of Contacts | 154 | Termination Finish | Tin over Nickel |
| Contact Termination | :Press Fit Vertical | Number of Positions | 154 |
| Length - Post (Mating) | 3.71 [0.146] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Hard Metric | Gender | Plug |
| Series | Z-Pack | Features | Board Guide |
| Composition | P1 Hot Swap | Manufacturer | AMP |
| Product Type | Connector | Module/Board Type | Yes |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
