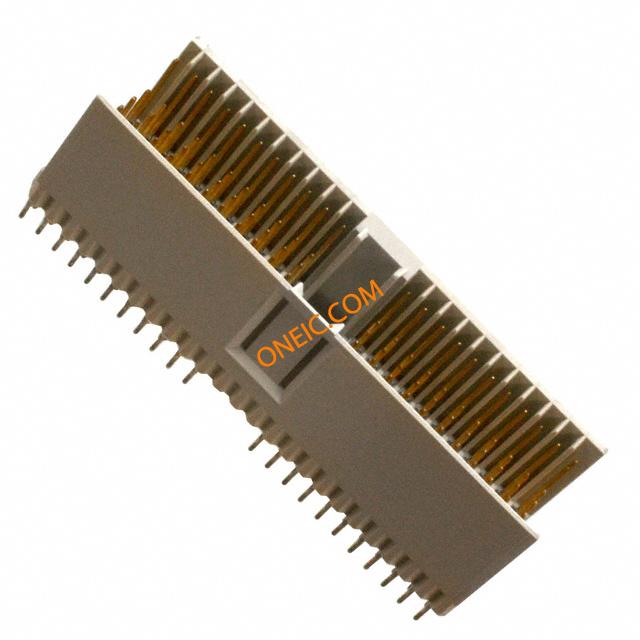

5100668-1
| Manufacturer | |
| Description | Conn Hard Metric M 110Signal/44Ground POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 154POS VERT 2MM Hard Metric Connectors HDR A/154P VRT B-PLANE HM Conn Hard Metric M 110Signal/44Ground POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, PLUG, 154POS null Z-PACK M.ASSY.154P. |
| Category |
Business
| Product Category | Hard Metric Connectors | Standard Package | Rail / Tube |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85340011 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Crosstalk | Standard | Interface | 2mm HM |
| Voltage Rating | 500V | Current Rating (Max) | 1.5A |
Mechanical
| Depth | 15.4 mm | Pitch | 2 mm |
| Height | 13.45 mm | Weight | 0.005 |
| Packaging | Tube | Shield Type | Ground Return Shielding |
| Termination | Press Fit | Contact Type | Short Tail |
| Pitch - Post | :2mm | Polarization | Multi-Purpose Center |
| Housing Color | Gray | Mounting Type | Through Hole |
| Connector Type | Type A | Contact Finish | Gold Over Palladium Nickel Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 5/2 |
| Connector Style | A 22 | Connector Usage | Backplane |
| Contact Material | Phosphor Bronze | Front Connection | Level 1 |
| Housing Material | Polyester GF | Length - Overall | 50.00 [1.968] |
| Package Quantity | 10 | Termination Style | Press Fit |
| Mating Orientation | With | Number of Contacts | 110Signal/44Ground |
| Termination Finish | Tin over Nickel | Contact Termination | :Press Fit Vertical |
| Number of Positions | 154 | Length - Post (Mating) | 3.71 [0.146] |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Hard Metric | Gender | Plug |
| Series | Z-Pack | Features | Board Guide |
| Manufacturer | AMP | Product Type | Connector |
| Module/Board Type | No | Number of Columns | 22 |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Similar Parts
5352068-1
te connectivity / amp
Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HM RCPT 110POS R/A GOLD 22 column type A shielded socket Hard Metric Connectors RCPT 110POS R/A GOLD 2MM HM Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type AReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, RECEPTACLE, TYPE A, 22CLMN, SHIE CONNECTOR,RECEPTACLE,Z-PACK2MMHARDMETRIC,110POSITION,TYPEA TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直角 5 排 母 背板连接器, 焊接端子, 1.5A Z-PACK/A RAF 110P
5352344-1
te connectivity / amp
Conn Hard Metric F 110 POS 2mm Press Fit RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RECEPT 110POS TYPE A R/A 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type AReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/A RAF 110P

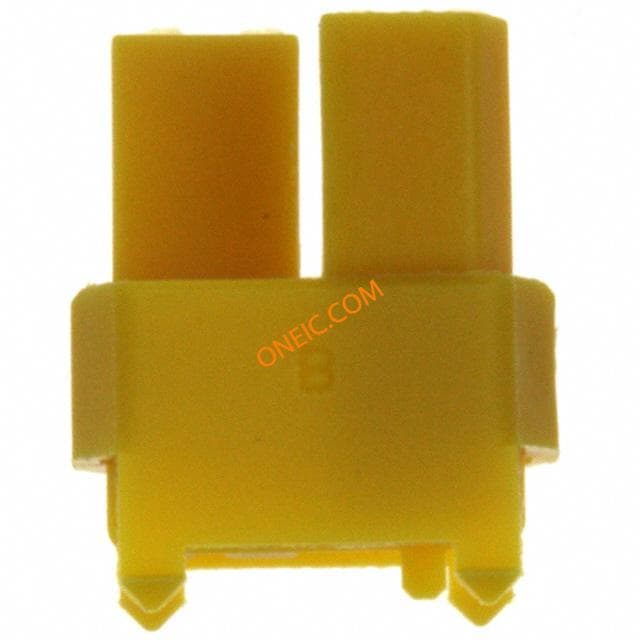

5-100525-6
