487937-1
| Manufacturer | |
| Description | Conn Housing RCP 100 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT 100POS.050 DUAL W/LTCH FFC & FPC Connectors 100 HOUSING FFC 50CL .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 100Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 100 HOUSING FFC 50CL DR LATCH |
| Category |
Business
| Standard Pack | 150 | Product Category | FFC & FPC Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 600 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 100V | Voltage - Supply | 100 |
| Resistance - Input | 5000 | Voltage - Clamping | 300 |
| Connector Impedance | 锁闩, 锁闩 | Voltage - Breakdown | 300 |
| Current Rating (Max) | 1.5A | Insulation Resistance | 5,000 |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Lock Type | 带有 | Packaging | Bulk |
| Body Color | 黑色 | Cable Type | Flexible Flat Conductor Cable |
| 2nd Connector | With | Edge Contacts | No |
| Mounting Type | Straight | Connector Type | Housing for Female Contacts |
| Mounting Style | Cable | Number of Rows | 2 |
| Connector Usage | Receptacle | Insertion Force | Normal |
| Locking Feature | Latch | Housing Material | Thermoplastic |
| Package Quantity | 100 | Panel Mount Type | 不带 |
| Termination Style | 插座 | FFC, FCB Thickness | 0.05-0.08mm |
| Number of Contacts | 100 | Number of Positions | 100 |
| Mounting Hole Diameter | 带有 | Center Contact Material | 1.27 [0.050] |
Product Info
| Type | Housing | Gender | RCP |
| Series | AmpMODU | Features | Latch Lock |
| Product Type | Housing | ||
Environmental
| Temperature Range | -55 â +105 | Operating Temperature | -55°C ~ 105°C |
Documents & Media
Similar Parts

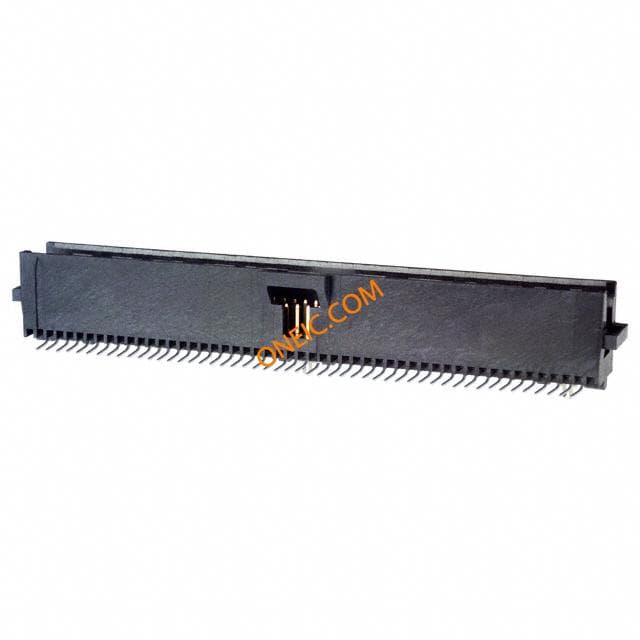

6-104549-0
te connectivity / amp
Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER 100PS .050" STR GOLD Header vertical 100way AmpModu system 50 Headers & Wire Housings 100 POS SMT HDR VERT DUAL ROW Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU SHROUDED HEADER HEADERASSEMBLY,AMPMODU,SYSTEM50,100POSITION,DUALROW,SHROUDED,VERTICAL TE Connectivity AMPMODU System 50 系列 2.54mm节距 100路 (2排) 直 PCB 针座, 焊接端接 , 表面安装 100 SYS50 S/M HDR DRST SHRDSN

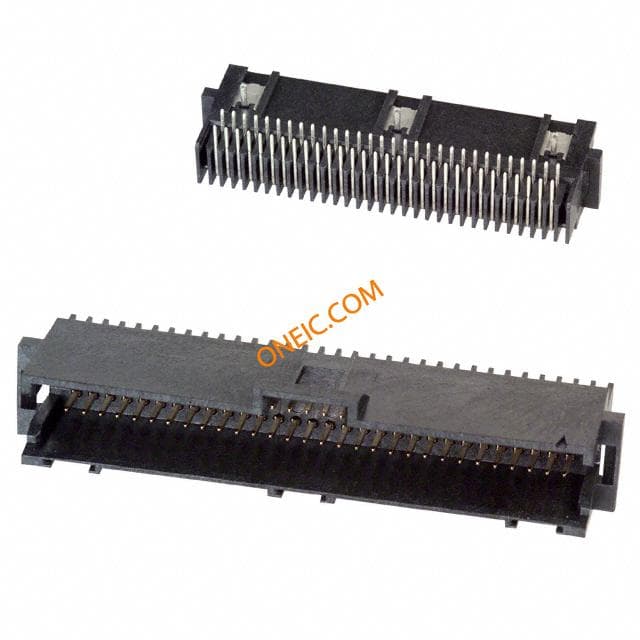

1-104069-7
te connectivity / amp
Conn Shrouded Header HDR 100 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER RTANG .050 100POS AU Headers & Wire Housings 100 SYS 50 DRRA SHRD 210 Conn Shrouded Header HDR 100 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 SYSTEM 50 HDR DRRA SHRD
1-104549-0
te connectivity / amp
Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Headers & Wire Housings SYS50 SMT HDR 100P SHROUDED .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 100POS AU Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 SYS50 SRFMNT HDR DRST SHRD
5-104477-7
te connectivity / amp
Conn Shrouded Header HDR 100 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 100POS DL R/A GOLD Headers & Wire Housings 100 SYSTEM 50 HDR DRRA SHRD SN .050 X .100 AMPMODU System 50 Product Highlights:Connector Type = Header - Pin100 PositionsNumber of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 SYSTEM 50 HDR DRRA SHRD SN
6-103916-7
te connectivity / amp
Conn Unshrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER .050 100POS VERT T/H Headers & Wire Housings 100 sys 50 hdr drst unshrd sn Conn Unshrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Housing Gender = Header - Pin100 PositionsNumber of Rows = DualNot ShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 1.27mm节距 100路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 100 sys 50 hdr drst unshrd sn

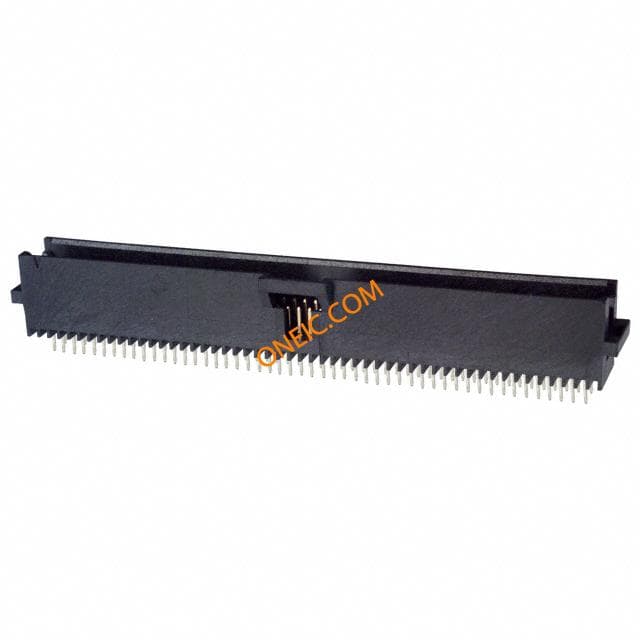

6-104068-7
