104477-7
| Manufacturer | |
| Description | Conn Shrouded Header HDR 100 POS 1.27mm Solder RA Thru-Hole Tube Headers & Wire Housings 100 SYSTEM 50 HDR DRRA SHRD .050 X .100 AMPMODU System 50 CONN HEADER 100POS R/A DUAL GOLD .050 X .100 AMPMODU System 50 Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 SYSTEM 50 HDR DRRA SHRD |
| Category |
Business
| Tradename | AMPMODU | Standard Pack | 7 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
Compliance
| RoHS | No RoHS Version Available | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| Approved Countries | CSA LR7189, UL E28476 | RoHSELV Compliance | Not ELV/RoHS compliant |
| Protection Features | With | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 30 VAC | Voltage - Supply | 30 |
| Voltage - Rated AC | 30 | Connector Impedance | 制动器闭锁 |
| Voltage - Breakdown | 500 | Current Rating (Max) | 1 |
| Insulation Resistance | 5,000 | Voltage - Protection Rating (VPR) | 500 VAC |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Base Type | 不带 | Packaging | Tube |
| Shrouding | Yes | Body Color | 黑色 |
| Row Spacing | 0.100" (2.54mm) | Stabilizers | Without |
| Termination | Solder | 2nd Connector | With |
| Housing Color | Black | Mounting Type | Right |
| Connector Type | Shrouded | Contact Finish | Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Shell Material | 2- 面 | Height (Inches) | 0.350" (8.89mm) |
| Insert Material | 铜合金 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Mounting Feature | 压具柱体 |
| Package Quantity | Tube | Panel Mount Type | 通孔 |
| Termination Style | Through Hole | Diameter - Outside | .381 mm [ .015 in ] |
| Number of Contacts | 100 | Termination Finish | Matte Tin-Lead |
| Number of Positions | 100 | Mounting Hole Diameter | 带有 |
| Contact Length - Mating | 0.125" (3.18mm) | Termination Post Length | 3.68 [0.145] |
| Contact Finish Thickness | 30µin (0.76µm) | Static Discharge Shielding | 不带 |
| Termination Finish Thickness | 150 – 250 | ||
Product Info
| Note | Note 1: Hold down posts located as shown for 16 through 100 position headers.; | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU System 50 |
| Key Type | 否 | Manufacturer | AMP |
| Product Type | Headers - Shrouded | Selectively Loaded | No |
| Number of Positions Loaded | All | ||
Environmental
| Seal Rating | 不带 | Temperature Range | -65 â +105 |
| Operating Temperature | -65 – 105 | ||
Similar Parts
2-111196-4
te connectivity / amp
Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 100PS .050X.100" IDC Connector IDC 100 way socket System 50 Headers & Wire Housings 100 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 100Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU WIRE-BOARD CONNECTOR RECEPTACLE 100POS 1.27MM Connectors,ribboncablereceptacle,doublerow,100position TE Connectivity AMP-LATCH System 50 系列 2行 100路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 100 RCPT SYSTEM 50, LEAD FREE
487937-1
te connectivity / amp
Conn Housing RCP 100 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT 100POS.050 DUAL W/LTCH FFC & FPC Connectors 100 HOUSING FFC 50CL .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 100Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 100 HOUSING FFC 50CL DR LATCH
1-111196-6
te connectivity / amp
Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 100POS .050X.100 IDC Headers & Wire Housings 100P RECEPTACLE 300 Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 100Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 100 RCPT SYSTEM 50 30 DPLX

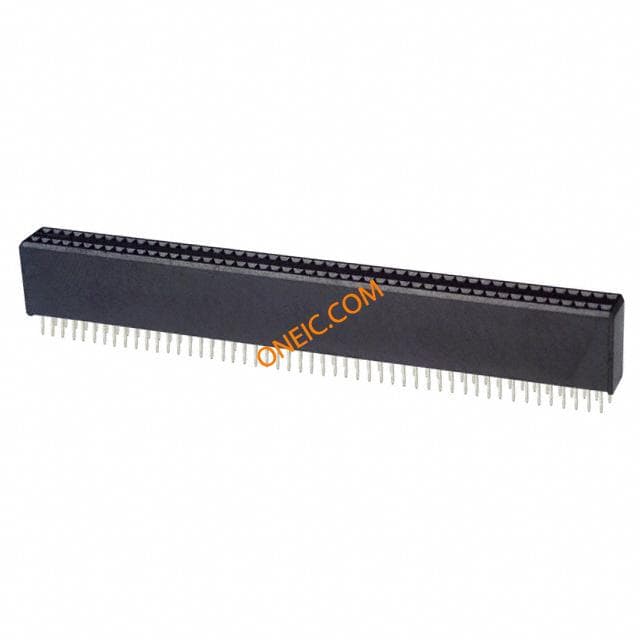

5-104078-8
