6-103916-7
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER .050 100POS VERT T/H Headers & Wire Housings 100 sys 50 hdr drst unshrd sn Conn Unshrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Housing Gender = Header - Pin100 PositionsNumber of Rows = DualNot ShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 1.27mm节距 100路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 100 sys 50 hdr drst unshrd sn |
| Category |
Business
| Tradename | AMPMODU | Standard Package | Rail / Tube |
| Factory Pack Quantity | 8 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 30 VAC | Voltage - Supply | 30 |
| Voltage - Rated AC | 30 | Connector Impedance | 不带 |
| Voltage - Breakdown | 500 | Current Rating (Max) | 1A |
| Insulation Resistance | 5,000 | Voltage - Protection Rating (VPR) | 500 V |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Base Type | 不带 | Packaging | Tube |
| Shrouding | No | Body Color | 黑色 |
| Lead Style | 圆形 | Orientation | 垂直 |
| Row Spacing | 0.100" (2.54mm) | Stabilizers | Without |
| Termination | Solder | 2nd Connector | Without |
| Housing Color | Black | Mounting Type | Vertical |
| Connector Type | Unshrouded | Contact Finish | Gold Over Nickel |
| Mounting Style | Thru Hole | Number of Rows | 2 |
| Height (Inches) | 0.225" (5.72mm) | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Package Quantity | Tube | Panel Mount Type | 通孔 |
| Termination Rows | 焊接 | Termination Style | Through Hole |
| Diameter - Outside | .381 mm [ .015 in ] | Number of Contacts | 100 |
| Termination Finish | Matte Tin-Lead | Number of Positions | 100 |
| Mounting Hole Diameter | 不带 | Contact Length - Mating | 0.125" (3.18mm) |
| Termination Post Length | 2.54 [0.100] | Contact Finish Thickness | 30µin (0.76µm) |
| Height Stacking (Mating) | 0.275", 0.450" (6.98mm, 11.43mm) | Static Discharge Shielding | 不带 |
| Termination Finish Thickness | 150 – 250 | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | AMPMODU System 50 | Coverage | 无覆盖 |
| Key Type | 否 | Manufacturer | AMP |
| Product Type | Header Assembly | Selectively Loaded | No |
| Number of Positions Loaded | All | ||
Environmental
| Seal Rating | 不带 | Temperature Range | -65 â +105 |
| Operating Temperature | -65 – 105 | Thermal Resistance of Package | 1.397 mm [ .055 in ] |
Documents & Media
Similar Parts
487937-1
te connectivity / amp
Conn Housing RCP 100 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RCPT 100POS.050 DUAL W/LTCH FFC & FPC Connectors 100 HOUSING FFC 50CL .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 100Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 100 HOUSING FFC 50CL DR LATCH
5-104744-5
te connectivity / amp
Conn Socket Strip RCP 100 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 100POS .050 VERT T/H Board to Board & Mezzanine Connectors 100 SYS 50 RCPT ASSY DRST SN Conn Socket Strip RCP 100 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Connector Type = Connector - Receptacle100 PositionsNumber of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 SYS 50 RCPT ASSY DRST SN
5-103911-8
te connectivity / amp

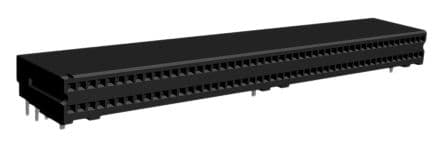

Conn Socket Strip RCP 100 POS 1.27mm Solder RA Thru-Hole Tube CONN RECEPT .050 100POS R/A T/H Board to Board & Mezzanine Connectors 050X100 HDR 2X25P VRT T/H U/S Conn Socket Strip RCP 100 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Receptacle AssemblyNumber of Positions = 100Number of Rows = DualRight Angle Mount AnglePCB Mount Style = Thru HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 2行 100路 直角 1.27mm节距 印刷电路板安装 印刷电路板插座, 板对板 100 SYSTEM 50 RCPT ASSY DRRA
