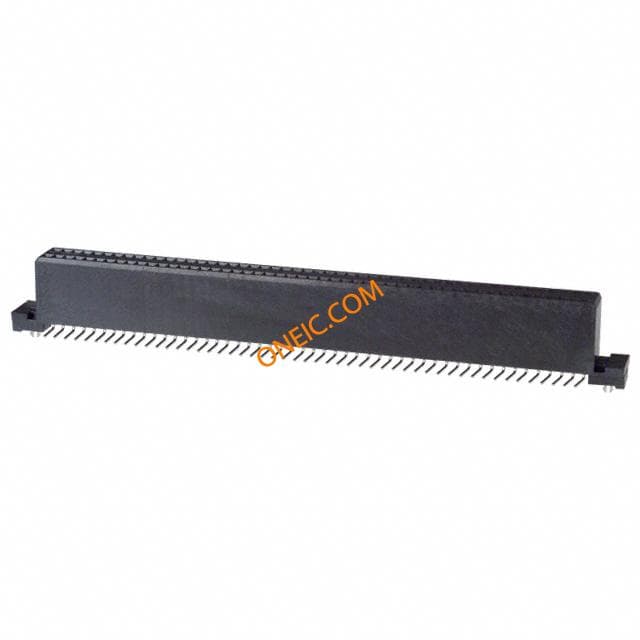

6-104549-0
| Manufacturer | |
| Description | Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER 100PS .050" STR GOLD Header vertical 100way AmpModu system 50 Headers & Wire Housings 100 POS SMT HDR VERT DUAL ROW Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU SHROUDED HEADER HEADERASSEMBLY,AMPMODU,SYSTEM50,100POSITION,DUALROW,SHROUDED,VERTICAL TE Connectivity AMPMODU System 50 系列 2.54mm节距 100路 (2排) 直 PCB 针座, 焊接端接 , 表面安装 100 SYS50 S/M HDR DRST SHRDSN |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 7 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMPMODU System 50 Series | Voltage Rating | 500 V |
| Voltage - Supply | 30 | Voltage - Breakdown | 500 |
| Insulation Resistance | 5,000 | Voltage - Supply (Min) | 30VAC |
Mechanical
| Color | Black | Depth | 8.73 mm |
| Pitch | 1.27 mm | Height | 11.12 mm |
| Weight | 0.004 | Plating | Tin |
| Packaging | Tube | Shrouding | Yes |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Lead Spacing | :0.127mm | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Shrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Surface Mount |
| Number of Rows | 2 | Height (Inches) | 0.435" (11.05mm) |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic Glass Reinforced |
| Length - Overall | 69.69 mm | Material - Blade | Copper Alloy |
| Package Quantity | Tube | Primary Material | InterconnectSystem |
| Termination Style | SMD | Number of Contacts | 100 |
| Contact Termination | :Surface Mount Vertical | Number of Positions | 100 |
| Contact Length - Mating | 0.125" (3.18mm) | Termination Post Length | 2.54 [0.100] |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU | Features | Board Lock |
| Manufacturer | AMP | Product Type | Header Assembly |
| Number of Positions Loaded | All | ||
Environmental
| Temperature Range | -65 â +105 | Operating Temperature | -65C to 105C |
Documents & Media
