350767-1
| Manufacturer | |
| Description | Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS 94V-0 UNI-MATE 3 way white receptacle housing Pin & Socket Connectors 03P HSG. CAP. Conn Housing RCP 3 POS 6.35mm Crimp ST Panel Mount Individual Conn Housing RCP 3 POS 6.35mm Crimp ST Panel Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, SINGLE ROW, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Receptacle(Cap);Nylon;White Plug/socket; wire-wire/PCB; male/female; w/o terminals; 6.35mm Receptacle housing Pitch6.35 mm Poles 3 Single row / Free hanging/cable mount MATE-N-LOK Universal, 350767-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 3 路 直 母 压接连接器外壳 03P UMNL CAP HSG V0 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL, VDE | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 600 V | Contact Resistance | :3.5mohm |
| Dielectric Strength | :5000V | Current Rating (Max) | 19 A |
| Insulation Resistance | :1000Mohm | Voltage - Supply (Min) | 600VAC |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Color | Natural | Depth | 27.43mm |
| Pitch | 6.35 mm | Height | 27.43 mm |
| Weight | 0.004 | Packaging | Bulk |
| Contact Type | Male or Female | Pitch - Post | 6.35mm |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Receptacle | Fastening Type | Locking Ramp |
| Mounting Style | Free Hanging, Panel | Number of Rows | 1 |
| Locking Feature | lock | Material - Body | :Nylon (Polyamide) |
| Material Finish | :- | Panel Thickness | :2.29mm |
| Contact Material | Phosphor Bronze | Housing Material | Nylon |
| Package Quantity | 5 | Connector - Cable | plug/socket |
| Termination Style | Quick Connect | 1st Contact Gender | Socket (Female) |
| Color - Connectors | :Opaque | Number of Contacts | 3 |
| Contact Termination | Crimp | Number of Positions | 3 |
| 1st Connector Mounting Feature | 1x3 | ||
Product Info
| Spg | 5 | Note | Contacts Not Provided |
| Type | Housing | Gender | RCP |
| Series | MATE-N-LOK | Product Type | Receptacle Housings |
| Adapter Series | Universal MATE-N-LOK | Number of Units | 1 |
| For Use With/Related Products | Centerline Splash Proof/Sealed Connector | ||
Environmental
| Mating Cycles | :50 | Operating Temperature | :125°C |
Documents & Media
Similar Parts
1-480700-0
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS 94V-2 UNI-MATE 3 way free plug housing Pin & Socket Connectors PLUG HOUSE 3 POS Conn Housing PL 3 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, SINGLE ROW, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Plug;Nylon;Natural;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:3 Crimp housing Pitch6.35 mm Poles 3 Single row / Free hanging/cable mount MATE-N-LOK Universal, 1-480700-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 3 路 直 公 面板安装 压接连接器外壳 03P UMNL PLUG HSG NATL
350547-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Contact,crimp,pin,Mate-n-lok,20-14 awg Pin & Socket Connectors PIN CONTACT 20-14 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP TERMINAL, SOLDERLESS CONTACT,PIN,UNIVERSALMATE-N-LOK,20-14AWG TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金触点 UMNL PIN 20-14 AUBR L/P
350766-1
te connectivity / amp
Conn Housing PL 3 POS 6.35mm ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS 94V-0 UNI-MATE 3 way white plug housing Pin & Socket Connectors PLUG HOUSE 3 POS Conn Housing PL 3 POS 6.35mm ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Plug;Nylon;Natural;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:3 Crimp housing Pitch6.35 mm Poles 3 MATE-N-LOK Universal, 350766-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 3 路 直 公 压接连接器外壳 03P UMNL PLUG HSG
1-480700-2
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 3POS 94V-2 RED Power to the Board PLUG HOUSE 3 POS RED UL94V-2 Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 03P UMNL PLUG HSG RED
2-480700-0
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS FREE HANG UNM-N-L Power to the Board 03P PLUG HSG F/H Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOK Product LineIn-Line Contact Layout6.35 mm Centerline3 PositionsSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PLUG HSG
794272-1
te connectivity / amp
Connector Accessories Seal Protector 3 POS Silicon Rubber Blue .250" Centerline, 600 V, 19 - 36 A max CONN WIRE SEAL 3POS UMNL BLUE universal mate-n-lok 3 way wire seal Power to the Board SPLASH PROOF SEAL 3P Wire Connector Accessories Seal Protector 3 POS Silicon Rubber Blue Product Highlights:AccessoryUniversal MATE-N-LOK Product LineAccessory Type = Seal ProtectorIn-Line Contact LayoutNumber of Positions = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP WIRE SEAL, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;19;600;SiliconRubber;Blue Seal for wire; 6.35mm; PIN:3; Pin layout:1x3; Gasket: silicone Wire seal, 794272-1, TE Connectivity TE Connectivity MATE-N-LOK系列 蓝色 硅橡胶 电线密封 03P UMNL WIRE SEAL
350766-4
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS UNIVER MATE-N-LOK Universal mate-n-lok 3w Plug Connector Pin & Socket Connectors HSG PLG 1X03C F/P V0 Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, SINGLE ROW, 3WAY Conn;PlugHsg;3Pos;UnivMATE-N-LOK;White Plug; wire-wire; male/female; w/o terminals; 6.35mm; PIN:3; 600V Crimp housing 6.35 mm Poles 3 MATE-N-LOK Universal, 350766-4, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 3 路 直 公 电缆安装 压接连接器外壳 03P UMNL PLUG HSG UL94V0
350851-7
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Power to the Board SOCKET CONTACT 24-18 AWG CONTACT, SOCKET, 24-18AWG, CRIMP UMNL SOK 24-18 AUNIBR
350705-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Power to the Board PIN 20-14 BR/AU SPLIT Conn Contact M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UNIVMATE-N-LOKLP,UMNLSPLITPIN20-14AUBRL/P UMNL SPLIT PIN 20-14 AUBR L/P
350536-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 14-20AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.50-2.00mm² Power to the Board SOCKET CONTACT 20-14 AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP SOCKET, MATE-N-LOK, REEL 5K Mate-n-Lok,Contact,socket,0.50-2.00mm² TE Connectivity Universal MATE-N-LOK 系列 母 压接接线端子, 压接, 镀金镀镍触点 UMNL SOK 20-14 .0126 AUNI/BR
350218-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN PIN 14-20AWG GOLD CRIMP Contact,crimp,pin,Mate-n-lok,20-14awg,Au Pin & Socket Connectors PIN CONTACT 20-14 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CRIMP PIN, 20-14AWG CRIMP PIN, MATE-N-LOK, REEL 5K UNIVMATE-N-LOKSTRIP,UMNLPIN20-14.0126AUBR Mate N Lok .250" Centerline 600 V 19 - 36 A 20-14 AWG Pin TE Connectivity Universal MATE-N-LOK 系列 公 压接接线端子, 压接, 镀金镀镍触点 UMNL PIN 20-14 .0126AUBR
350700-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SPLIT PIN 20-14AWG U M-N-L Power to the Board SPLIT PIN 20-14 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = Split PinWire Range = 0.50-2.00² [20-14] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP UMNL SPLIT PIN AU/NI/BR
350851-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .250" Centerline, 600 V, 19 - 36 A max CONN SOCKET 18-24AWG GOLD CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Power to the Board 24-18 SOCKET CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactUniversal MATE-N-LOKNot CompactPCIContact Type = SocketWire Range = 0.20-0.80² [24-18] mm [AWG]Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP Mate-n-Lok,Contact,socket,0.20-0.80mm² Universal Mate-N-Lok 24-18 AWG Wire to Cable Crimp Socket Contact TE Connectivity 母 印刷电路板连接器触点, 压接, 镀金触点 UMNL SOK 24-18 AUNIBR
1-480700-9
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 3POS 94V-2 BLK Housing,plug,Mate-n-lok,3 Way,Black Jones Plugs & Sockets PLUG HOUSE 3 POS BLACK UL94V-2 Conn Housing PL 3 POS 6.35mm Crimp ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON Housing,plug,Mate-n-lok,3Way,Black Conn;PlugHsg;3Pos;UnivMATE-N-LOK;Black Crimp housing Pitch6.35 mm Poles 3 Single row / Free hanging/cable mount MATE-N-LOK Universal, 1-480700-9, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 3 路 直 公 压接连接器外壳 03P UMNL PLUG HSG BLK
794271-1
te connectivity / amp

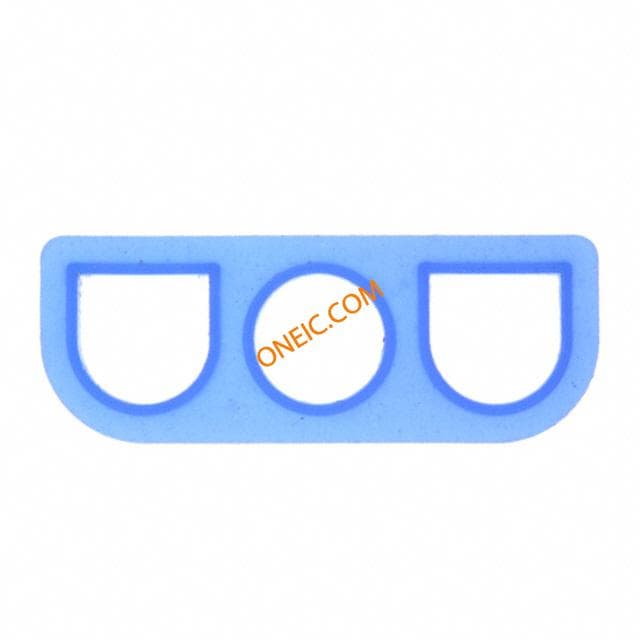

Connector Accessories Interface Seal Silicon Rubber .250" Centerline, 600 V, 19 - 36 A max CONN INTERFACE SEAL 3POS UMNL Mate-N-Lok interface seal 3W Power to the Board SPLASH PROOF SEAL 3P Interface Connector Accessories Interface Seal Silicon Rubber Product Highlights:AccessoryUniversal MATE-N-LOK Product LineAccessory Type = Interface SealIn-Line Contact Layout3 PositionsSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP INTERFACE SEAL, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;19;600;SiliconRubber;Blue Profile gasket; 6.35mm; PIN:3; Pin layout:1x3; Gasket: silicone Sealing plate, 794271-1, TE Connectivity TE Connectivity MATE-N-LOK系列 3路 蓝色 硅橡胶 电线密封, 适用于MATE-N-LOK连接器 03P UMNL INTERFACE SEAL
