1-480700-0
| Manufacturer | |
| Description | Conn Housing PL 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS 94V-2 UNI-MATE 3 way free plug housing Pin & Socket Connectors PLUG HOUSE 3 POS Conn Housing PL 3 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, SINGLE ROW, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Plug;Nylon;Natural;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:3 Crimp housing Pitch6.35 mm Poles 3 Single row / Free hanging/cable mount MATE-N-LOK Universal, 1-480700-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 3 路 直 公 面板安装 压接连接器外壳 03P UMNL PLUG HSG NATL |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Material Flammability Rating | :UL94V-2 |
Electrical
| Voltage Rating | 600 V | Contact Resistance | :3.5mohm |
| Dielectric Strength | :5000V | Current Rating (Max) | 19 A |
| Insulation Resistance | :1000Mohm | Voltage - Input (Min) | 600VAC |
| Voltage - Supply (Min) | 600VAC | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Natural | Depth | 27.43mm |
| Pitch | 6.35 mm | Height | 14.73 mm |
| Length | 14.73mm | Weight | 0.002 |
| Material | :Nylon | Packaging | Individual |
| Wire Gauge | 10-30 AWG | Contact Type | Male or Female |
| Pitch - Post | 6.35mm | Housing Color | Natural |
| Mounting Type | Straight | Connector Type | Plug |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 1 | Locking Feature | lock |
| Material - Body | :Nylon (Polyamide) | Housing Material | Nylon |
| Package Quantity | 1 | Connector - Cable | plug |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :White | Number of Contacts | 3 |
| Contact Termination | Crimp | Number of Positions | 3 |
| 1st Connector Mounting Feature | 1x3 | ||
Product Info
| Spg | 1 | Note | Contacts Not Provided |
| Type | Housing | Gender | PL |
| Series | MATE-N-LOK | Product Type | Receptacle Housings |
| Adapter Series | Universal MATE-N-LOK | Number of Units | 1 |
| For Use With/Related Products | 6.35 mm Centerline Soft Shell Pin & Socket Connector | ||
Environmental
| Mating Cycles | :50 | Operating Temperature | :125°C |
Documents & Media
Similar Parts

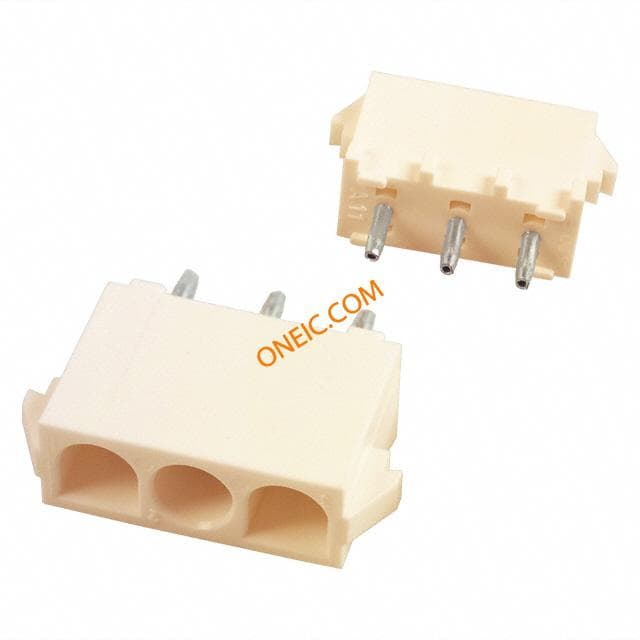

350583-1
te connectivity / amp
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN Power to the Board PCB PIN HDR 3P Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PIN HDR ASSY V2 NATL
1-480701-6
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS UNIV-M-N-L BLUE Power to the Board CAP HOUSE 3 POS BLUE UL94V-2 Conn Housing RCP 3 POS 6.35mm Crimp ST Individual Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingConnector Style = ReceptacleContact Type = Pin or SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL CAP HSG BLU
1-480701-1
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max 03P UMNL CAP HSG BRN Power to the Board CAP HOUSE 3 POS BROWN UL94V-2 Conn Housing RCP 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON

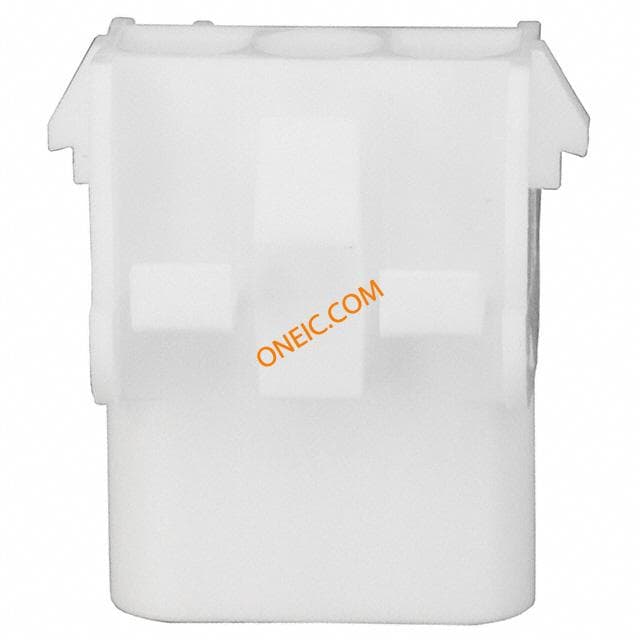

350767-1
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS 94V-0 UNI-MATE 3 way white receptacle housing Pin & Socket Connectors 03P HSG. CAP. Conn Housing RCP 3 POS 6.35mm Crimp ST Panel Mount Individual Conn Housing RCP 3 POS 6.35mm Crimp ST Panel Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, SINGLE ROW, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Receptacle(Cap);Nylon;White Plug/socket; wire-wire/PCB; male/female; w/o terminals; 6.35mm Receptacle housing Pitch6.35 mm Poles 3 Single row / Free hanging/cable mount MATE-N-LOK Universal, 350767-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 3 路 直 母 压接连接器外壳 03P UMNL CAP HSG V0
643413-1
te connectivity / amp
Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN Power to the Board 3P SOCKET .25 CTR Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Socket;3Pos;UnivMATE-N-LOK;Vertical;PositLock;Natural 03P UMNL HDR ASSY SCKT POL
1-480701-9
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 3POS 94V-2 BLK Housing,receptacle,Mate-n-lok,3 Way,Blck Power to the Board CAP HSG 3P BLK Conn Housing RCP 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON Housing,receptacle,Mate-n-lok,3Way,Blck Conn;CapHsg;3Pos;UnivMATE-N-LOK;Black 250" Centerline, 600 V, 19 - 36 A max Universal MATE-N-LOK Connector Receptacle housing Pitch6.35 mm Poles 3 Single row / for panel mount MATE-N-LOK Universal, 1-480701-9, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 3 路 直 母 电缆安装 压接连接器外壳 03P UMNL CAP HSG BLK
350760-4
te connectivity / amp
Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN MATE-N-LOK 3 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 3 POS STD TAIL SOC Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER 2 HEADERASSEMBLY,UNIVERSALMATE-N-LOK,3POSITION,SOCKET,NATURAL,PCB Socket header Pitch6.35 mm Poles 3 MATE-N-LOK Universal, 350760-4, TE Connectivity 03P UMNL HDR ASSY PC
2-480701-0
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS UNIV-M-N-L NATURAL Power to the Board 03P CAP HSG NAT .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL CAP HSG NATL
350429-2
te connectivity / amp
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 AU Pin & Socket Connectors 3P VERT HEADER Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP
350789-1
te connectivity / amp
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN MATE-N-LOK 3 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 3 POS STD TAIL PIN Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, VERTICAL, 3 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK,UniversalMATE-N-LOKII;3;Nylon Socket; wire-wire/PCB; male; 6.35mm; PIN:3; 19A; UL94V-0; THT TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 3路 直 PCB 针座, 焊接端接, 19A , 通孔 03P UMNL PIN HDR ASSY 94VO
1-480701-5
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS UNIV-M-N-L GREEN Power to the Board CAP HOUSE 3 POS GREEN UL94V-2 Conn Housing RCP 3 POS 6.35mm Crimp ST Individual Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingConnector Style = ReceptacleContact Type = Pin or SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON 03P UMNL CAP HSG GRN
1-480701-0
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS 94V-2 UNI-MATE Housing,receptacle,free hanging,3way Pin & Socket Connectors CAP HOUSE 3 POS Conn Housing RCP 3 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, SINGLE ROW, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Receptacle(Cap);Nylon;19A Socket; wire-board; male/female; w/o terminals; PIN:3; 600V Receptacle housing Pitch6.35 mm Poles 3 Single row / for panel mount MATE-N-LOK Universal, 1-480701-0, TE Connectivity 03P UMNL CAP HSG NATL
641965-1
te connectivity / amp
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Power to the Board PIN HDR ASSY 3P .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 15A Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 3POS, 6.35MM UNIVM-N-LHEADER,03PUMNLPINHDRASSYV2NATL TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 15A , 通孔 03P UMNL PIN HDR ASSY V2 NATL
1-480701-4
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS UNIV-M-N-L YELLOW Power to the Board 03P CAP HSG YEL Conn Housing RCP 3 POS 6.35mm Crimp ST Individual Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingConnector Style = ReceptacleContact Type = Pin or SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL CAP HSG YELL
1-480701-8
te connectivity / amp
Conn Housing RCP 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 3POS UNIV-M-N-L GRAY Power to the Board CAP HOUSE 3 POS GRAY UL94V-2 Conn Housing RCP 3 POS 6.35mm Crimp ST Individual Product Highlights:ConnectorUniversal MATE-N-LOK Product LineHousingConnector Style = ReceptacleContact Type = Pin or SocketSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL CAP HSG GRY
1-350789-2
te connectivity / amp
Conn Shrouded Header HDR 3 POS 6.35mm Solder ST Thru-Hole Power to the Board 03P PIN HDR VO, RED CONN PIN HEADER 3POS U-M-N-L RED
350789-2
te connectivity / amp
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 AU

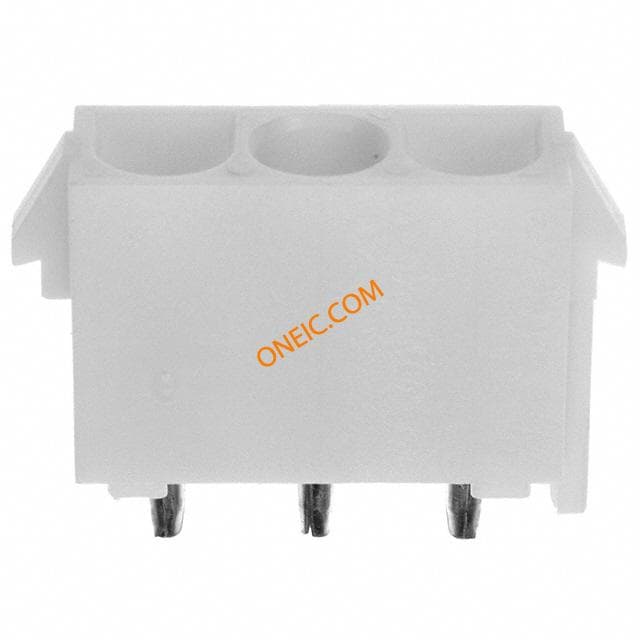

641966-1
te connectivity / amp
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN MATE-N-LOK 3 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Power to the Board 3POS VERT MATE-N-LOK Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER,PIN,3WAY,180DEG Conn;Header;Plug;3Pos;UnivMATE-N-LOK;Vertical;White;Pre-Tin TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 3路 直 PCB 针座, 焊接端接, 19A , 通孔 03P UMNL PIN HDR ASSY 94VO

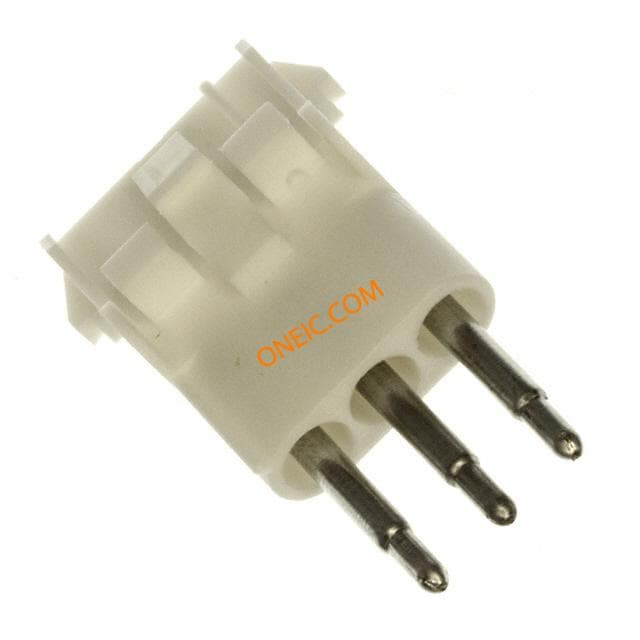

350849-3
