207016-1
| Manufacturer | |
| Description | Conn Housing RCP 4 POS 5mm Crimp ST Metrimate Connectors CONN RECEPT 4 POS METRIMATE Housing,recpt,Metrimate,sq grid,4 Way Pin & Socket Connectors RECP 4P METMATE Conn Housing RCP 4 POS 5mm Crimp ST Product Highlights:HousingSquare Grid Connector ConfigurationNumber of Positions = 4ReceptacleWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, CONN, RECEPT 4 PIN HOUSING, RECEPTACLE, 4WAY, 5 Connector,SoftShell;Receptacle;4;14A(Max.);600;Thermoplastic;Red Crimp housing 5 mm Poles 4 Contact DesignMale Metrimate, 207016-1, TE Connectivity TE Connectivity Metrimate 系列 2 行 5mm 节距 4 路 直 母 压接连接器外壳 4 POS SQ GRID METRIMATE RCPT |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 800 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | IEC |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL,VDE | RoHSELV Compliance | RoHS compliant / ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage | 600.0 | Voltage Rating | 600 V |
| Current Rating (Max) | 14 A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Red | Depth | 33.02mm |
| Pitch | 5 mm | Length | 17.86mm |
| Weight | 0.00568 | Packaging | Bulk |
| Row Spacing | 0.197" (5.00mm) | Contact Type | Male Pin |
| Polarization | PolarizingTab | 2nd Connector | With |
| Housing Color | Red | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Housing |
| Contact Finish | :- | Fastening Type | Latch Lock |
| Mounting Style | Panel | Number of Rows | 2 |
| Shaft Diameter | Without | Connector Usage | Square Grid |
| Locking Feature | Locking Tab | Contact Material | :- |
| Housing Material | Thermoplastic - GF | Length - Overall | 33.02 mm |
| Mounting Feature | Without | Package Quantity | 1,000 |
| Primary Material | InterconnectSystem | Pin Hole Diameter | 0.197" |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Red |
| Connector - Sensor | Without | Mating Orientation | Polarizing Tab |
| Number of Contacts | 4 | Contact Termination | Crimp and Solder |
| Number of Positions | 4 | Shell Size - Insert | :- |
| Center Contact Finish | 5.0 | 1st Connector Mounting Type | :Cable |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMP Metrimate |
| Coded, Keyed | No | Manufacturer | AMP |
| Product Type | Housing | Configuration | SquareGrid |
| Other Specifications | No | For Use With/Related Products | Square Grid Pin & Socket Connector |
Environmental
| Operating Temperature | -55C to 130C | ||
Documents & Media
Similar Parts
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
66406-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 26-30AWG GOLD CRIMP Contact,Pin,16,Brass,Signal,GldOverNkl Pin & Socket Connectors PIN 30-26 BR/AU SIG TYPE III Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = .36 - .76 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);30-26AWG;Crimp Contact; male; 0.05÷0.15mm2; 26÷30AWG; Type III+; gold plated III+ PIN,30-26,30AU/FL,LP
66106-7
te connectivity / amp
III+ PIN,26-24,15AU/FL,STRIP Multimate CONN PIN .062 24-26AWG AU CRIMP CONN PIN 24-26 AWG GOLD CRIMP Pin & Socket Connectors TYPE III + PIN 26-24 Contact PIN Crimp ST Cable Mount Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
66602-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 14-18AWG GOLD CRIMP Contact male crimp 18-14AWG Multimate Standard Circular Connector PIN 18-14 AWG AU Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);18-14AWG;Crimp MultiMate Type III+ Series 18-14 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 III+ PIN,18-14,30AU/FL,LP
66332-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 20-24AWG GOLD CRIMP Standard Circular Contacts PIN 24-20 30AWG REEL Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+PIN,24-20,30AU/FL,STRIP MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金触点 III+ PIN,24-20,30AU/FL,STRIP
1-66106-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG TIN CRIMP CONN PIN 24-26AWG TIN CRIMP Pin & Socket Connectors PIN 26-24 BR/SN SIG Contact PIN Crimp ST Cable Mount Strip Product Highlights:Contact Type = PinContact Classification = SignalType III+ SeriesBright Tin Contact Plating, Mating Area, MaterialWire Range = 0.12-0.24² [26-24] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,26-24,TIN,STRIP
207496-3
te connectivity / amp

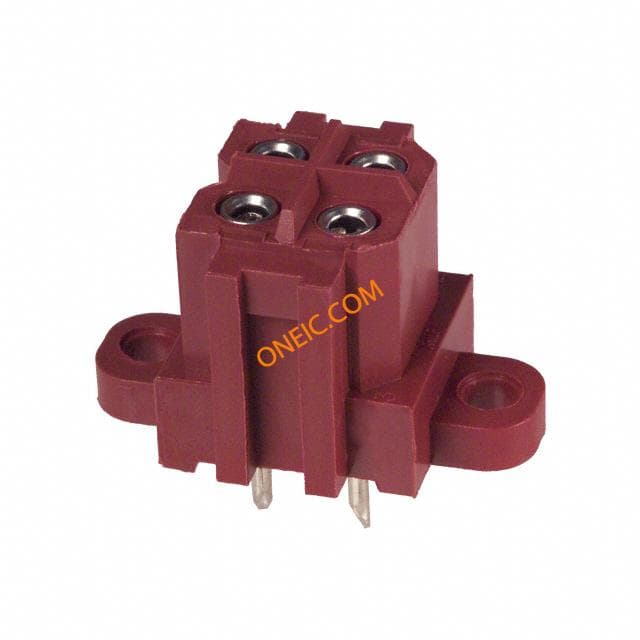

Conn Power SKT 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HEADER SKT 4POS VERT GOLD Pin & Socket Connectors SKT HDR 4P METMATE 252 SKT HDR ASSY,4 POSN,METRIMATE

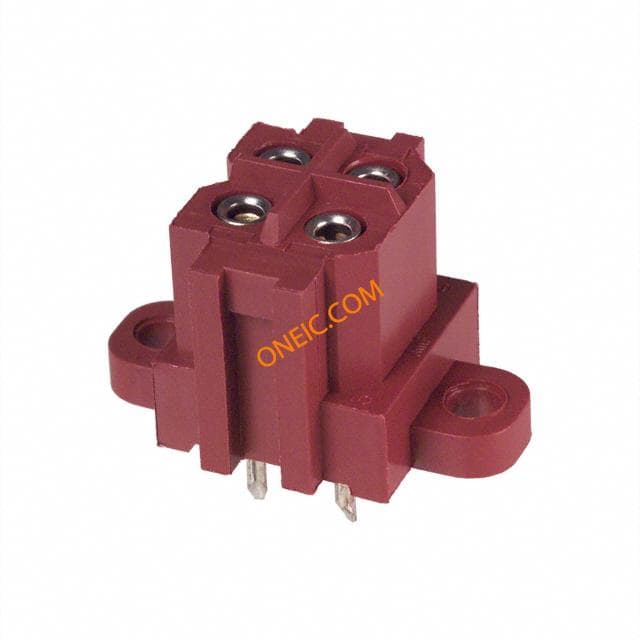

207496-1
te connectivity / amp
Conn Power SKT 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HEADER SKT 4POS VERT TIN Pin & Socket Connectors SKT HDR ASSY 4P METRIMATE 5mm (.197") Centerline, 600 V, 14 A max. (Metrimate) 5mm (.197") Centerline, 600 V, 14 A max. (Metrimate) Product Highlights:HeaderSquare Grid Connector ConfigurationNumber of Positions = 4SocketWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, SKT HDR ASSY,4 POSN,METRIMATE
207496-8
te connectivity / amp
Conn Power SKT 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HDR SCKT 4POS METRIMATE TIN IC & Component Sockets SKT HDR ASSY 4P MMATE LF
66359-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 14-18AWG AU CRIMP CONN PIN 14-18AWG GOLD CRIMP Contact male crimp 18-14AWG Multimate Pin & Socket Connectors III+ PIN18-1415 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+PIN,18-14,15AU/FL,STRIP Multimate Type III AWG 18 - 14 Insulated Discrete Wire Crimp Pin Contact TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 III+ PIN,18-14,15AU/FL,STRIP
66106-8
te connectivity / amp
III+ PIN,26-24,30AU/FL,STRIP Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG AU CRIMP CONN PIN 24-26 AWG GOLD CRIMP Pin & Socket Connectors III+ PIN26-2430 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+PIN,26-24,30AU/FL,STRIP MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接触点, 压接, 镀金触点
66099-3
te connectivity / amp
III+ PIN,18-16,15AU/FL,LP Multimate CONN PIN 16-18AWG GOLD CRIMP Contact Crimp Pin 18-16AWG Multimate Standard Circular Contacts 18-16 AWG CRIMP PIN Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 18-16AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(15)overNickel(50);18-16AWG;Crimp TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点
66400-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Standard Circular Contacts PIN 24-20AWG BULK CONTACT PIN 20-24AWG CRIMP GOLD Contact male,24-20 awg,crimp Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, 24-20AWG Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
207496-7
te connectivity / amp
Conn Power SKT 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HEADER SKT 4POS VERT TIN Header vert 4 way Socket Metimate Pin & Socket Connectors 4P SOCKET HEADER TIN METRIMATE SKT HDR ASSY,4P,MMATE LF SKT HDR ASSY,4P,MMATE LF Search Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, Headervert4waySocketMetimate TE Connectivity Metrimate 系列 工业电源 通孔 插座 , 14A额定电流, 600 V 交流/直流
1-66359-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 14-18AWG AU CRIMP CONN PIN 14-18AWG GOLD CRIMP Pin & Socket Connectors PIN 18-14AWG REEL Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSSTR,III+PIN,18-14,30AU/FL,STRIP Multimate Type III+ Series 18-14 AWG Wire to Cable Crimp Signal Pin Contact III+ PIN,18-14,30AU/FL,STRIP
1-66098-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 16-18AWG TIN CRIMP 1.57mm pin contact 18-16 AWG type 3 Sn Pin & Socket Connectors PIN 18-16 BR/SN SIG Reel of 4000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinBright Tin Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, AWG18-16 CONTACT, CRIMP, PIN, 18-16AWG, REEL TYPEIIICONTACTSSTR,III+PIN,18-16,TINSTRIP TE Connectivity Type III+ 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 18 → 16 AWG 线规格 III+ PIN,18-16,TIN STRIP

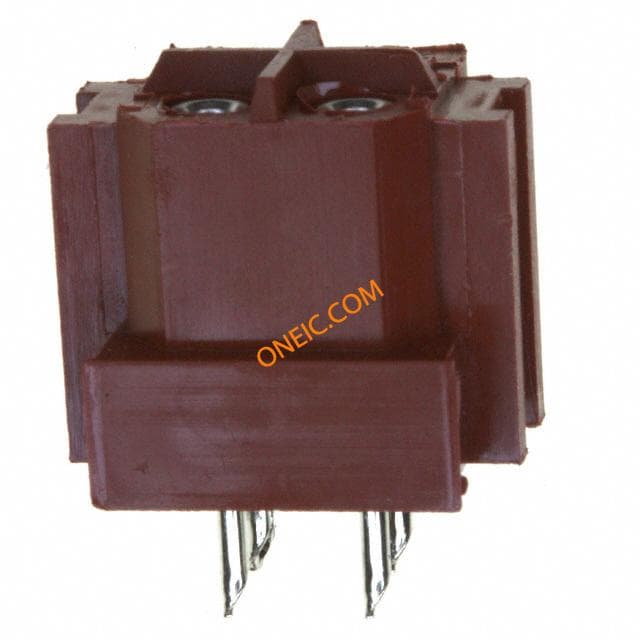

207496-2
