66332-8
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | Multimate | Product Category | Standard Circular Contacts |
| Standard Package | Tape & Reel | Factory Pack Quantity | 4000 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | ||
Electrical
| Current - Test | 13 | Current Rating (Max) | 13 A |
| Connector - Voltage Input | Crimp | Current - Output High, Low | No |
Mechanical
| Depth | 3.68 mm | Pitch | Not Required mm |
| Plating | Gold | Material | Brass |
| Packaging | Tape & Reel (TR) | Cable Type | Discrete Wire |
| Wire Gauge | 20-24 AWG | Termination | Crimp |
| Contact Size | 16 | Contact Type | Power |
| Pin Diameter | 1.57 [0.062] | Mounting Type | Straight |
| Pin or Socket | Pin | Terminal Size | 16 |
| Cable Diameter | 0.6mm² | Connector Type | Connector Power |
| Contact Finish | Gold Over Nickel | Mounting Style | Cable |
| Insert Material | 黄铜 | Material - Core | Stainless Steel |
| Material Finish | Gold | Contact Material | Brass |
| Housing Material | Not Required | Length - Overall | 27.1 mm |
| Package Quantity | 4000 | Termination Rows | 压接 |
| Insulation Height | Yes | Termination Style | 插针 |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 1 POS |
| Termination Finish | Gold Flash | Contact Termination | Crimp |
| Insulation Diameter | 2.03 â 2.54 [0.080 â 0.100] | Plating - Thickness | 30µin (0.76µm) |
| Compatible Shell Size | CPC 连接器, G 系列连接器, M 系列连接器 | Contact Finish - Mating | 镍打底镀锡 |
| Contact Finish Thickness | 30µin (0.76µm) | Wire Gauge or Range - AWG | 20AWG |
| Wire Gauge or Range - mm2 | 0.20-0.60² [24-20] | ||
Product Info
| Note | 包含压线筒在内的总绝缘压接直径不得超过 3.18 [.125]。 | Type | Stamped |
| Grade | Commercial | Gender | PIN |
| Series | Multimate Type III | Product Type | Type III+ |
| Number of Ports | 1 Port | Application Specifics | Signal |
| For Use With/Related Products | CPC 连接器、G 系列连接器、M 系列连接器 | For Use With/Related Manufacturer | G Series Connectors, CPC Connectors, M Series Connectors |
Documents & Media
Online Document
Similar Parts

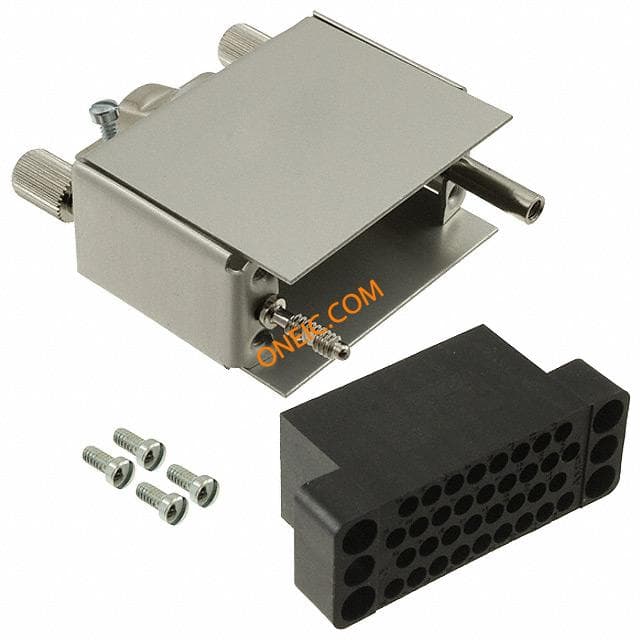

213932-4
te connectivity / amp
$87.5160
Details
200893-2
te connectivity / amp
$635.4709
Details
194279-1
te connectivity / amp
$59.6700
Details

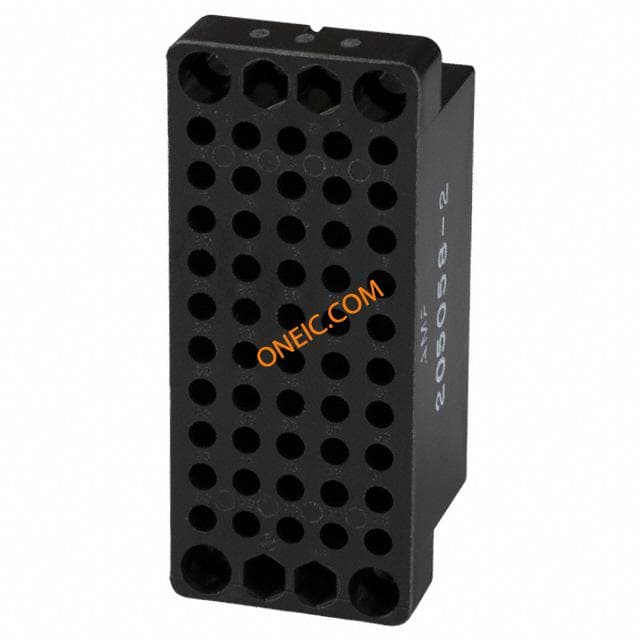

205058-2
te connectivity / amp
$218.4160
Details
213931-2
te connectivity / amp
$220.7124
Details

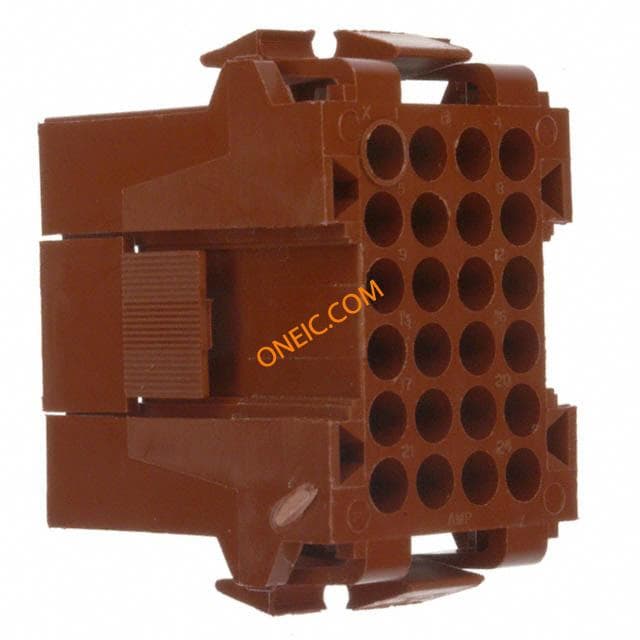

207305-1
te connectivity / amp
$15.0797
Details
207020-1
te connectivity / amp
$53.7200
Details

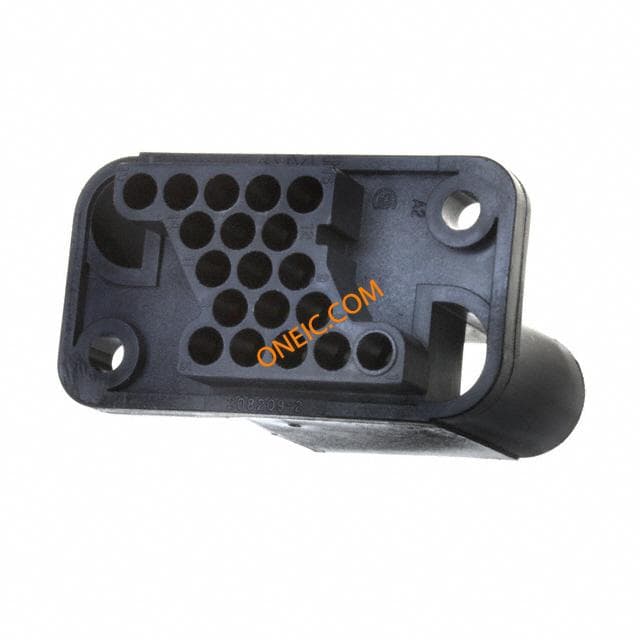

208209-2
