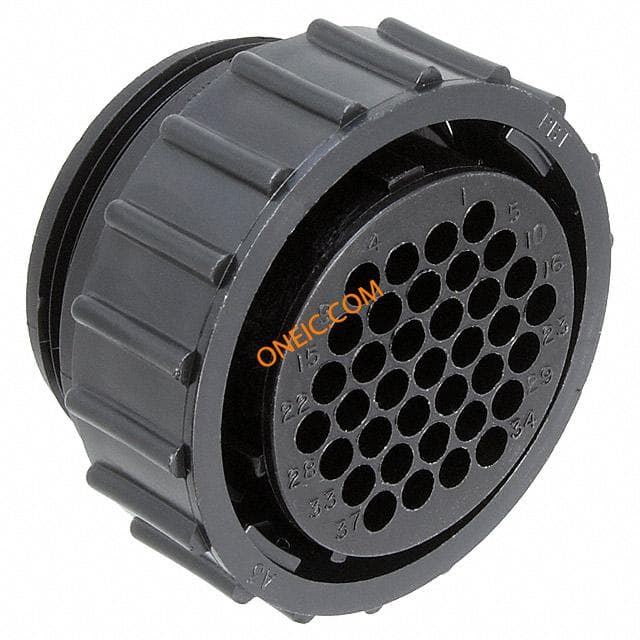

206151-1

Business

Lead Time	28 Days	Tradename	CPC Series 1
Subcategory	Connector Circular	Product Category	Standard Circular Connector
Standard Package	Bulk	Factory Pack Quantity	1

RoHS	Lead free / RoHS Compliant	Tariff No	85369010
Compliance	No	Rad Hardened	No
Leadfree Defin	Not relevant for lead free process	RoHSELV Compliance	RoHS compliant, ELV compliant
Material Flammability Rating	UL 94V-0

Voltage Rating	250 V ac	Number of Channels	37
Insulation Resistance	:5000Mohm	Connector - Voltage Input	w/o terminals

Color	Black	Depth	44.45 mm
Height	44.45 mm	Sealed	No
Weight	0.025	Packaging	Bulk
Cable Exit	No	Shell Size	23
Orientation	A	Shell Style	Receptacle
Termination	Crimp	Thread Size	1-3/8 - 18 UNEF-2A
Contact Form	37Signal	Contact Size	16
Contact Type	Crimp	Housing Color	Black
Mounting Type	Panel Mount	Angle of Throw	Straight
Connector Type	Receptacle for Male Contacts	Fastening Type	Threaded
Mounting Style	Panel	Package / Case	size 23
Connector Style	Receptacle	Insertion Angle	:23-37
Locking Feature	threaded joint, external thread	Material - Body	:Glass Filled Thermoplastic
Panel Thickness	0.125"	Housing Material	Thermoplastic
Length - Overall	34.29 mm	Package Quantity	1
Panel Mount Type	Square Flange	Primary Material	CircularPlasticConnector
Connector - Cable	socket	Termination Style	Wire
1st Contact Gender	Male	Color - Connectors	:Black
Mating Orientation	Keyed	Number of Contacts	37
Insulation Diameter	2.54 [0.100]	Number of Positions	37
Shell Size - Insert	All Plastic	Mounting Hole Diameter	0.15"
Shell Material, Finish	Thermoplastic	Material - Housing & Prism	thermoplastic
1st Connector Mounting Type	:Panel	2nd Connector Mounting Feature	Standard
Shell Size - Insert (Convert To)	23-37

Spg	1	Note	Contacts Not Provided
Type	CPC	Gender	RCP
Series	Series 1	Key Type	A
Polarity	A	Preloaded	No
Arrangement	23-37	Manufacturer	Series1
Product Type	Connector	Adapter Series	CPC Series 1
Number of Units	1	RF Family/Standard	206151
Other Specifications	Without	Application Specifics	Commercial
For Use With/Related Products	Pin Contacts
