206150-1
| Manufacturer | |
| Description | Conn Sealed CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port CPC Connectors CONN PLUG CPC 37POS STD SER 1 37 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG 37 POSITION shell size 23 Conn Sealed CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 23-37, FREE ConnectorHousing;CPCPlugAssy;37Pos.;Sz.23;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:37 Plug CPC1 Poles=37, accepts female contacts / Free hanging/cable mount, 206150-1, TE Connectivity TE Connectivity 37路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-37 |
| Category |
Business
| Lead Time | 126 Days | Tradename | CPC Series 1 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Compliance | No | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | :250V | Voltage - Working | :250V |
| Number of Channels | 37 | Current Rating (Max) | :13A |
| Insulation Resistance | :5000Mohm | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Black | Sealed | No |
| Weight | 2.57 | Diameter | 45.28 mm |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 23 | Orientation | A |
| Shell Style | Plug | Termination | Crimp |
| Thread Size | 1-3/8 - 18 UNEF-2A | Contact Form | 37Signal |
| Contact Size | 16 | Contact Type | Crimp |
| Housing Color | Black | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Plug for Female Contacts |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Package / Case | size 23 | Connector Style | Plug |
| Insertion Angle | :23-37 | Locking Feature | threaded joint, internal thread |
| Material - Body | :Glass Reinforced Nylon (Polyamide) | Material - Core | Polyester |
| Housing Material | Nylon 6/6 GF | Length - Overall | 27.43 mm |
| Package Quantity | Standard | Primary Material | CircularPlasticConnector |
| Connector - Cable | plug | Termination Style | Wire |
| 1st Contact Gender | Female | Color - Connectors | :Black |
| Diameter - Ring ID | 45.29 [1.783] | Mating Orientation | Keyed |
| Number of Contacts | 37 | Number of Positions | 37 |
| Shell Size - Insert | All Plastic | Shell Material, Finish | Thermoplastic |
| Material - Housing & Prism | thermoplastic | 1st Connector Mounting Type | :Free |
| 2nd Connector Mounting Feature | Standard | Shell Size - Insert (Convert To) | 23-37 |
Product Info
| Spg | 1 | Note | Contacts Not Provided |
| Type | Sealed CPC | Gender | PL |
| Series | Series 1 | Key Type | A |
| Polarity | A | Preloaded | No |
| Arrangement | 23-37 | CAD Drawing | 3D CAD Model |
| Manufacturer | Series1 | Product Type | Connector |
| Adapter Series | CPC Series 1 | Number of Units | 1 |
| RF Family/Standard | 206150 | Other Specifications | Without |
| Application Specifics | Commercial | For Use With/Related Products | Socket Contacts |
Environmental
| Ingress Protection | IP65 | Operating Temperature | :105°C |
Documents & Media
Similar Parts
206151-2
te connectivity / amp
Conn CPC PIN 37 POS Crimp ST Cable Mount 37 Terminal 1 Port CPC Connectors CONN RECEPT CPC 37POS STD SER 1 37 Pole Female Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECEPTACLE 37 PIN free hanging s.s. 23 Conn CPC PIN 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR, RECEPTACLE, 23-37, FREE ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; male; w/o terminals Receptacle CPC 1 37P Female 23, 206151-2, TE Connectivity TE Connectivity 37路 电缆安装 直向 连接器 插座 , 公触点 23-37 F.H. RECEPT
206151-4
te connectivity / amp
Conn Sealed CPC PIN 37 POS ST Cable Mount 37 Terminal 1 Port Standard Circular Connector RECEPTACLE 37 PIN free hanging s.s. 23 CPC Connectors CONN RCPT CPC 37POS FREE HANGING 37 Pole Female Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Conn Sealed CPC PIN 37 POS ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;FreeHang;StdSex Receptacle CPC Special Series 1 Poles=37, accepts male contacts / Free hanging/cable mount / sealed, 206151-4, TE Connectivity TE Connectivity 37路 电缆安装 直向 连接器 插座 , 公触点 CPC RECPT SEALED SIZE 23-37
206151-1
te connectivity / amp
Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN RECEPT CPC 37POS STD SER 1 37 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector RECEPTACLE 37 PIN shell size 23 Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR, RECEPTACLE, 23-37, PANEL ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;PanelMnt;StdSex Connector: circular; Series: CPC Series 1; socket; male; PIN:37 Receptacle CPC1 Poles=37, accepts male contacts / with flange, 206151-1, TE Connectivity TE Connectivity 37路 面板安装 直向 连接器 插座 , 公触点 23-37 RECEPT STD SEX
206151-3
te connectivity / amp
Conn Sealed CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN RECEPT CPC 37POS STD SER 1 37 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector REC PIN 23-37 PNL SEALED Conn Sealed CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;PanelMnt;StdSex Receptacle CPC Special Series 1 Poles=37, accepts male contacts / with flange / sealed, 206151-3, TE Connectivity TE Connectivity 37路 面板安装 直向 连接器 插座 , 公触点 CPC RECPT SEALED SIZE 23-37
208132-2
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port CPC Connectors CONN RCPT CPC 37POS STD SER 1 Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC (Circular Plastic) and Circular Metal-Shell Connectors CPC (Circular Plastic) and Circular Metal-Shell Connectors Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC
1-796406-1
te connectivity / amp
Conn CPC PIN 37 POS Solder RA Thru-Hole 37 Terminal 1 Port Standard Circular Connector CPC PSTD RCPT 23-37 R/A LF CPC Connectors CONN RCPT CPC 37POS R/A Conn CPC PIN 37 POS Solder RA Thru-Hole 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PSTD RCPT,23-37,R/A LF
206934-5
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC RECPT ASSEMBLY SIZE 23-37
796406-1
te connectivity / amp
Conn CPC PIN 37 POS Solder RA Thru-Hole 37 Terminal 1 Port Standard Circular Connector CPC POSTED RCPT 23-37 R/A CPC Connectors CONN RECEPT CPC 37POS STD SER1 CPC Connectors Product Highlights:ConnectorNumber of Positions = 37ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC POSTED RCPT,23-37,R/A
1-206934-7
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC Series 1 Panel Mount Receptacle 37 Position Circular Plastic Connector CPC RECPT ASSEMBLY SIZE 23-37
2-206934-1
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC
1-206934-1
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT 37 Pole Female Straight Through Hole Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector REC PIN 23-37 PCB Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;CPC;ReceptAssyw/Pins;37Pos;Sz23;Series1;PanelMnt;StdSex CPC Series 1 Flange Receptacle 37 Position 23 Shell Circular Plastic Connector Receptacle CPC1 Poles=37, accepts male contacts / with flange / sealed, 1-206934-1, TE Connectivity TE Connectivity 37路 通孔 直向 连接器 插座 , 公触点 CPC RECPT ASSEMBLY SIZE 23-37
1-796406-2
te connectivity / amp
Conn CPC PIN 37 POS Solder RA Thru-Hole 37 Terminal 1 Port Standard Circular Connector PSTD RCPT 23-37 R/A CPC Connectors CONN RCPT CPC 37POS R/A W/INSERT Conn CPC PIN 37 POS Solder RA Thru-Hole 37 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PSTD RCPT,23-37,R/A LF, inserts
1-206934-9
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC
787610-1
te connectivity / amp
Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN RCPT CPC 37POS SIZE 23 Standard Circular Connector CPC RECPT,SIZE 23-37 W/INSERTS Conn CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCRecept.Assy;37Pos;Sz23;Series1;PanelMnt;StdSex CPC RECPT,SIZE 23-37 W/INSERTS
1-206934-8
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT 1-206934-8 CPC (Circular Plastic) and Circular Metal-Shell Connectors CPC (Circular Plastic) and Circular Metal-Shell Connectors Product Highlights:Preloaded37 Positions37 Signal Positions0 Power PositionsConnector Style = ReceptacleSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC RECPT ASSEMBLY SIZE 23-37
1-66358-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SKT .062 14-18AWG AU CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Pin & Socket Connectors III+ SKT 18-14 30AU Contact SKT Crimp ST Cable Mount Strip Product Highlights:Contact Type = SocketContact Classification = SignalType III+ SeriesGold (30) Contact Plating, Mating Area, MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contactfemalecrimp18-14AWGMultimate TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 18 → 14 AWG 线规格 III+ SKT,18-14,30AU/FL,STRIP
208132-1
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port CPC Connectors CONN RCPT CPC 37POS STD SER 1 Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC RECPT ASSEMBLY SIZE 23-37
1-206934-6
te connectivity / amp
CPC POSTED RCPT ASSY,SZ 23-37 Standard Circular Connector CPC POSTED RCPT ASSY SZ 23-37 Standard Circular Connectors CPC POSTED RCPT ASSY SZ 23-37 CONN RCPT CPC 37POS PANEL MOUNT
206934-7
te connectivity / amp
Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-37 CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT Conn CPC PIN 37 POS Solder ST Panel Mount 37 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC

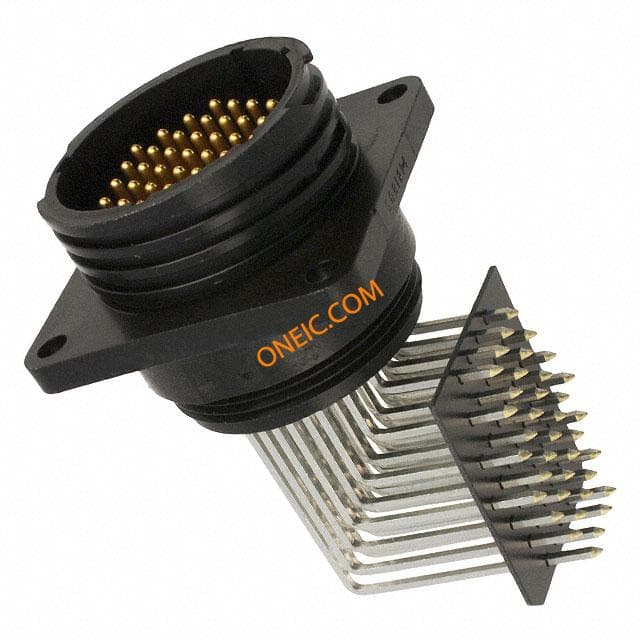

1776906-1
