66361-1
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount Loose Piece CONN PIN 14-18AWG 30GOLD CRIMP Series 1 gold plated pin contact Standard Circular Contacts TYPE III+ PIN 18-14 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, TYPE3, SIZE16, PK10 III+PIN,18-14,30AU>10,LP TE Connectivity Type III+ 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 18 → 14 AWG 线规格 III+ PIN,18-14,30AU>10,LP |
| Category |
Business
| Tradename | Multimate | Other Names | 663611 |
| Product Category | Standard Circular Contacts | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | ||
Electrical
| Current Rating (Max) | 13 A | ||
Mechanical
| Depth | 3.68 mm | Weight | 0.004 |
| Plating | Gold | Material | Brass |
| Packaging | Bulk | Cable Exit | No |
| Wire Gauge | 14-18 AWG | Termination | Crimp |
| Contact Form | 1Signal | Contact Size | :14 |
| Contact Type | Signal | Mounting Type | Straight |
| Pin or Socket | Pin | Shell Plating | Not Required |
| Connector Type | Connector Circular | Contact Finish | Gold Over Nickel |
| Mounting Style | Cable | Contact Material | Brass |
| Length - Overall | 27.48mm | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 1 POS | Contact Termination | Crimp |
| Plating - Thickness | 30µin (0.76µm) | Wire Gauge or Range - AWG | :18AWG |
| Wire Gauge or Range - mm2 | :2.5mm² | Diameter - Outside, Non-Expanded | :2.54mm |
Product Info
| Type | Stamped | Gender | PIN |
| Series | Type III | RF Family/Standard | 66361 |
| For Use With/Related Products | :Type III+ Series Connectors | ||
Documents & Media
Similar Parts
211401-7
te connectivity / amp
Conn CPC SKT 7 POS ST Panel Mount 7 Terminal 1 Port Standard Circular Connector RECEPT SZ 13-7 CPC Connectors CONN RCPT CPC 7POS STD SER 1 CPC (Circular Plastic) and Circular Metal-Shell Connectors CPC (Circular Plastic) and Circular Metal-Shell Connectors Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 77 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPT,SZ 13-7,CPC
208486-3
te connectivity / amp
Conn Metal Shell CPC PIN 14 POS Crimp ST Cable Mount 14 Terminal 1 Port CPC Connectors CONN PLUG CMC 14POS REV SER 1 Standard Circular Connector CMC PLUG 22-14 Conn Metal Shell CPC PIN 14 POS Crimp ST Cable Mount 14 Terminal 1 Port Product Highlights:HousingHousing Type = PlugNumber of Positions = 1414 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CMC PLUG ASSEMBLY,SZ 22

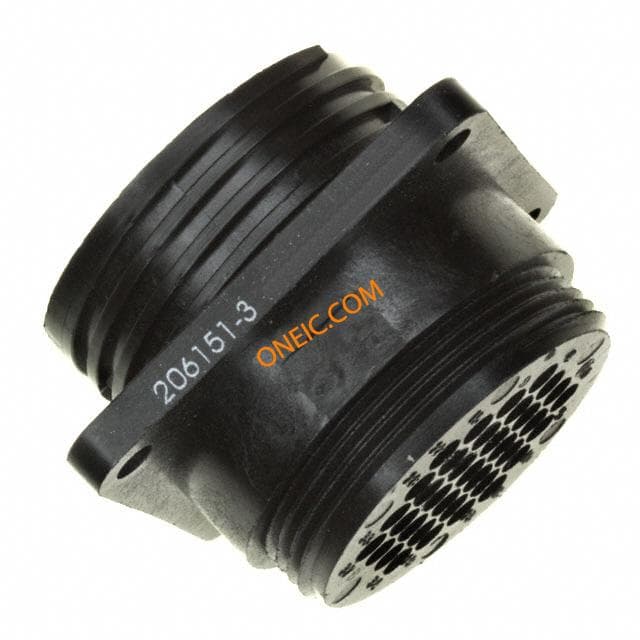

206151-3
te connectivity / amp
Conn Sealed CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port CPC Connectors CONN RECEPT CPC 37POS STD SER 1 37 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector REC PIN 23-37 PNL SEALED Conn Sealed CPC PIN 37 POS Crimp ST Panel Mount 37 Terminal 1 Port Product Highlights:HousingHousing Type = ReceptacleNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;37Pos.;Sz.23;Series1;PanelMnt;StdSex Receptacle CPC Special Series 1 Poles=37, accepts male contacts / with flange / sealed, 206151-3, TE Connectivity TE Connectivity 37路 面板安装 直向 连接器 插座 , 公触点 CPC RECPT SEALED SIZE 23-37
211772-1
te connectivity / amp
Conn CPC PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port CPC Connectors CONN PLUG CPC 19POS REV SER 1 19 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector PLUG 19 POSITION shell size 23 Conn CPC PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 19PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR PLUG SIZE 23 19POS FREE HANGING ConnectorHousing;CPCPlugAssy;19Pos.;Sz.23;Series1;FreeHang;RevSex Cable plug, series CPC 19-pin CPC 1 19P Male 23, 211772-1, TE Connectivity TE Connectivity 19路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 23-19

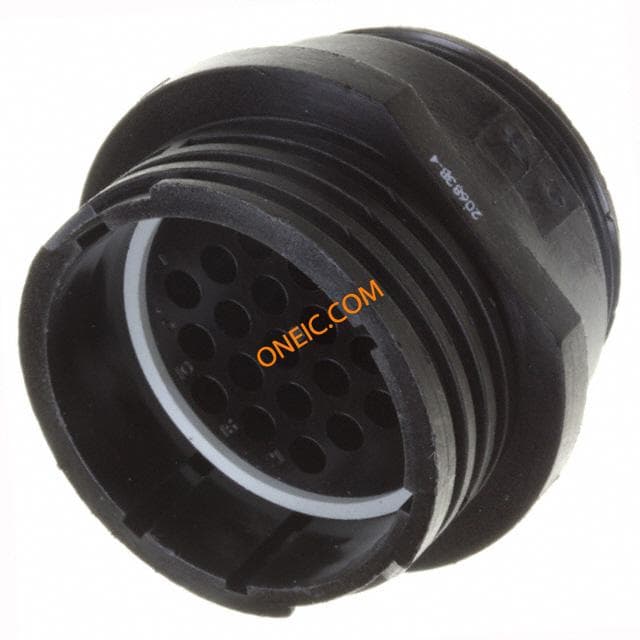

206838-4
