点击放大查看
1-206934-1
| Manufacturer | |
| Description | Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port CPC Connectors CONN RCPT CPC 37POS PANEL MOUNT 37 Pole Female Straight Through Hole Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector REC PIN 23-37 PCB Conn CPC PIN 37 POS Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;CPC;ReceptAssyw/Pins;37Pos;Sz23;Series1;PanelMnt;StdSex CPC Series 1 Flange Receptacle 37 Position 23 Shell Circular Plastic Connector Receptacle CPC1 Poles=37, accepts male contacts / with flange / sealed, 1-206934-1, TE Connectivity TE Connectivity 37路 通孔 直向 连接器 插座 , 公触点 CPC RECPT ASSEMBLY SIZE 23-37 |
| Category |
Business
| Tradename | CPC Series 1 | Product Category | Standard Circular Connector |
| Standard Package | Trays | Factory Pack Quantity | 12 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Compliance | No | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-0 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Input | 1.575 | Voltage Rating | 600VAC/DC |
| Number of Poles | 37 | Fluid Resistance | 无 |
| Number of Channels | 37 | Current Rating (Max) | 13A |
| Connector - Voltage Input | 标准 | ||
Mechanical
| Depth | 44.45 | Height | 34.41 |
| Sealed | No | Outline | 23 |
| Packaging | Tray | Cable Exit | No |
| Shell Size | 23 | Orientation | A |
| Shell Style | Receptacle | Termination | Solder |
| Thread Size | M3 | Contact Type | 37Signal |
| Housing Color | Black | Mounting Type | Through Hole |
| Pin or Socket | Pin | Shell Plating | Elastomer |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold Over Nickel |
| Fastening Type | Threaded | Mounting Style | Panel |
| Number of Pins | 0 | Shell Material | 母端, 母端 |
| Connector Style | Receptacle | Contact Material | Gold-plated |
| Housing Material | Thermoplastic | Length - Overall | 44.45 |
| Package Quantity | 12 | Panel Mount Type | Square Flange |
| Primary Material | CircularPlasticConnector | Termination Rows | 焊接 |
| Termination Style | Printed Circuit Board | 1st Contact Gender | PIN |
| Color - Connectors | black | Mating Orientation | Keyed |
| Number of Contacts | 37 | Termination Finish | Gold |
| Number of Positions | 37 | Shell Size - Insert | All Plastic |
| 1st Connector Gender | Male | Mounting Hole Diameter | 3.81 [.150] |
| Shell Material, Finish | Thermoplastic | Termination Post Length | 15.70 [0.618] |
| Contact Finish Thickness | 30µin (0.76µm) | 1st Connector Mounting Type | Panel |
| 2nd Connector Mounting Feature | Standard | Shell Size - Insert (Convert To) | 23-37 |
Product Info
| Note | Posts are 0.43 [.017] offset from centerline of contacts. All posts must be ori | Type | CPC |
| Gender | RCP | Series | Series 1 |
| Key Type | A | Preloaded | Yes |
| Description | With peripheral seal | Peripherals | Gray |
| Manufacturer | Series1 | Product Type | Connector |
| Other Specifications | Without | ||
Environmental
| Operating Range | 不密封, 密封 | Ingress Protection | IP65 |
| Operating Temperature | -40°C ~ 105°C | ||
Similar Parts
206150-3
te connectivity / amp
Conn CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port CPC Connectors CONN CPC PLUG 37POS W/O SOCKET 37 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Standard Circular Connector CPC PLUG ASSEMBLY SI Conn CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Product Highlights:HousingHousing Type = PlugNumber of Positions = 3737 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC HOUSINGPLUG37WAY Connector: circular; Series: CPC Series 1; plug; female; PIN:37 TE Connectivity 37路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-37
206150-1
te connectivity / amp
Conn Sealed CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port CPC Connectors CONN PLUG CPC 37POS STD SER 1 37 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector PLUG 37 POSITION shell size 23 Conn Sealed CPC SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, PLUG, 23-37, FREE ConnectorHousing;CPCPlugAssy;37Pos.;Sz.23;Series1;FreeHang;StdSex Connector: circular; Series: CPC Series 1; plug; female; PIN:37 Plug CPC1 Poles=37, accepts female contacts / Free hanging/cable mount, 206150-1, TE Connectivity TE Connectivity 37路 电缆安装 直向 连接器 插头 , 母触点 CPC PLUG ASSEMBLY SIZE 23-37

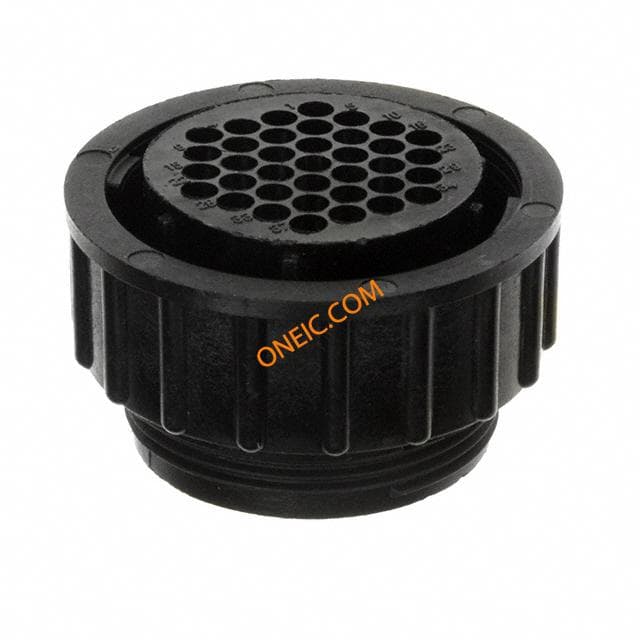

182923-1
