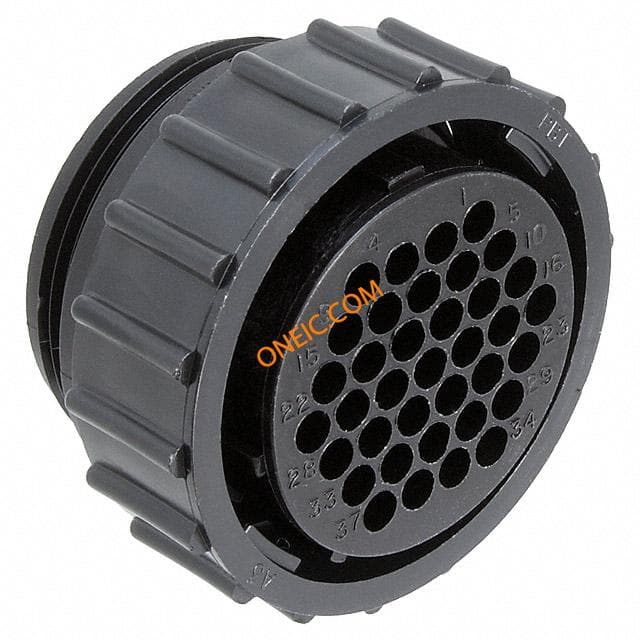

1-796406-1
| Manufacturer | |
| Description | Conn CPC PIN 37 POS Solder RA Thru-Hole 37 Terminal 1 Port Standard Circular Connector CPC PSTD RCPT 23-37 R/A LF CPC Connectors CONN RCPT CPC 37POS R/A Conn CPC PIN 37 POS Solder RA Thru-Hole 37 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 37ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC PSTD RCPT,23-37,R/A LF |
| Category |
Business
| Tradename | CPC Series 1 | Product Category | Standard Circular Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | Compliance | No |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 600VAC/DC | Fluid Resistance | 无 |
| Number of Channels | 37 | Current Rating (Max) | 13A |
Mechanical
| Sealed | No | Outline | 23 |
| Packaging | Tray | Shell Size | 23 |
| Orientation | A | Shell Style | Receptacle |
| Termination | Solder | Thread Size | 1-3/8 - 18 UNEF-2A |
| Housing Color | Black | Mounting Type | Through Hole |
| Pin or Socket | Pin | Connector Type | Receptacle, Male Pins |
| Contact Finish | Gold | Fastening Type | Threaded |
| Mounting Style | Panel | Number of Pins | 0 |
| Connector Style | Receptacle | Housing Material | Thermoplastic |
| Length - Overall | 2.83 | Package Quantity | 8 |
| Panel Mount Type | 带有 | Termination Style | Solder Tail |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Threaded |
| Number of Contacts | 37 | Termination Finish | Tin |
| Number of Positions | 37 | Shell Size - Insert | All Plastic |
| Mounting Hole Diameter | 3.81 [.150] | Shell Material, Finish | Thermoplastic |
| Contact Finish Thickness | 30µin (0.76µm) | 1st Connector Mounting Type | Panel |
| 2nd Connector Mounting Feature | Standard | ||
Product Info
| Type | CPC | Gender | RCP |
| Series | CPC | Key Type | A |
| Preloaded | Yes | Product Type | Connectors |
| Other Specifications | Without | ||
Environmental
| Operating Temperature | -40°C ~ 105°C | ||
