2-5499141-6
| Manufacturer | |
| Description | Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 26POS R/A POLAR GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 26 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings UNIV HDR 26P RA BLUE LARGE LATCH Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 26WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P RA LG LAT BLUE |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 40 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Voltage Rating | 250 V ac |
| Switch Function | Ejection | Voltage - Breakdown | :500V |
| Current Rating (Max) | 1A | Insulation Resistance | :1Gohm |
Mechanical
| Color | Blue | Pitch | 2.54 mm |
| Weight | 0.0817 | Material | :Glass Reinforced Thermoplastic |
| Packaging | Tray | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Pitch - Post | 2.54 x 2.54 [.100 x .100] | Polarization | Center |
| 2nd Connector | With | Housing Color | Blue |
| Mounting Type | Right Angle | Connector Type | Universal Ejection Pin Headers |
| Contact Finish | Gold Over Nickel | Fastening Type | Latch Lock/Eject Hooks |
| Number of Rows | 2 | Package / Case | 4-Sided |
| Locking Feature | Latch | Profile (W x H) | Standard |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic Glass Reinforced |
| Size / Dimension | 0.64 [.025] | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Mating Orientation | With |
| Number of Contacts | 26 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 26 | Contact Length - Mating | 0.240" (6.10mm) |
| Termination Post Length | 2.79 [0.110] | Contact Finish Thickness | 30µin (0.76µm) |
| 1st Connector Mounting Type | :PC Board | ||
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | AMP LATCH | Polarity | :Bump/Clip |
| Product Type | Headers | Other Specifications | With |
| Number of Positions Loaded | All | ||
Environmental
| Mating Cycles | :200 | Temperature Rating | Standard |
| Operating Temperature | -55 â +125 | ||
Documents & Media
Similar Parts
1658623-6
te connectivity / amp
Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 26POS GOLD Connector,Receptacle,Novo,26,Gold(30) Connector; Receptacle; Novo; 26; Gold (30); Tin-Lead; 0.100 in. x 0.100 in. Headers & Wire Housings .1CL IDC REC 2X13P MIL 30AU Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM Connector,Receptacle;Novo;26;Gold(30);Tin-Lead;0.100in.x0.100in. TE Connectivity AMP-LATCH Novo 系列 2行 26路 2.54mm节距 母 IDC 连接器 , 电缆安装 26 NOVO MIL 30DP, LEAD FREE
1-1658526-6
te connectivity / amp
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RECEPT 26POS .100 30GOLD 26 Way HE10 Skt w/ Strain Relief Headers & Wire Housings IDC RCPT 26P W/STR RLF Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 26WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,26POSITION,MATINGPOLARIZATION TE Connectivity AMP-LATCH 609 系列 2行 26路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 609-2641LF FEM SOCKT,LEAD FREE
1658620-6
te connectivity / amp
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 26POS 15 GOLD CONNECTOR, RECEPTACLE, NOVA, AMP-LATCH Headers & Wire Housings MLTRY PLRZD RECPT 26 NOVO Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,26POSITION,WITHMATINGPOLARIZATION 26 NOVO MIL 15DP, LEAD FREE
2-1761605-7
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings HDR IDC P 20 RA .062 Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 20POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 20WAY 20wayIDClowprofiler/amountheader TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 20P RA BLUE

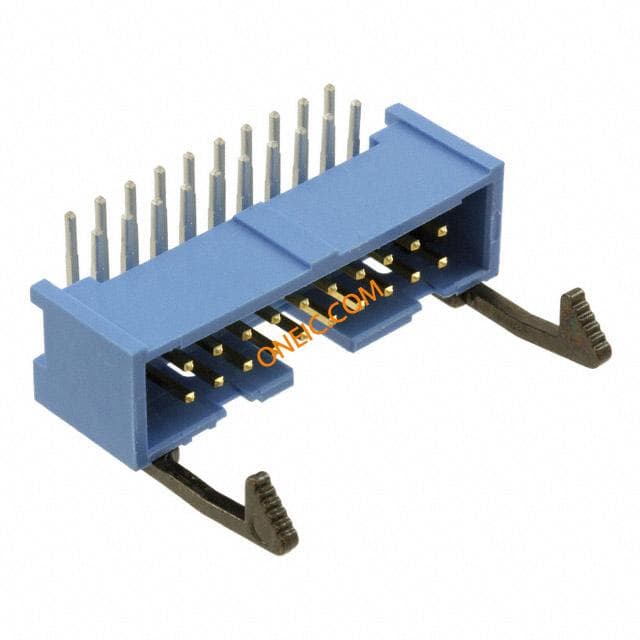

2-1761607-7
te connectivity / amp
Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 20POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings IDC LOW PRO HDR 20P RA LARGE LATCH Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 20WAY 20waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 20P RA LG LAT
191-2801-126
Amphenol Spectra-Strip
Flat Cables 28 AWG Ribbon .050 Zip 26 Cond FLAT CABLE 26PTS AWG28 Planar/ribbon cable,1.27mm pitch,26 way cable;flat(planar);gray pvc insul w/1 red edge;26 conductor;28 awg stranded; 30m Flat Cable 26Conductors 28AWG 30.48m Tinned Copper Gray/Red Edge 300V 1A RIBBON CABLE, 26WAY, PER M, 28AWG, 300V RIBBON CABLE, 26WAY, 30.5M FLAT CABLE, 26COND, 100FT, 28AWG, 300V cable, flat(planar), gray pvc insul w/1 red edge, 26 conductor, 28 awg stranded Cable: ribbon; 1.27mm; stranded; Cu; 26x28AWG; PVC; grey; 30,5m Ribbon Cable 1.27 mm 26xAWG 28, 191-2801-126, Amphenol Amphenol Spectra-Strip 系列 无屏蔽 带状电缆
1658621-6
te connectivity / amp
Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 26POS W/POL 15 GOLD 26way polarised skt w/o strain relief Headers & Wire Housings CNTR PLRZD RECPT 26P NOVO Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR, HEADER, IDC, 2.54MM, 26WAY Connector,Receptacle;Novo;26;Gold(15);Tin-Lead;0.100in.x0.100in. Plug; IDC; female; PIN:26; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 26P, 1658621-6, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 26路 2.54mm节距 直角 电缆安装 母 IDC 连接器 26 NOVO MIL/CTR 15DP,LEAD FREE
2-1761606-9
te connectivity / amp
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 26POS VERT GOLD TE Connectivity 2-1761606 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings IDC LOW PRO HDR 26P VERT LARGE LATCH Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 26WAY HEADER,PIN,IDC,AMP-LATCH,26POS,LOWPROFILE,PCB,VERTICAL,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 26P VERT LG LA
2-1761603-9
te connectivity / amp
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 26POS 30AU TE Connectivity 2-1761603 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings IDC LOW PRO HDR 26P VERT BLUE Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 26WAY HEADER,PIN,IDC,AMP-LATCH,26POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:26; straight; THT; gold plated; 2.54mm TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 26P VERT BLUE

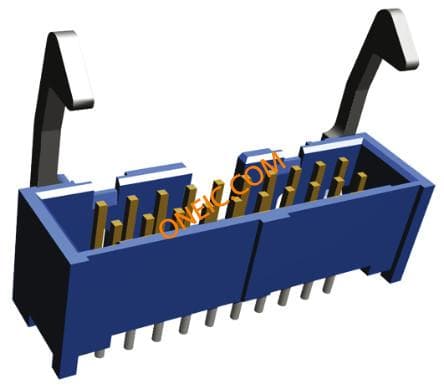

2-1761606-7
