1-1658527-0
| Manufacturer | |
| Description | Headers & Wire Housings 26 POS RECPT 30 AU Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 26POS W/STRAIN RELIEF 26 way IDC bump polarised socket Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 26WAY AMP-LATCH622SeriesReceptacle,26Pos.,w/StrainRelief,.100X.100,Blue TE Connectivity AMP-LATCH 622 系列 2行 26路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-2641LF FEM SOCKT,LEAD FREE |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | 1,500 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - 622 Series | Switch Function | Unlatched |
| Voltage - Breakdown | :500V | Current Rating (Max) | 1 A |
| Insulation Resistance | :1Gohm | Contact Rating (Current) | :1A |
Mechanical
| Color | Blue | Depth | 7.05 mm |
| Pitch | 0.100" (2.54mm) | Height | 12.1 mm |
| Weight | 0.004 | Material | :Glass Feinforced Thermoplastic |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Cable Exit | With | Wire Gauge | 26-28 AWG, Stranded or Solid |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Pitch - Post | 2.54 x 2.54 [.100 x .100] |
| Polarization | Center & Military | 2nd Connector | Without |
| Housing Color | Blue | Mounting Type | No |
| Cable End Type | Without | Connector Type | 622 Series |
| Contact Finish | Gold (30) | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | Beryllium Copper |
| Housing Material | Thermoplastic | Length - Overall | 37.52 mm |
| Mounting Feature | Without | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Mating Orientation | With | Number of Contacts | 26 |
| Contact Termination | :IDC / IDT | Number of Positions | 26 |
| Contact Finish Thickness | 30µin (0.76µm) | 1st Connector Mounting Type | :Cable |
Product Info
| Type | Ribbon Cable | Gender | Receptacle |
| Series | AMP-LATCH | Features | Feed Through; Polarizing Key, Strain Relief |
| Polarity | :Bump/Clip | CAD Drawing | 3D CAD Model |
| Product Type | Socket Headers | Connection Type | Ribbon Cable |
Environmental
| Mating Cycles | :200 | Operating Temperature | - 55 C to + 125 C |
Similar Parts
2-1761605-9
te connectivity / amp

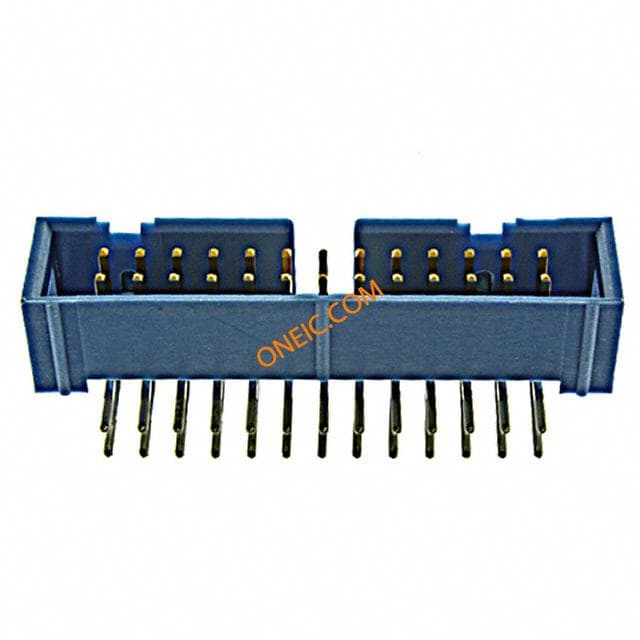

Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 26POS 30AU Headers & Wire Housings PIN HEADER 26 POS R/A LOW PROFILE Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 26WAY IDCHDRS7BOXNOEJ,IDCLOWPROHDR26PRABLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 26P RA BLUE
191-2801-126
Amphenol Spectra-Strip
Flat Cables 28 AWG Ribbon .050 Zip 26 Cond FLAT CABLE 26PTS AWG28 Planar/ribbon cable,1.27mm pitch,26 way cable;flat(planar);gray pvc insul w/1 red edge;26 conductor;28 awg stranded; 30m Flat Cable 26Conductors 28AWG 30.48m Tinned Copper Gray/Red Edge 300V 1A RIBBON CABLE, 26WAY, PER M, 28AWG, 300V RIBBON CABLE, 26WAY, 30.5M FLAT CABLE, 26COND, 100FT, 28AWG, 300V cable, flat(planar), gray pvc insul w/1 red edge, 26 conductor, 28 awg stranded Cable: ribbon; 1.27mm; stranded; Cu; 26x28AWG; PVC; grey; 30,5m Ribbon Cable 1.27 mm 26xAWG 28, 191-2801-126, Amphenol Amphenol Spectra-Strip 系列 无屏蔽 带状电缆
2-1761606-9
te connectivity / amp
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 26POS VERT GOLD TE Connectivity 2-1761606 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings IDC LOW PRO HDR 26P VERT LARGE LATCH Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 26WAY HEADER,PIN,IDC,AMP-LATCH,26POS,LOWPROFILE,PCB,VERTICAL,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 26P VERT LG LA
2-1761603-9
te connectivity / amp

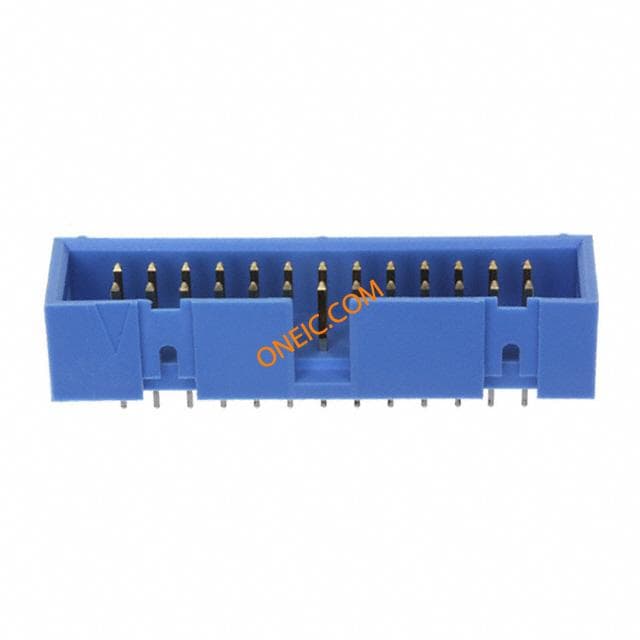

Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 26POS 30AU TE Connectivity 2-1761603 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings IDC LOW PRO HDR 26P VERT BLUE Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 26WAY HEADER,PIN,IDC,AMP-LATCH,26POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:26; straight; THT; gold plated; 2.54mm TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 26P VERT BLUE
2-1761607-9
te connectivity / amp
Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 26POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 26 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings IDC CONNECTOR Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 26WAY 26waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 26P RA LG LAT
5499206-6
te connectivity / amp

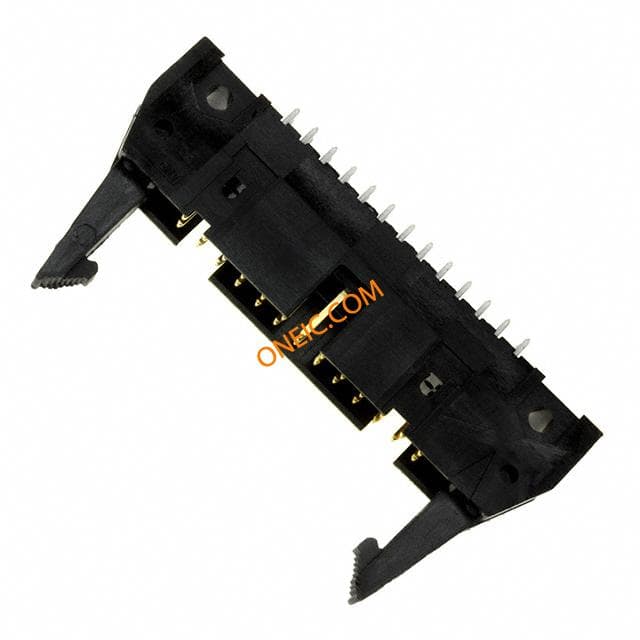

Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD AMPLATCH Pin Header Vertical Black 26 P Headers & Wire Housings 26 POS HDR 30AU W/LONG LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileNumber of Positions = 26Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,26POS,2.54X2.54,PCB,VERTICAL A/L UNIV HDR 26P VERT LG LAT
2-5499141-6
te connectivity / amp

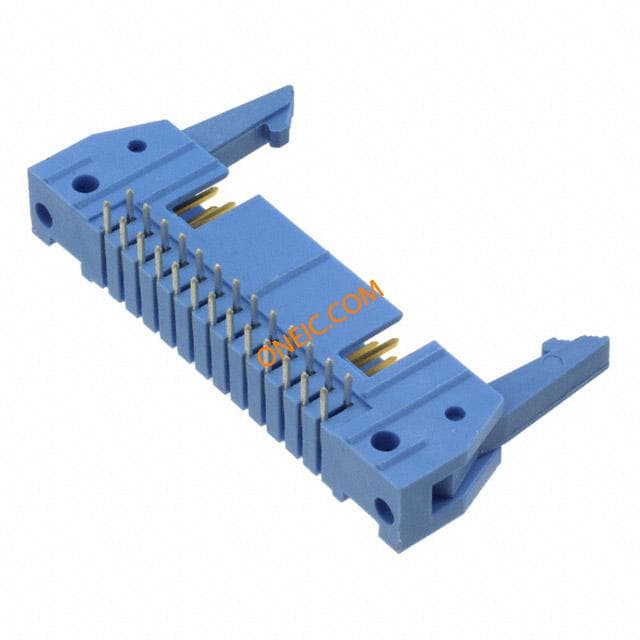

Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 26POS R/A POLAR GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 26 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings UNIV HDR 26P RA BLUE LARGE LATCH Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 26WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P RA LG LAT BLUE
2-5499141-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings A/L UNIV HDR 34P RA LG LAT BLUE TE Connectivity AMP LATCH Series 2.54mm Pitch 34 Way 2 Row Right Angle PCB Header, Solder Termination, 1A A/L UNIV HDR 34P RA LG LAT BLUE A/L UNIV HDR 34P RA LG LAT BLUE Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 34WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔
2-5499206-6
te connectivity / amp

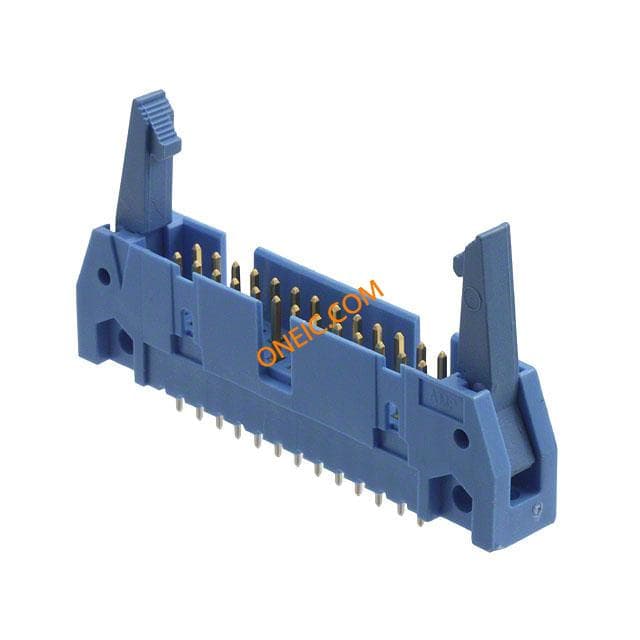

Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 26POS VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings .1CL IDC HDR 2X13P VRT EJE Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 26WAY 26waymalestraightsidelatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P VERT LG LAT BLUE
