1-1658526-6
| Manufacturer | |
| Description | Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RECEPT 26POS .100 30GOLD 26 Way HE10 Skt w/ Strain Relief Headers & Wire Housings IDC RCPT 26P W/STR RLF Conn IDC Connector F 26 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 26ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 26WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,26POSITION,MATINGPOLARIZATION TE Connectivity AMP-LATCH 609 系列 2行 26路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 609-2641LF FEM SOCKT,LEAD FREE |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - 609 Series | Voltage - Breakdown | :500V |
| Current Rating (Max) | 1A | Insulation Resistance | :1Gohm |
| Contact Rating (Current) | :1A | ||
Mechanical
| Color | Blue | Depth | 7.05 mm |
| Pitch | 2.54 mm | Height | 12.37 mm |
| Weight | 0.006 | Material | :Glass Feinforced Thermoplastic |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Cable Exit | With | Wire Gauge | 28-30 AWG |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Pitch - Post | :2.54mm |
| Polarization | Center & Military | 2nd Connector | Without |
| Housing Color | Blue | Mounting Type | No |
| Cable End Type | Without | Connector Type | AMP-LATCH |
| Contact Finish | Gold Over Nickel | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | Beryllium Copper |
| Housing Material | Thermoplastic Glass Reinforced | Length - Overall | 37.49 mm |
| Mounting Feature | Without | Primary Material | InterconnectSystem |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Mating Orientation | With |
| Number of Contacts | 26 | Contact Termination | :IDC / IDT |
| Number of Positions | 26 | Center Contact Material | 2.54 x 2.54 [.100 x .100] |
| Contact Finish Thickness | 30µin (0.76µm) | 1st Connector Mounting Type | :Cable |
Product Info
| Type | IDC Connector | Gender | F |
| Series | AMP-LATCH | Features | Polarizing Key, Strain Relief |
| Polarity | :Bump/Clip | Manufacturer | AMP-LATCH |
| Product Type | Receptacles / Sockets - Housings | Connection Type | Ribbon Cable |
| With Modem Control | Yes | ||
Environmental
| Mating Cycles | :200 | Operating Temperature | +125°C |
Documents & Media
Similar Parts
5102153-6
te connectivity / amp
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD Header; Universal Ejection Pin Header Headers & Wire Housings 26 POS HDR 15AU W/OUT LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile26 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM Header;UniversalEjectionPinHeader;26;0.100x0.100in.;Vertical(PCB) A/L UNIV HDR 26P VERT
5103308-6
te connectivity / amp
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 26POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X013P VERT LOW PROFILE Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, 2.54MM, 26WAY Header;Pin;Vertical;CopperAlloy;Thermoplastic;26;0.100x0.100in.;1A TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 26P VERT BLACK
5102160-6
te connectivity / amp
Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 26POS .100 GOLD Header; Universal Ejection Pin Header Headers & Wire Housings 26 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Header;UniversalEjectionPinHeader;26;0.100x0.100in.;RightAngle(PCB) Pin header DIN 41651 26P, 5102160-6, TE Connectivity A/L UNIV HDR 26P RA
2-1761605-9
te connectivity / amp
Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 26POS 30AU Headers & Wire Housings PIN HEADER 26 POS R/A LOW PROFILE Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 26WAY IDCHDRS7BOXNOEJ,IDCLOWPROHDR26PRABLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 26P RA BLUE
5499922-6
te connectivity / amp
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 15AU TE Connectivity 5499922 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 26 POS HDR 15AU W/LONG LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 26WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,26POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 26路 2.54mm节距 (2排) 直 PCB 针座 , 焊接端接, 1A, 通孔 A/L UNIV HDR 26P VERT LG LAT
2-1761603-9
te connectivity / amp
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 26POS 30AU TE Connectivity 2-1761603 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings IDC LOW PRO HDR 26P VERT BLUE Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 26WAY HEADER,PIN,IDC,AMP-LATCH,26POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:26; straight; THT; gold plated; 2.54mm TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 26P VERT BLUE
5499206-6
te connectivity / amp
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD AMPLATCH Pin Header Vertical Black 26 P Headers & Wire Housings 26 POS HDR 30AU W/LONG LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileNumber of Positions = 26Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,26POS,2.54X2.54,PCB,VERTICAL A/L UNIV HDR 26P VERT LG LAT
5102155-6
te connectivity / amp
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X013P VERT Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P VERT
5499141-6
te connectivity / amp
Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 26POS .100 GOLD TE Connectivity 5499141 Series 2.54mm Pitch 26 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 26 POS HDR 30AU R/A W/LONG LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile26 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,26POS,2.54X2.54,PCB,RIGHTANGLE TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P RA LG LAT
5102156-6
te connectivity / amp
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X013P VERT Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P VERT
5103309-6
te connectivity / amp
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 26POS GOLD Headers & Wire Housings HDR VERT DOUBLE 26P low profile Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM Header;Pin;Vertical;CopperAlloy;Thermoplastic;26;0.100x0.100in.;1A Pin header DIN 41651 26P, 5103309-6, TE Connectivity A/L LOW PRO HDR 26P VERT BLACK
5103311-6
te connectivity / amp
Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole CONN HEADER LOPRO R/A 26POS GOLD Headers & Wire Housings HDR R.A. DOUBLE 26P Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 26P RA BLACK
5102321-6
te connectivity / amp
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X013P VERT EJE Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,26POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 26P VERT LG LAT
5102154-6
te connectivity / amp
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 26POS .100 GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 26 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:With ContactsHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM Header;UniversalEjectionPinHeader;26;0.100x0.100in.;Vertical(PCB) Pin header DIN 41651 26P, 5102154-6, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P VERT
5499786-6
te connectivity / amp
Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings 26 POS HDR 15AU R/A W/LONG LATCHES Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 26POS .100 GOLD Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 26WAY A/L UNIV HDR 26P RA LG LAT
5102322-6
te connectivity / amp
Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 26POS .100 GOLD Headers & Wire Housings 26P UNIV HDR R/A LG LAT Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P RA LG LAT
2-5499206-6
te connectivity / amp
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 26POS VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings .1CL IDC HDR 2X13P VRT EJE Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 26WAY 26waymalestraightsidelatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 26P VERT LG LAT BLUE
2-111446-0
te connectivity / amp
Conn IDC Connector PL 26 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 26POS 30AU NO LATCH Ribbon cable conn.male,26 way,2.54mm,blk Headers & Wire Housings 100X100 I/O PLG 2X13P Conn IDC Connector PL 26 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 26PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, NO LATCH, 26WAY Ribboncableconn.male,26way,2.54mm,blk TE Connectivity AMP-LATCH 系列 2行 26路 2.54mm节距 直角 公 IDC 连接器 , 电缆安装 026 UNIV I/O 30DP NO EARS
1761603-9
TE Connectivity

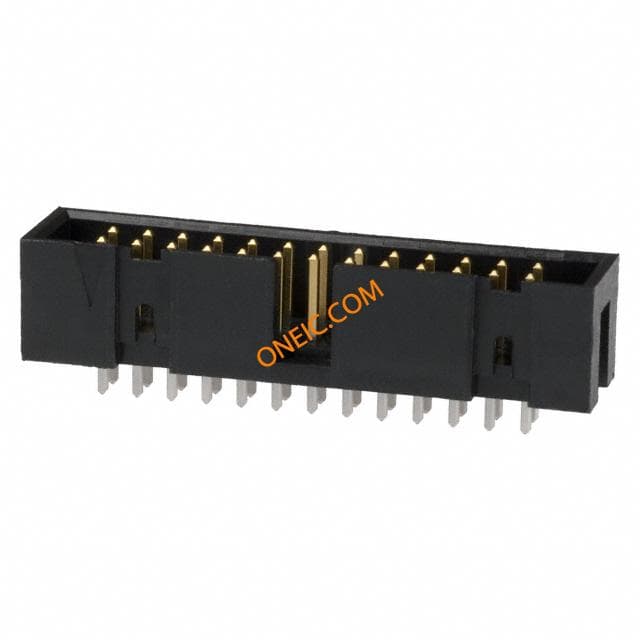

CONN HEADER LOPRO STR 26POS 30AU
1761605-9
TE Connectivity

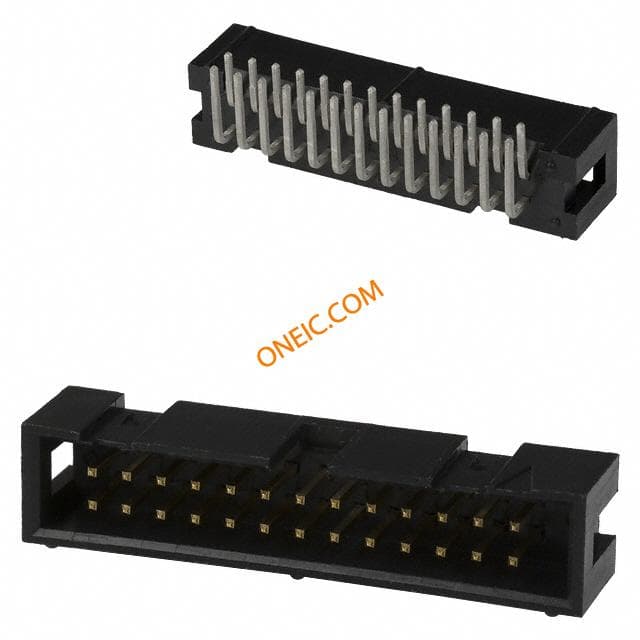

CONN HEADER LOPRO R/A 26POS 30AU
