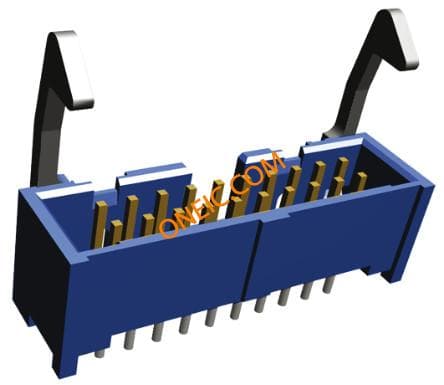

2-1761607-7
| Manufacturer | |
| Description | Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 20POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings IDC LOW PRO HDR 20P RA LARGE LATCH Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 20WAY 20waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 20P RA LG LAT |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 16 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Voltage Rating | 250 V ac |
| Switch Function | Ejection | Voltage - Breakdown | :500V |
| Current Rating (Max) | 1A | Insulation Resistance | :1Gohm |
Mechanical
| Color | Blue | Depth | :10.3mm |
| Pitch | 2.54 mm | Width | :33mm |
| Length | :9.2mm | Weight | 0.004 |
| Material | :Glass reinforced thermo plastic | Packaging | Tube |
| Shrouding | Yes | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2.54mm | Pitch - Post | 2.54 x 2.54 [.100 x .100] |
| Polarization | Center, Military | 2nd Connector | Without |
| Contact Shape | Square | Housing Color | Blue |
| Mounting Type | Right Angle | Connector Type | Pin Header |
| Contact Finish | Gold Over Nickel | Fastening Type | Latch Lock/Eject Hooks |
| Number of Rows | 2 | Package / Case | 4-Sided |
| Profile (W x H) | Low | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Length - Overall | 3.81 [0.150] |
| Primary Material | IndustrialRectangular | Size / Dimension | 0.64 [.025] |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Mating Orientation | With | Number of Contacts | 20 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 20 |
| Mounting Hole Diameter | :0.9mm | Contact Length - Mating | 0.237" (6.02mm) |
| Termination Post Length | 2.60 [0.102] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | AMP LATCH | Polarity | :Bump/Clip |
| CAD Drawing | 3D CAD Model | Manufacturer | AMP-LATCH |
| Product Type | Headers | Other Specifications | With |
| Number of Positions Loaded | All | ||
Environmental
| Mating Cycles | :200 | Temperature Rating | Standard |
| Operating Temperature | :105°C | ||
