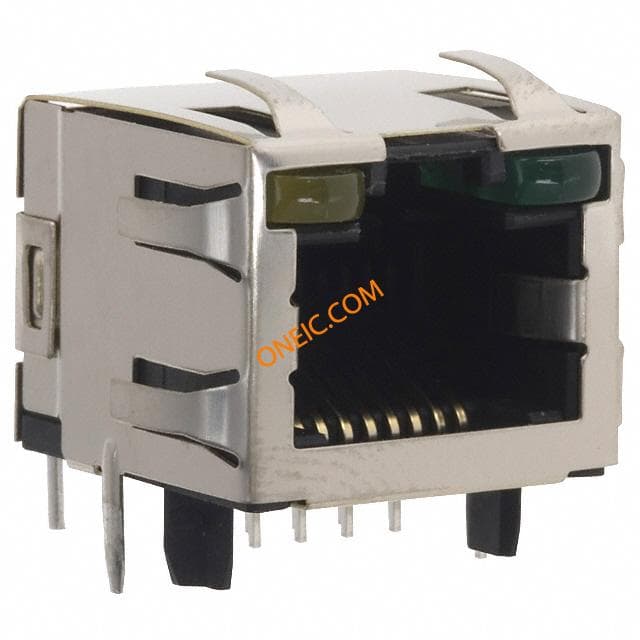

2-406549-1
| Manufacturer | |
| Description | Conn RJ-45 F 8 POS 2.03mm Solder RA Thru-Hole 12 Terminal 1 Port Tray Cat 5 PCB Mounted Jacks - Single Port, Multi-port and Stacked CONN MOD JACK R/A 8P8C SHIELDED Modular Connectors / Ethernet Connectors 8 POS RJ45 LED G/Y RIGHT ANGLE Conn RJ-45 F 8 POS 2.03mm Solder RA Thru-Hole 12 Terminal 1 Port Tray Cat 5 Product Highlights:JackSingle Port Configuration1 x 1 Jack ConfigurationJack Type = RJ45Number of Positions = 8Search Keywords:FCC Part 68, REA PE-76, UL 1863, Communication Circuit Accessories, near end crosstalk (NEXT), EIA/TIA 568A, modular jacks, phone jacks, input/output, box to box, pcb mounted jacks, VAO MODULAR, JACK, THT, R/A, LED, RJ45, 8P8C CAT5 RJ45 MODULAR JACK, 8POS, 1 PORT ModJack;RightAngle;8Position;Cat5;ShieldedwithLED Socket; RJ45; PIN:8; Cat:5; shielded, with LED; gold plated; THT TE Connectivity 直角 母 RJ45 模块化插孔 , Cat5, 无屏蔽, 印刷电路板安装型 IMJ,1X1,PNL GRD,LED(G/Y), SN |
| Category |
Business
| Part # Aliases | CA8679-000 PER-2-406549-1 | Product Category | Modular Connectors / Ethernet Connectors |
| Standard Package | Trays | Factory Pack Quantity | 441 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | Approval Agency | UL,CSA |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| LED | With | Ethernet | Cat 5 |
| Voltage Rating | 150 V | Voltage - Supply | :Cat 5 |
| Dielectric Strength | :1000V | Voltage - Breakdown | :1000VAC |
| Current Rating (Max) | 1.5 A | Insulation Resistance | :500Mohm |
| Voltage - Supply (Min) | 150VAC | Connector - Voltage Input | :Cat5 |
Mechanical
| Color | Black | Depth | 15.75 mm |
| Pitch | 2.03 mm | Height | 14.54 mm |
| Weight | 0.004 | Material | :High Temperature Thermoplastic |
| LED Color | None | Packaging | Tray |
| Shielding | Shielded, EMI Finger | Orientation | 90° Angle (Right) |
| Shield Type | Yes | Termination | Solder |
| Housing Color | Black | Inverted Jack | Yes |
| Mounting Type | Through Hole | Shell Plating | Tin |
| Tab Direction | Up | Angle of Throw | Right |
| Connector Type | -3.43 [-0.135] | Contact Finish | Matte Tin over Nickel |
| Flange Feature | No | Grounding Type | Panel Ground and PCB Ground |
| Mounting Style | Thru Hole | Number of Rows | 1 |
| Board Thickness | 1.57 [0.062] | Height (Inches) | 13.34 [0.525] |
| Profile (W x H) | Standard | Shield Material | Copper Alloy |
| Contact Material | Phosphor Bronze | Housing Material | High Temperature Thermoplastic |
| Length - Overall | 17.27 mm | Package Quantity | Tray |
| Panel Mount Type | With | Primary Material | Modular |
| Connector - Cable | socket | Termination Style | Solder |
| Color - Connectors | :Black | Number of Contacts | 8 |
| Panel Cutout Shape | Top, Top and Side | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 8 | Cable Length - Unexposed | 2.54 [0.100] |
| Contact Finish Thickness | 50µin (1.27µm) | Contact Material - Plating | gold plated |
| Material - Housing & Prism | :Polyester (PCT) | 1st Connector Mounting Feature | 8p8c |
Product Info
| Spg | 1 | Mode | Single |
| Note | Recommended applications: Fast Ethernet, 10Base-T Ethernet, and 10/100 Base-T E | Type | RJ-45 |
| Gender | F | Series | 406 |
| Features | Board Guide | Port Style | Single |
| USOC Codes | RJ45 | Performance | Cat5 |
| Coded, Keyed | No | Product Type | Jack |
| Specifications | RJ45 | Category Number | Cat 5 |
| Number of Ports | 1 | Number of Units | 1 |
| Jack Configuration | 1 x 1 | RF Family/Standard | 406549 |
| Performance Category | Cat 5 | Number of Positions Loaded | 8 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | ||
Environmental
| Ratings | Cat5 | Mechanical Life | :750 mating cycles |
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts
2-406549-1
te connectivity / amp
Conn RJ-45 F 8 POS 2.03mm Solder RA Thru-Hole 12 Terminal 1 Port Tray Cat 5 PCB Mounted Jacks - Single Port, Multi-port and Stacked CONN MOD JACK R/A 8P8C SHIELDED Modular Connectors / Ethernet Connectors 8 POS RJ45 LED G/Y RIGHT ANGLE Conn RJ-45 F 8 POS 2.03mm Solder RA Thru-Hole 12 Terminal 1 Port Tray Cat 5 Product Highlights:JackSingle Port Configuration1 x 1 Jack ConfigurationJack Type = RJ45Number of Positions = 8Search Keywords:FCC Part 68, REA PE-76, UL 1863, Communication Circuit Accessories, near end crosstalk (NEXT), EIA/TIA 568A, modular jacks, phone jacks, input/output, box to box, pcb mounted jacks, VAO MODULAR, JACK, THT, R/A, LED, RJ45, 8P8C CAT5 RJ45 MODULAR JACK, 8POS, 1 PORT ModJack;RightAngle;8Position;Cat5;ShieldedwithLED Socket; RJ45; PIN:8; Cat:5; shielded, with LED; gold plated; THT TE Connectivity 直角 母 RJ45 模块化插孔 , Cat5, 无屏蔽, 印刷电路板安装型 IMJ,1X1,PNL GRD,LED(G/Y), SN
336330-1
te connectivity / amp
Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Carton Cat 5 Modular Plugs and Accessories CONN MOD PLUG 8P8C SHIELDED Shielded Cat5 RJ45 EMT modular data plug Modular Connectors / Ethernet Connectors MOD PLUG KIT 8W SHLD Conn Modular Plug PL 8 POS 1.02mm Crimp ST Cable Mount 8 Terminal 1 Port Carton Cat 5 Product Highlights:PlugNumber of Positions = 8Shielded8 Contacts LoadedCable Style = Round StrandedSearch Keywords:FCC Part 68, EIA/TIA 568A, mass termination, NIC, Network Interface Cards, PC Cards, input/output, box to box, PLUG, RJ45, EMT ShieldedCat5RJ45EMTmodulardataplug Plug; RJ45; PIN:8; Cat:5e; shielded; gold plated; Pin layout:8p8c

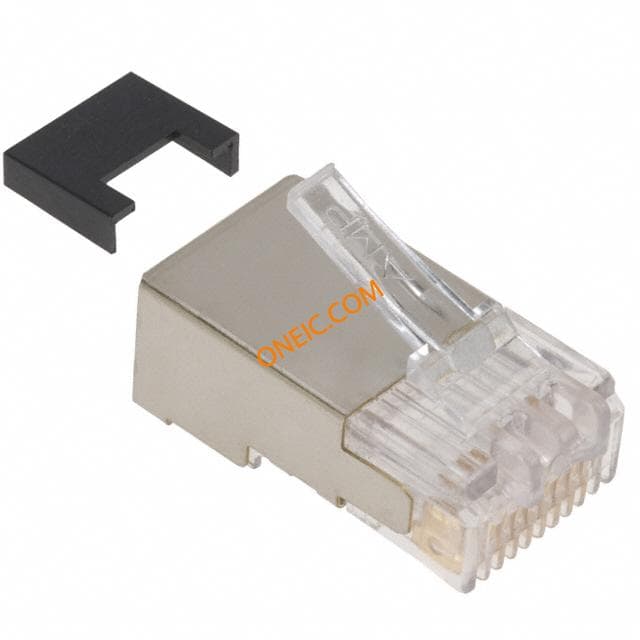

5-569552-3
